Grass Trimmer/Brush CuTTer
21
OperaTOr's manual

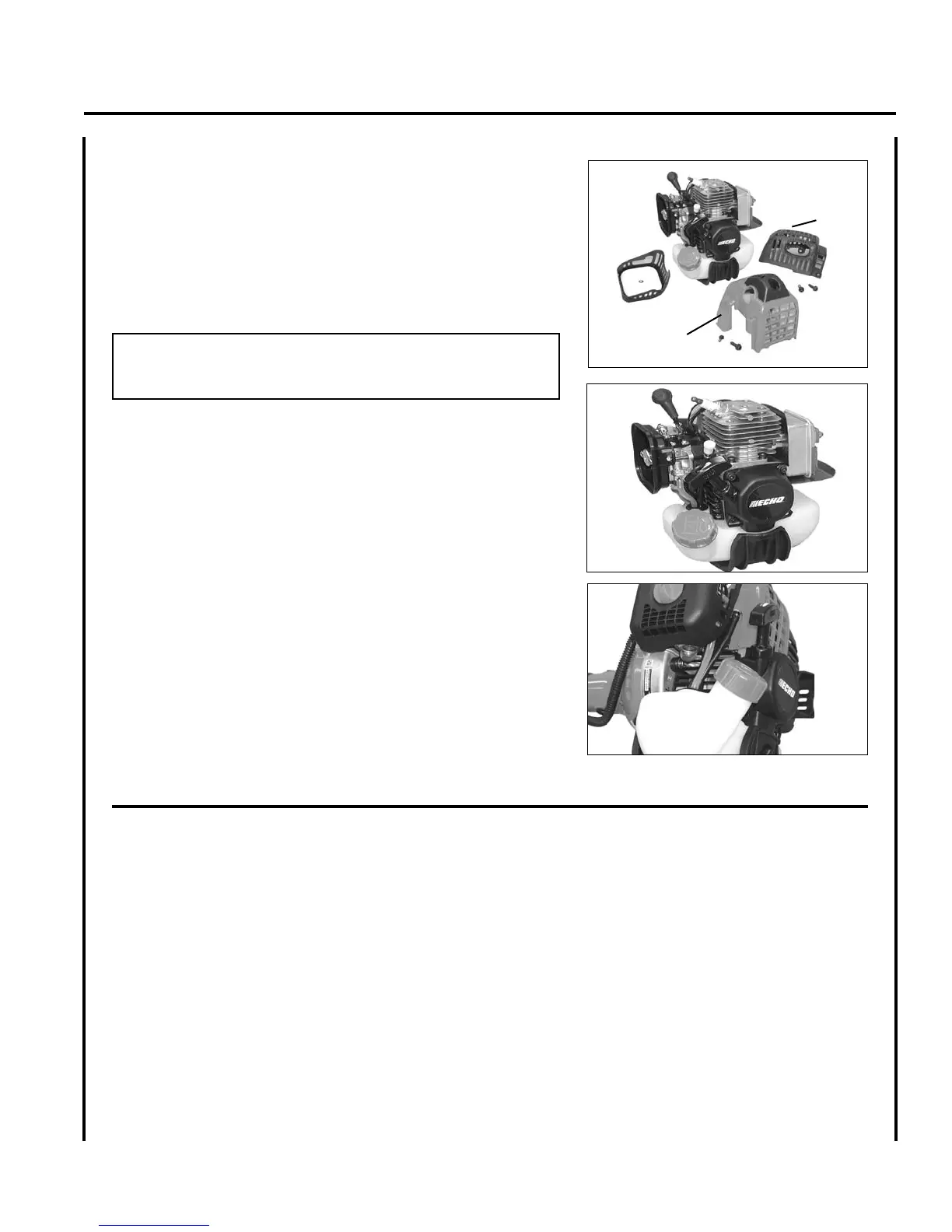

1. Remove spark plug lead.
2. Remove air cleaner cover.
3. Remove 2 mufer cover screws and mufer cover (A).
4. Remove 2 engine cover screws and engine cover (B).
IMPORTANT
DO NOT use a metal scraper to remove dirt from the cylinder ns.
5. Use brush to remove dirt from the cylinder ns.
6. Remove grass and leaves from the grid between the recoil starter
and fuel tank.
7. Assemble components in reverse order.
eXhaust system
Spark Arrestor Screen
Level 2.
Parts Required: Spark Arrestor Screen, Gasket
A
B
