SERVICE INFORMATION
GT-220ES
SRM-220ES
6
Ignition Air Gap Gauge
#.014 = .35mm
P/N 91004
ECHO
0
0.4
50
0.8
1.2
1.
MPa
0
Key Part Number Description Used for:
1 897801-33330 Tachometer PET-1000 Measuring engine speed
2 363018-00310 Washer Installing crankcase oil seal of starter side
3 895610-79920 L-hex wrench (4 mm) Removing and installing hex. socket bolts (M5)
4 897603-23030 PTO shaft puller Removing driven (PTO) shaft
5 897701-06030 Bearing wedge Removing ball bearings on crankshaft
6 897701-14732 Bearing tool Removing and installing crankcase ball bearings
7 897702-30131 Piston pin tool Removing and installing piston pin (Use 8 mm dia. adapter.)
8 897705-11520 Bearing tool Removing and installing con-rod small end needle bearing
9 897712-04630 2-pin wrench Removing and installing pawl carrier
10 897726-09130 Oil seal tool Installing crankcase oil seals
11 897800-79931 Spark tester Checking ignition system
12 897803-30131 Pressure tester Checking carburettor and crankcase leakages
13 897835-16131 Pressure connector Checking crankcase and cylinder leakages
14 433019-12330 Flange nut Removing magneto rotor (fl ywheel)
15 900100-08008 Bolt Removing magneto rotor (fl ywheel)
16 91020 Limiter plug tool Removing and installing plug
17 91037 Compression gauge Measuring cylinder compression
18 91004 Module air gap gauge Adjusting pole shoe air gaps

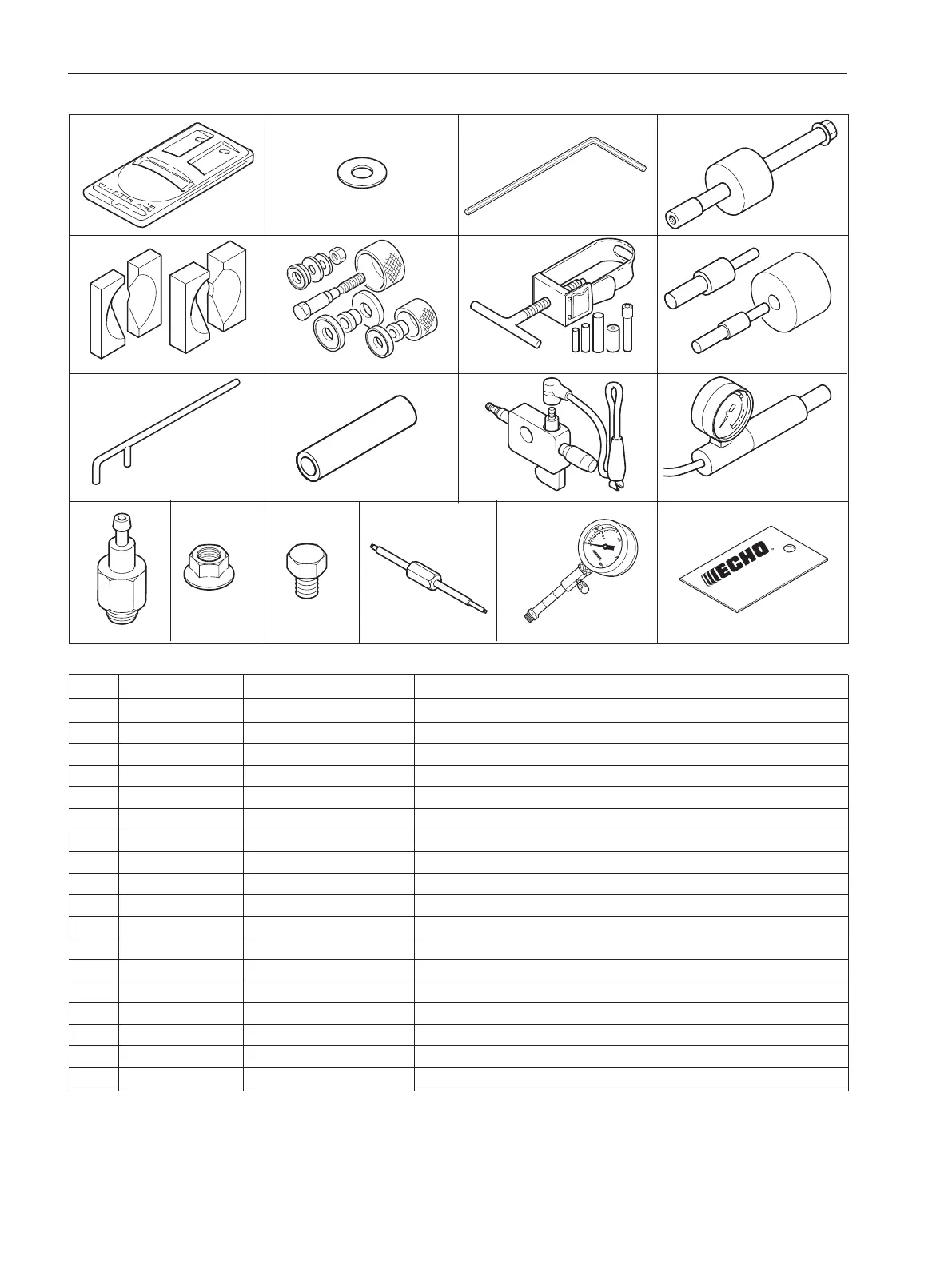

1-6 Special tools
1
6
14
7
17
3
8
10
5
9
12
13
11
2
4
15
18
16
