12

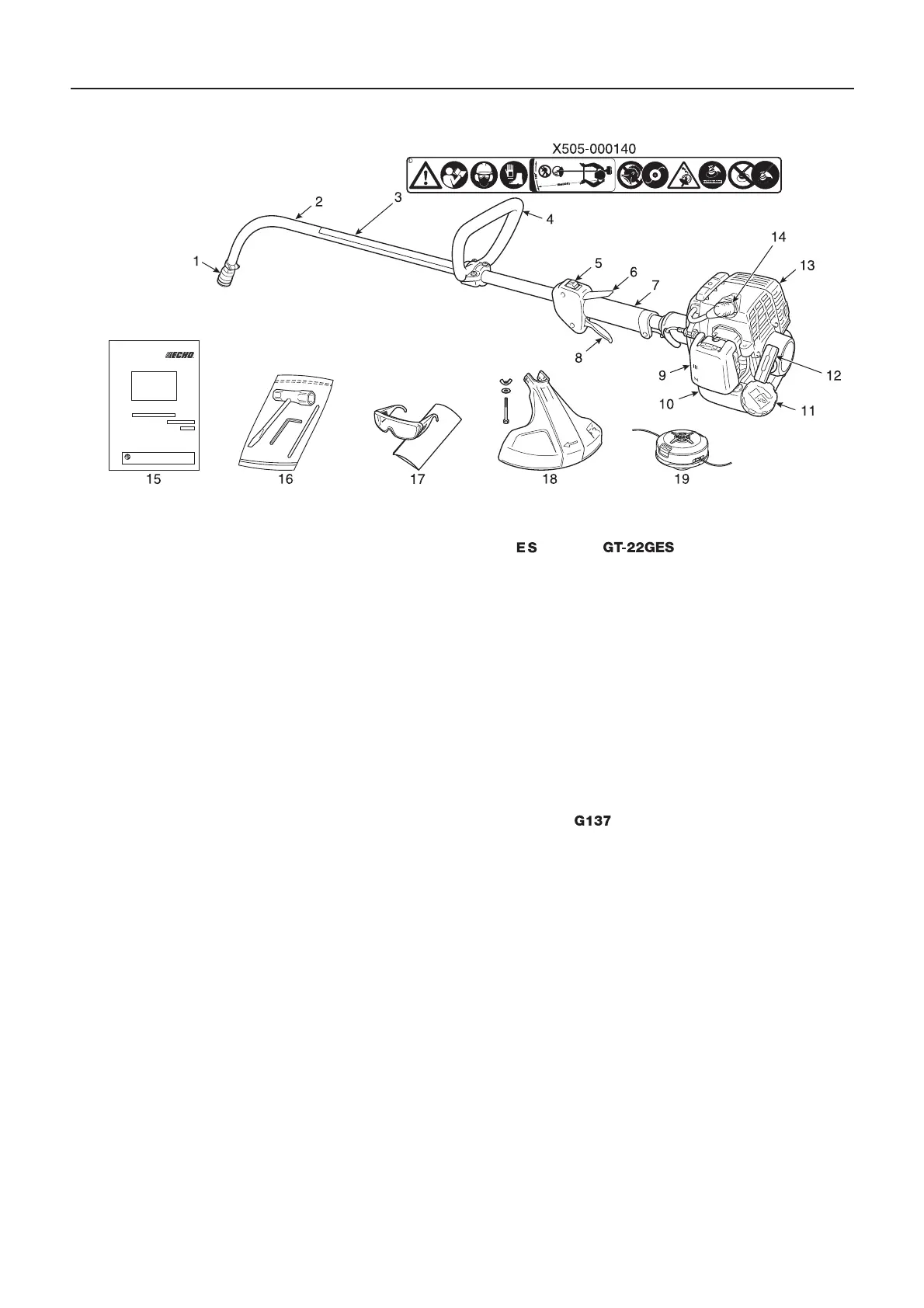

Description
1. Bearing housing
2. Shaft tube - Part of the unit that provides a casing for
power transmission shaft.
3. Safety decal - Part number X505-000140
4. Front (loop) handle - Light weight, suitable for nylon line
trimmer only.
5. Ignition switch - "Slide switch" mounted on top of the
throttle trigger housing, move switch forward to RUN,
backward to STOP position.
6. Throttle trigger lockout - Locks throttle trigger in the
idling position until you have a proper grip with your right
hand around the handle.
7. Grip - Rear (right hand) handle.
8. Throttle trigger - Activated by the operator's finger for
controlling the engine speed.
9. Air cleaner cover - Covers air filter.
10. Fuel tank - Contains fuel and fuel filter.
11. Fuel tank cap - For closing the fuel tank.
12. Starter handle - Pull handle to start the engine.
(" " START)
13. Silencer cover - Cover the silencer not to make operator
touch to hot surface of silencer.
14. Spark plug
15. Operator's Manual - Included with unit.
Read before operation and keep for future reference to
learn proper, safe operating techniques.
16. Tools - 13 x 19 mm T-wrench (combination screwdriver
/ spark plug socket), 4 mm hexagonal wrench and bar
tool.
17. Goggles
18. Shield - Device to protect the operator from accidental
contact with the cutting head and thrown objects.
Cut off knife; Cut nylon line to adjust line length to proper
swath.
19. Cutting attachment - Nylon line head for cutting grass
and weed.
