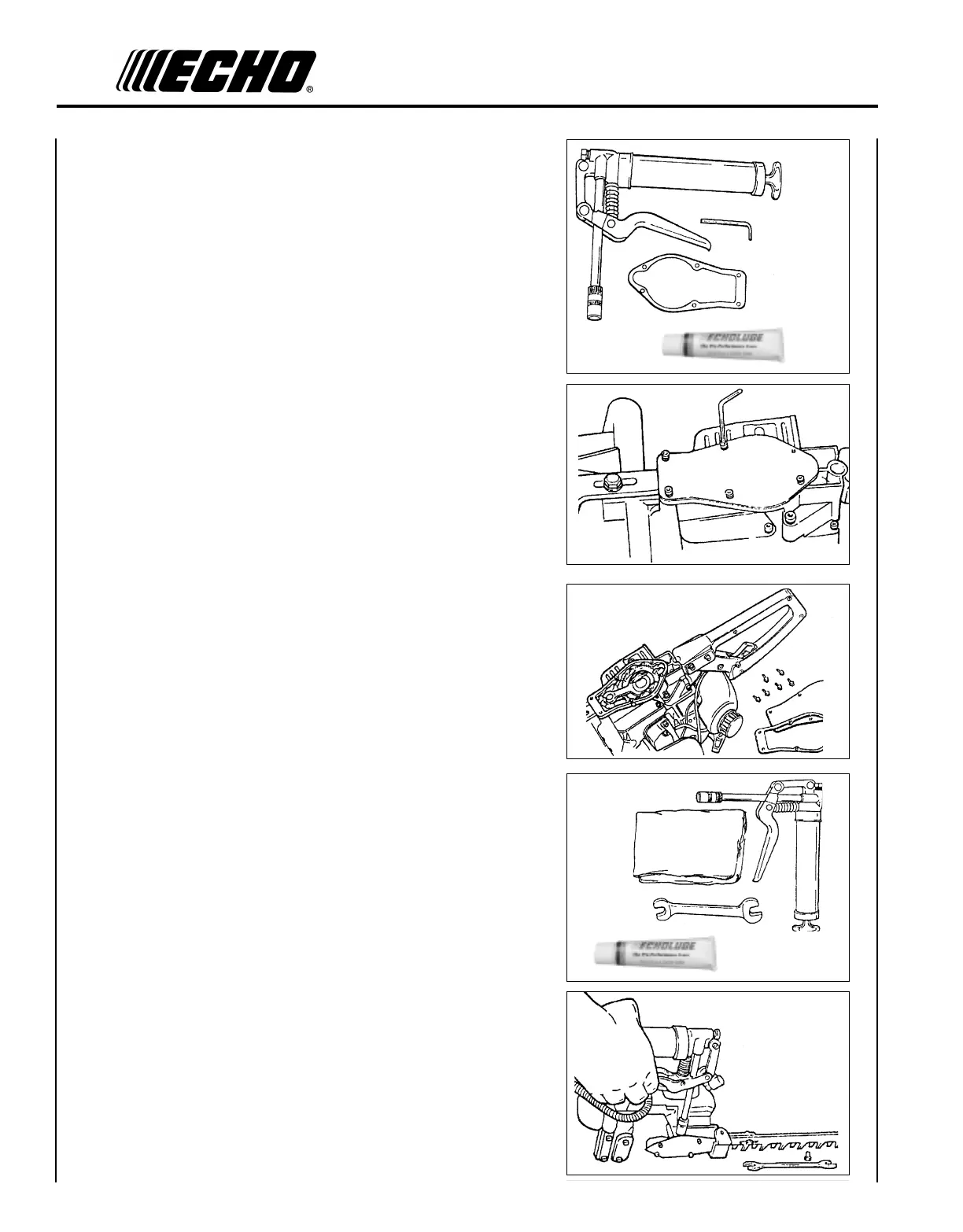

Gear Box Assembly
Level 2.
Tools required: 3 mm Hexagon wrench, Grease Gun
Parts Required: Gear Box Gasket, HC-2400 P/N 61041401260,
HC-1500 2E P/N 61041406560,
Others P/N 61041405360,
ECHO
®
LUBE
TM
8 oz. (P/N 91014) or Lithium Based
Grease.
HC-1500 Type 1, Type 1E
1. Clean debris and dirt from gear box area. Remove the six (6) socket
head cap screws retaining the gear box cover plate.
2. Remove cover plate and discard gasket.
3. Add grease as required,
DO NOT over fill. Leave room for the
grease to expand during operation.
HC-1600, 2000 (All)
Level 1.
Tools required: 13mm Open End, Grease Gun
Parts required: ECHO
®
LUBE
TM
8 oz. (P/N 91014) or Lithium Based
Grease.
1. Clean dirt from filler plug area and remove plug.
2. Carefully pump grease into hole.
DO NOT force grease. Too
much pressure will force grease past seals and cause damage.
3. Wipe excess grease from gear box and replace the filler plug.
