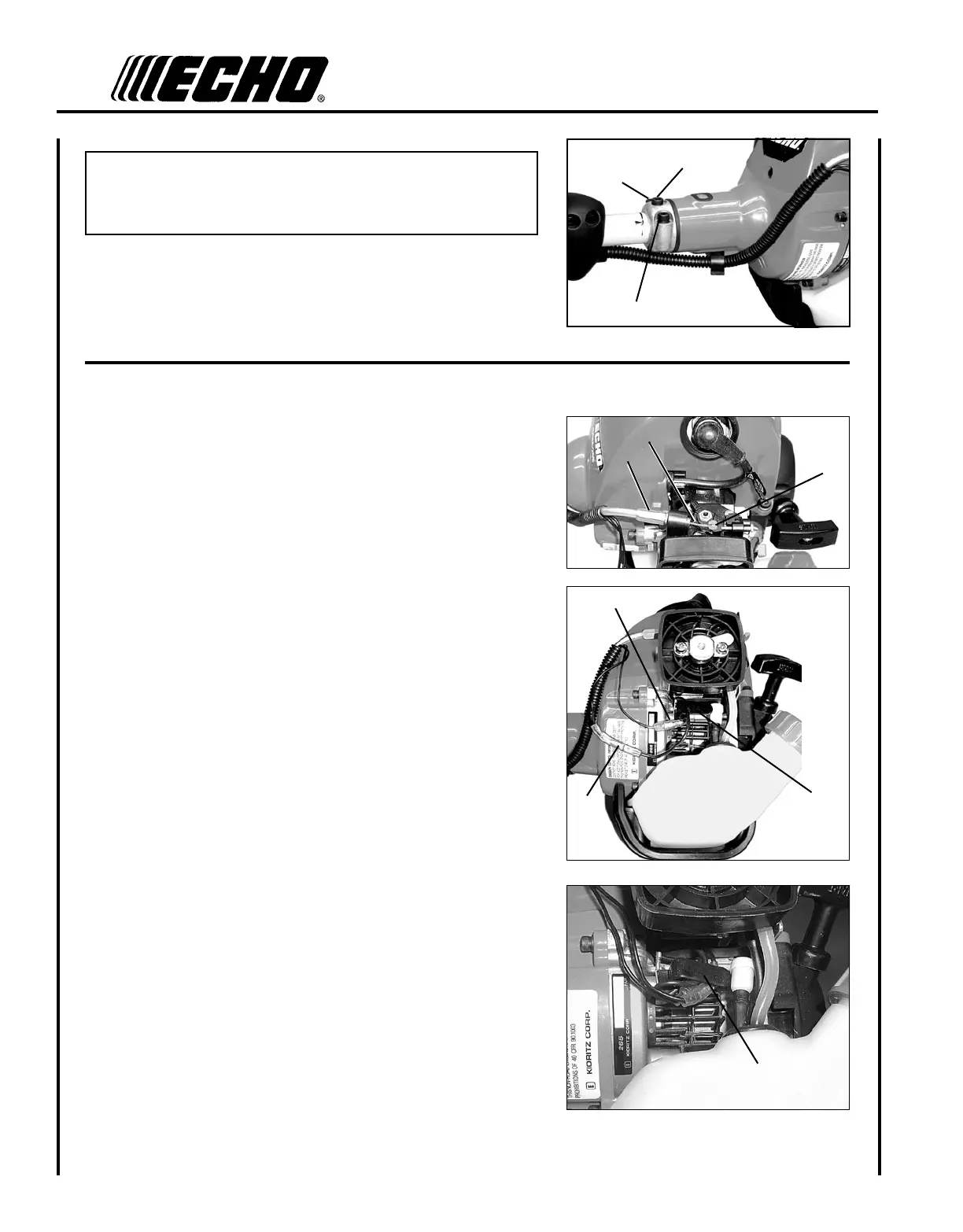

5. Tighten two (2) drive shaft clamp bolts (B) securely.
6. Route throttle linkage and ignition lead assembly along shaft and
clip as shown.
B
B
t h r o t t l e l I n k a g e a n d I g n I tI o n l e a d s
1. Close choke and remove air lter cover.
2. Place throttle linkage (C) through adjustment xture (D) and install
wire end into large carburetor throttle swivel hole (E). Check
throttle for freedom of movement and that wide open throttle / low
idle extremes are adjusted properly. The throttle linkage must be
adjusted by moving the adjustment xture (D). Consult with your
Echo Dealer for correct adjustment procedure.
3. Connect 2 ignition stop leads (F, G) from throttle cable tubing to 2
ignition leads (F, G) on engine.
4. Secure ignition leads against engine housing with clip (H).
5. Install air lter and cover.
C
D
F
G
H
E
A
H
NOTE
Gear Housing must be aligned properly with engine. Aligning cen-
ter locating hole in driveshaft housing with center drive shaft bolt
(A) provides correct alignment.
