Echo PB-2100 Service Data

SERVICE INFORMATION
PB-2100
PB-2155
PB-2200SI
5
5K193 5K228 5K229 5K230
5K231 5K016
5K171
5K042 5K194

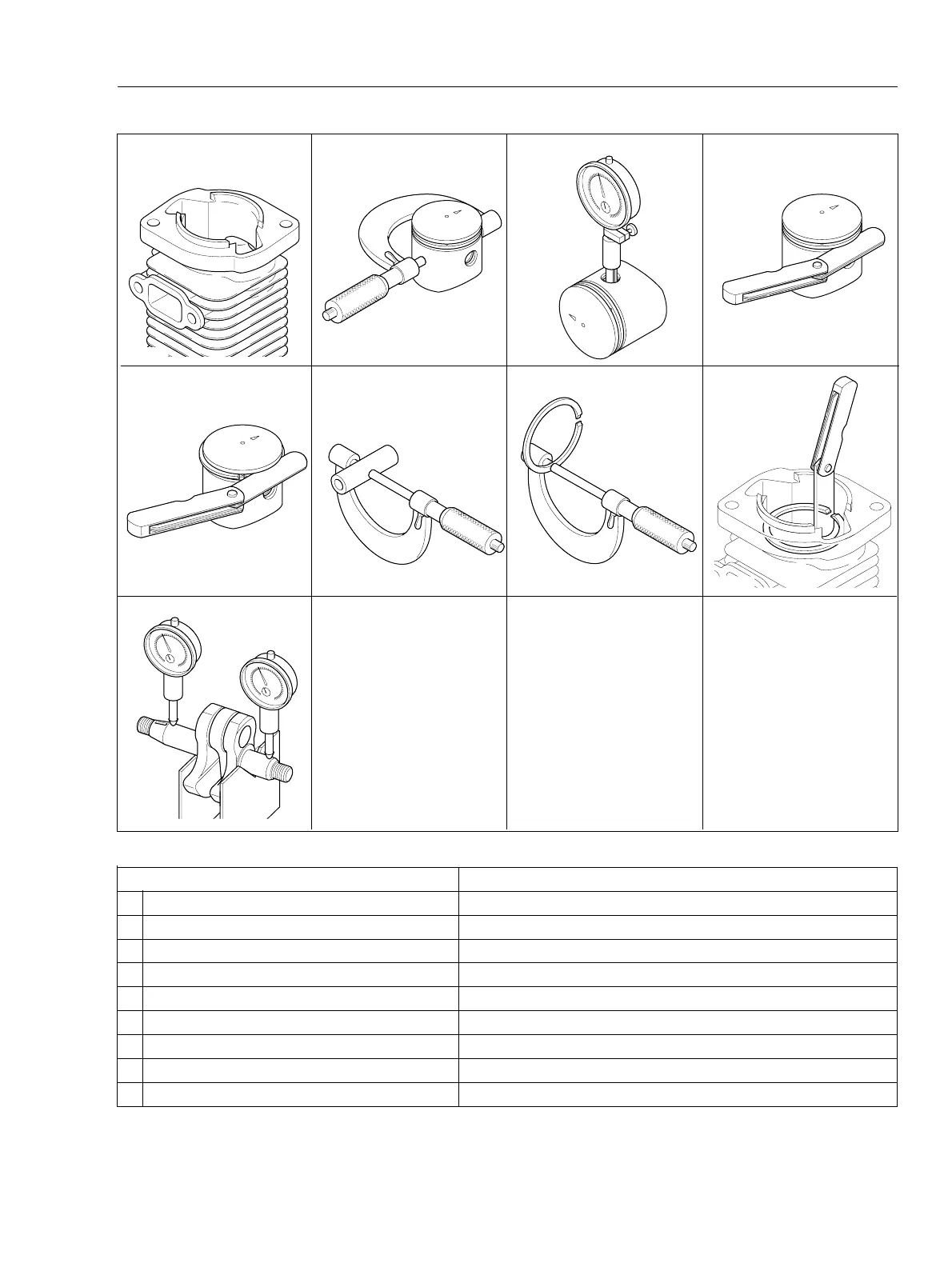

1-5 Service Limits
Description
A Cylinder bore When plating is worn and aluminium can be seen
B Piston outer diameter Min. 32.13 (1.265)
C Piston pin bore Max. 8.030 (0.3161)
D Piston ring groove Max. 1.6 (0.063)
E Piston ring side clearance Max. 0.1 (0.004)
F Piston pin outer diameter Min. 7.970 (0.3138)
G Piston ring width Min. 1.45 (0.057)
H Piston ring end gap Max. 0.5 (0.02)
K Crankshaft runout Max. 0.05 (0.002)
ABCD
FGH
K
E

Echo PB-2100 Specifications

General

Type	Handheld
Power Source	Gasoline
Engine Displacement	21.2 cc
Fuel Tank Capacity	13.5 fl oz
Sound Pressure Level	70 dBA
