SERVICE INFORMATION
PB-2100
PB-2155
PB-2200SI
6
2
0
20
4
0
40
6
0
60
8
0
80
12
0
120
1
4
0
140
1
6
0
160
1
8
0
180
2
0
20
1
0
0
100

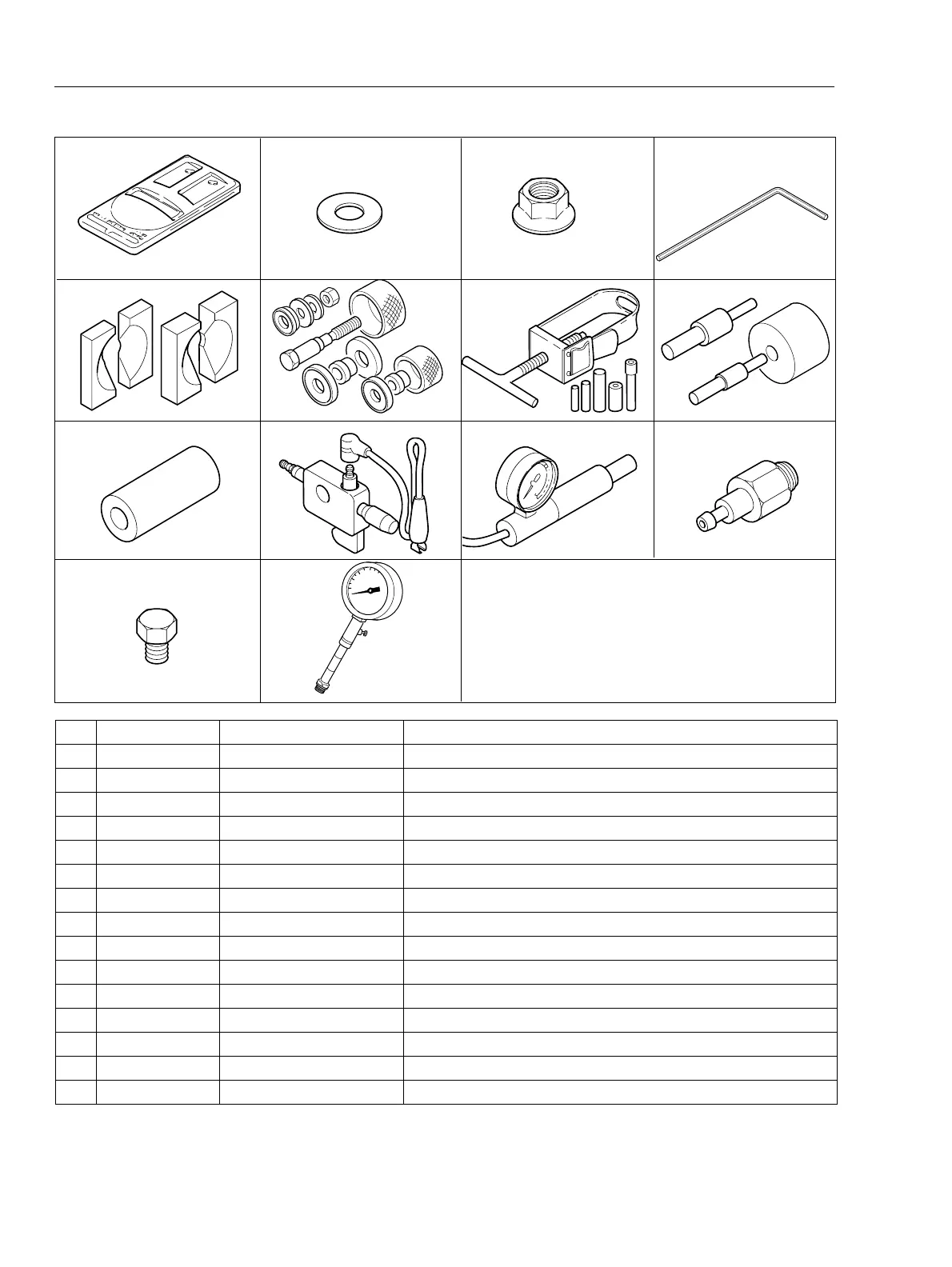

1-6 Special tools
1
4
5
2
6
9
10 11 1312
14 15
3
8
Key Part Number Description Used for:
1 897801-33330 Tachometer PET-1000 Measuring engine speed to adjust carburettor
2 363018-00310 Washer Installing crankcase oil seal of starter side
3 433019-12330 Flange nut Removing magneto rotor (flywheel)
4 895612-79920 L-hex wrench (3 mm) Removing and installing hex. socket bolt (M4)
5 895610-79920 L-hex wrench (4 mm) Removing and installing hex. socket bolt (M5)
6 897701-06030 Bearing wedge Removing and crankshaft ball bearings
7 897701-14732 Bearing tool Removing and installing crankcase ball bearings
8 897702-30131 Piston pin tool Removing and installing piston pin
9 897705-11520 Bearing tool Removing and installing con-rod small end needle bearing
10 897714-24330 Oil seal tool Installing oil seals
11 897800-79931 Spark tester Checking ignition system
12 897803-30132 Pressure tester Testing carburettor and crankcase leakage
13 897835-16131 Pressure connector Checking crankcase and cylinder leakages
14 900100-08008 Bolt Removing magneto rotor (flywheel)
15 91007 Compression gauge Measuring cylinder compression
a = 3 mm
a = 4 mm
7
