22
Pawl
Notch
(A)

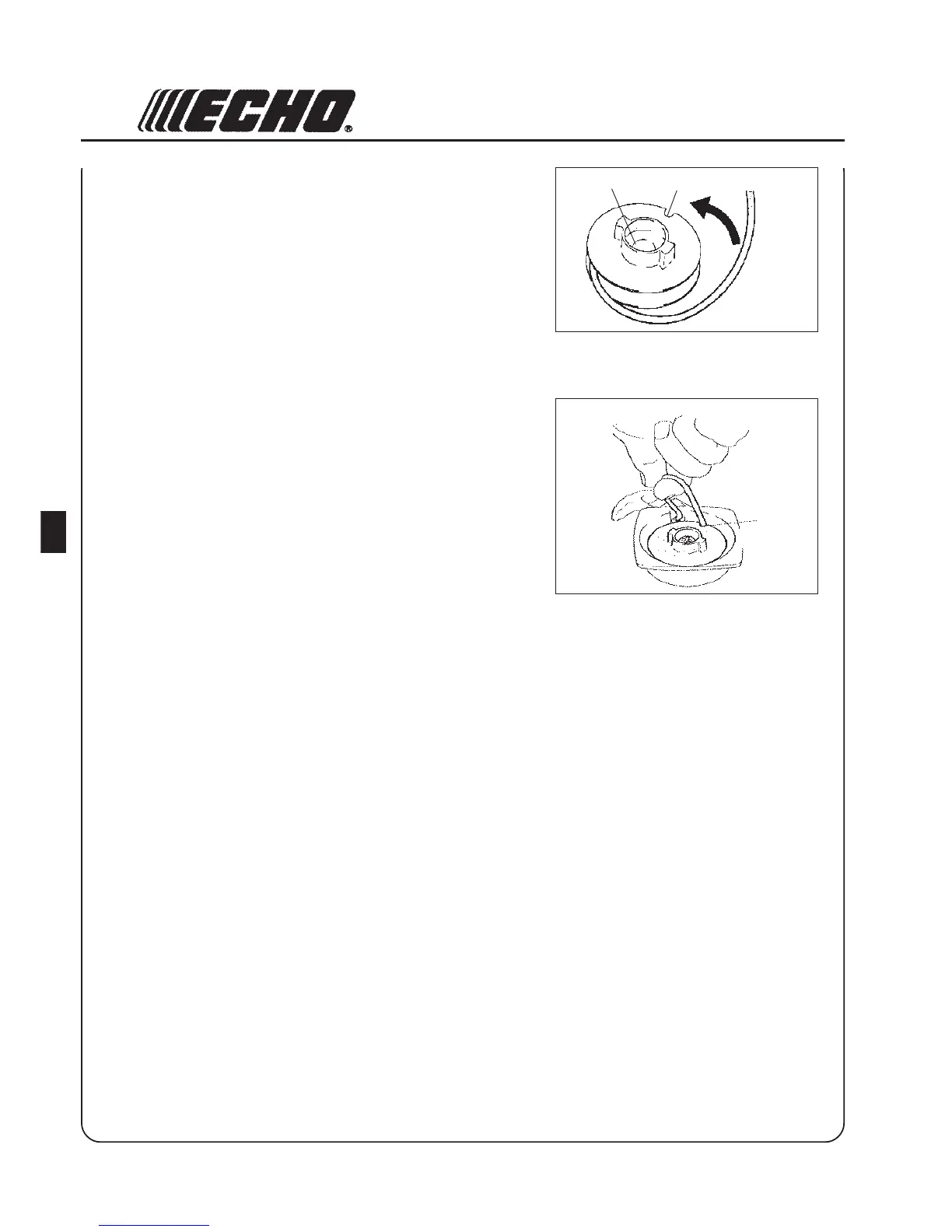

8. Hold the drum pawl side up and wind the rope on the drum
anticlockwise, four (4) turns.
9. Install drum. The loop in the spring must engage the slot in the
drum. Replace the screw and washer.
10. Hold the rope in the notch and rotate the drum anticlockwise
several turns.
11. Hold the drum to prevent it from rewinding, pull the excess rope
taught with the handle and allow to rewind slowly.
12. Pull rope several times to check spring tension. If rope does not
rewind fully, repeat 10.
13. Pull rope out all the way. Drum must be able to turn an additional
1/2 turn anticlockwise. If drum does not turn, see your Authorized
ECHO Service Dealer.
14. Install starter and test.
