POWER BLOWER
OPERATOR'S MANUAL

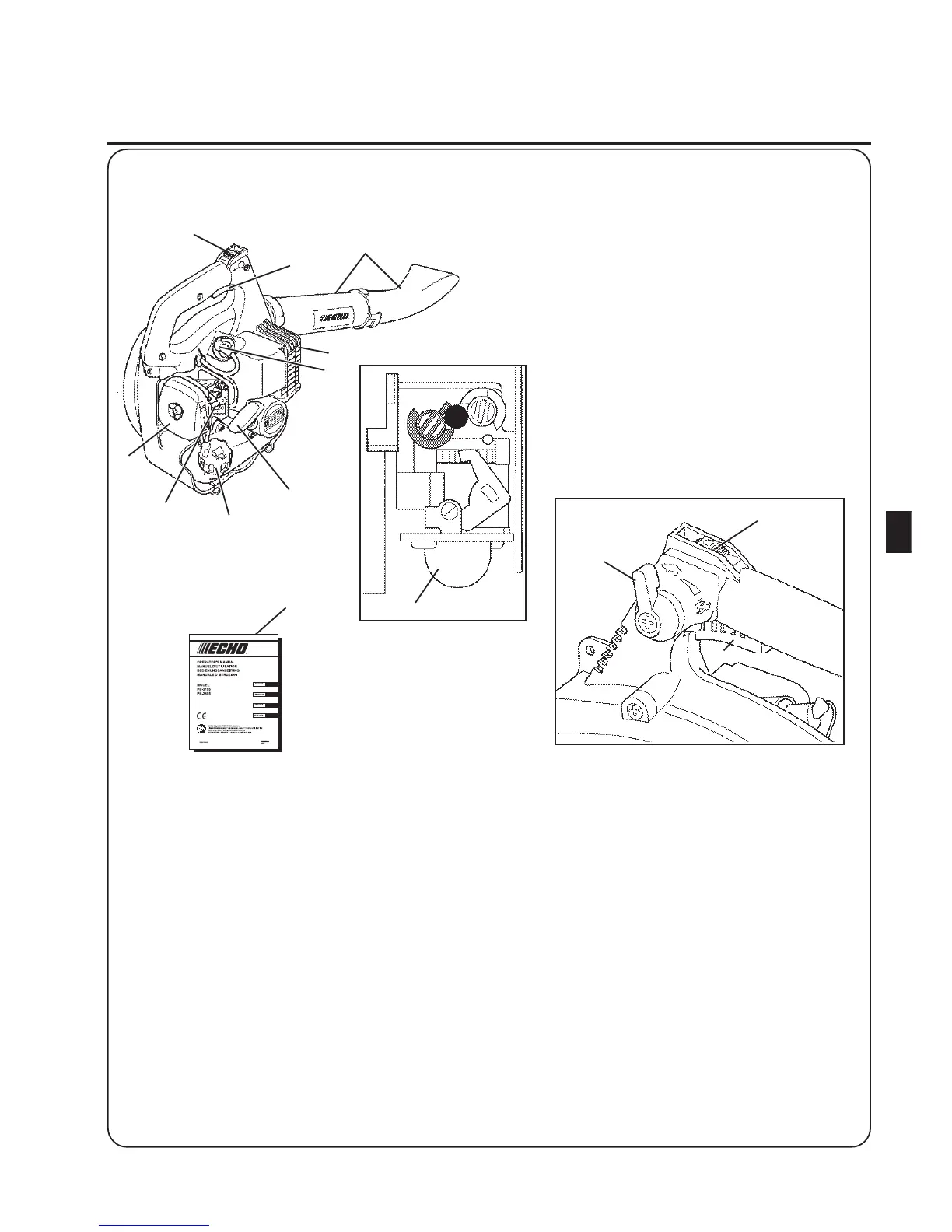

1. SPARK PLUG - Provides spark to ignite fuel mixture.
2. THROTTLE POSITION LEVER - Pull back to increase engine speed. Friction washers maintain throttle trigger
setting.
3. MUFFLER/SPARK ARRESTER - The spark arrester muffler controls the exhaust noise while the spark arrester
prevents hot, glowing particles of carbon from leaving the muffler.
4. FUEL TANK CAP - For closing the fuel tank.
5. CHOKE LEVER - Lever is located on right side of the air cleaner. Move lever DOWN to close choke (starting
position) and for emergency stopping. Lift up to open choke (run position).
6. AIR CLEANER - Contains replaceable felt element.
7. IGNITION SWITCH - "SLIDE SWITCH" mounted on top of handle. Slide forward to start and run. Slide back to
stop.
8. THROTTLE TRIGGER - Spring loaded to return to idle when released if throttle position lever is not engaged.
9. BLOWER PIPES - Twist lock design.
10. STARTER HANDLE - Pull handle to start the engine. DO NOT let handle snap back or damage to unit will occur.
11. PURGE BULB - Pumping purge bulb before starting draws fresh fuel from fuel tank to carburettor replacing air and
old fuel. Before starting, pump repeatedly (normally 3-4 times) until fuel is visible in "Clear" fuel return line.
12. OPERATOR'S MANUAL - Included in plastic bag (co-pack). Read before operation and keep in a safe place for
future reference, i.e., operation, maintenance, storage and specifications.
1
4
7
8
9
10
2
7
8
11
6
5
5
3
12
DESCRIPTION
CONTENTS
1- Power Head
1- Blower Pipe Assembly
1- Plastic Bag
1- Operator's Manual
