ASSEMBLY PB-770 H/T
ASSEMBLY
PB-770 H
Never perform maintenance or assembly procedures with engine running or serious personal injury
may result.

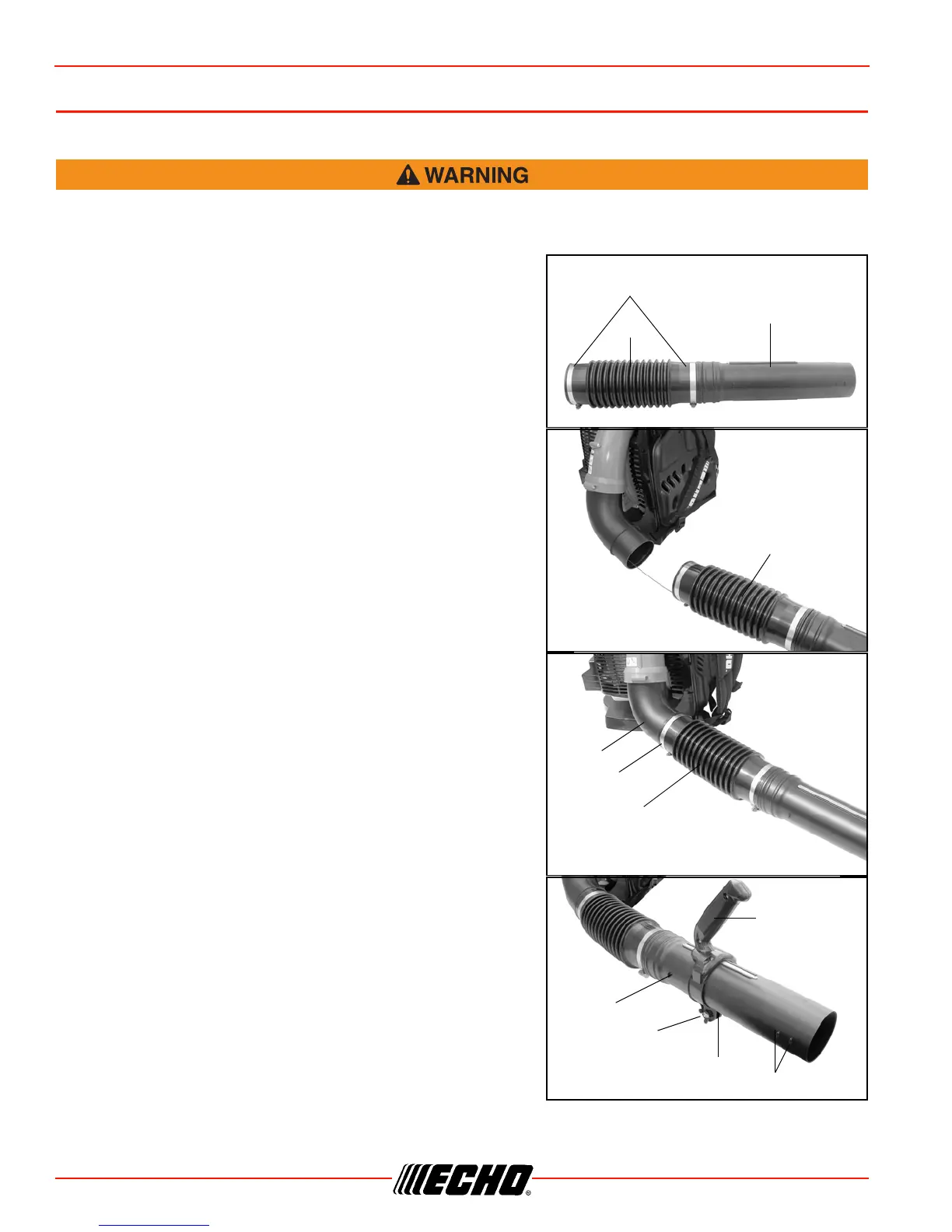

Install Blower Pipes/Stick Handle
1. Assemble clamps (A) onto both ends of flexible pipe (B).
2. Assemble swivel pipe (C) into flexible pipe (B) and tighten
clamp (A).
3. Insert anti-static wire through flexible pipe (B).
4. Assemble flexible pipe (B) to elbow (D) on blower and
tighten clamp (A).
Note: A light lubricant may be used to ease assembly of flexible
pipe to blower elbow.
5. Loosen wing nut (E). Align notches (G) in handle clamp with
tabs (H).
6. Slide stick handle onto swivel pipe (C). Stick handle (F)
should be angled away from operator.
7. Position stick handle (F) over metal plate on swivel pipe and
adjust for comfortable operation. Tighten wing nut (E).
Note: Ground lead of stick handle must contact metal plate on
swivel pipe.
A
B
C
B
D
A
B
F
C
E
G
H

Echo PB-770 H/T Specifications

General

Engine Displacement	63.3 cc
Air Volume	775 CFM
Air Speed	234 MPH
Noise Level	75 dB(A)
Type	Backpack Blower
Weight	11.1 kg (24.5 lbs)
Displacement	63.3 cc
