ASSEMBLY PB-770 H/T

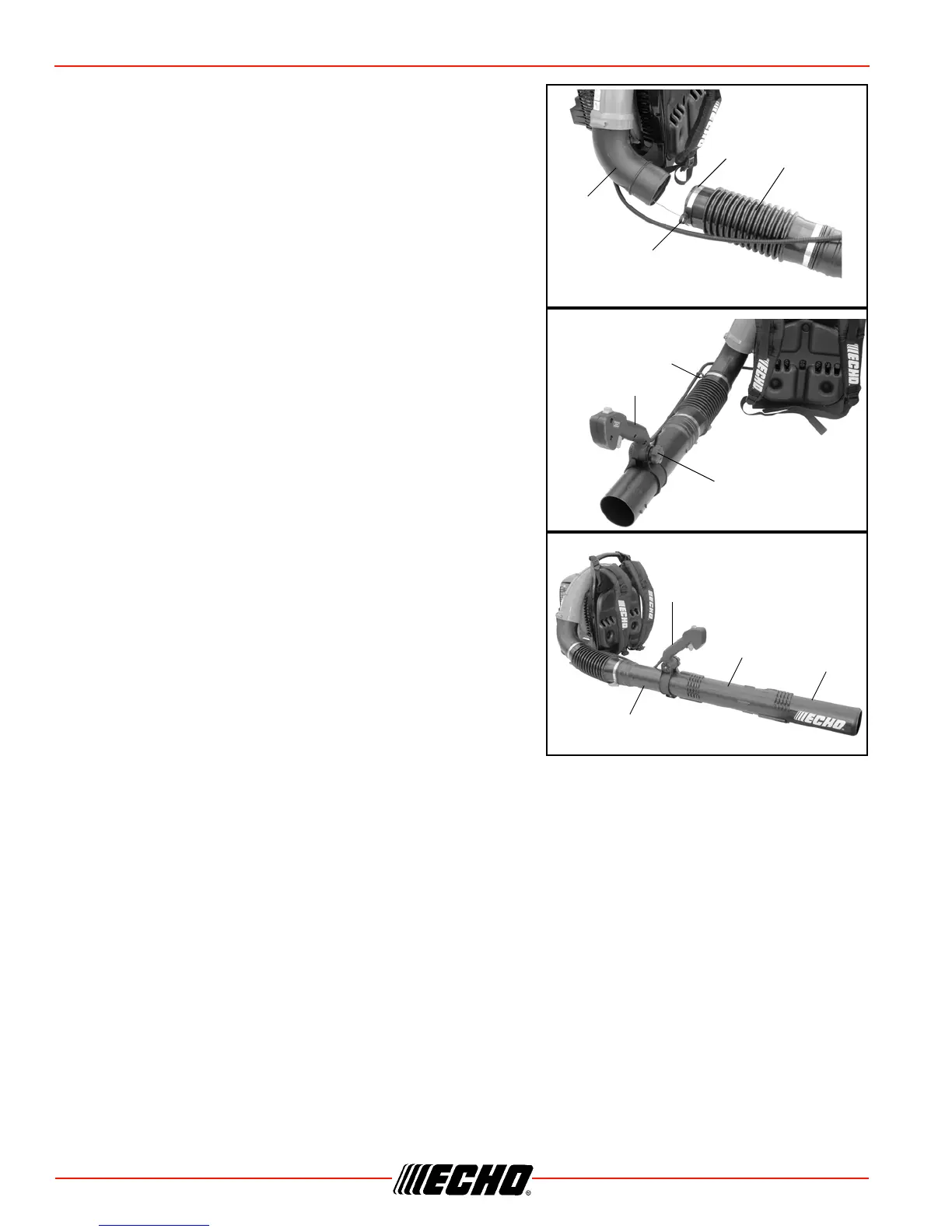

6. Assemble flexible pipe (B) to elbow (D) on blower. Position
guide loop (G) on outside of flexible pipe (away from blower)
and tighten clamp (A).
Note: A light lubricant may be used to ease assembly of flexible
pipe to blower elbow.
7. Clip throttle cable into throttle cable guide loop (G).
8. Move handle (E) to desired position. Tighten knob (H) hand
tight.
9. Assemble straight pipe (I) onto swivel pipe (C), until you feel
light resistance. Do not force connection. Hold swivel pipe
and turn straight pipe clockwise, engaging positive locking
channels, until connection is firm. Do not force connection.
10. Assemble straight pipe with decal (J) to straight pipe (I) as in
step 9.
Note: Blower use will eventually loosen pipe connections.
Exclusive positive locking system allows pipes to be
tightened. If loosening occurs, remove two straight pipes
and install according to instructions 9 &10.
D
G
A
B
H
G
E
C
E
I
J

Echo PB-770 H/T Specifications

General

Engine Displacement	63.3 cc
Air Volume	775 CFM
Air Speed	234 MPH
Noise Level	75 dB(A)
Type	Backpack Blower
Weight	11.1 kg (24.5 lbs)
Displacement	63.3 cc
