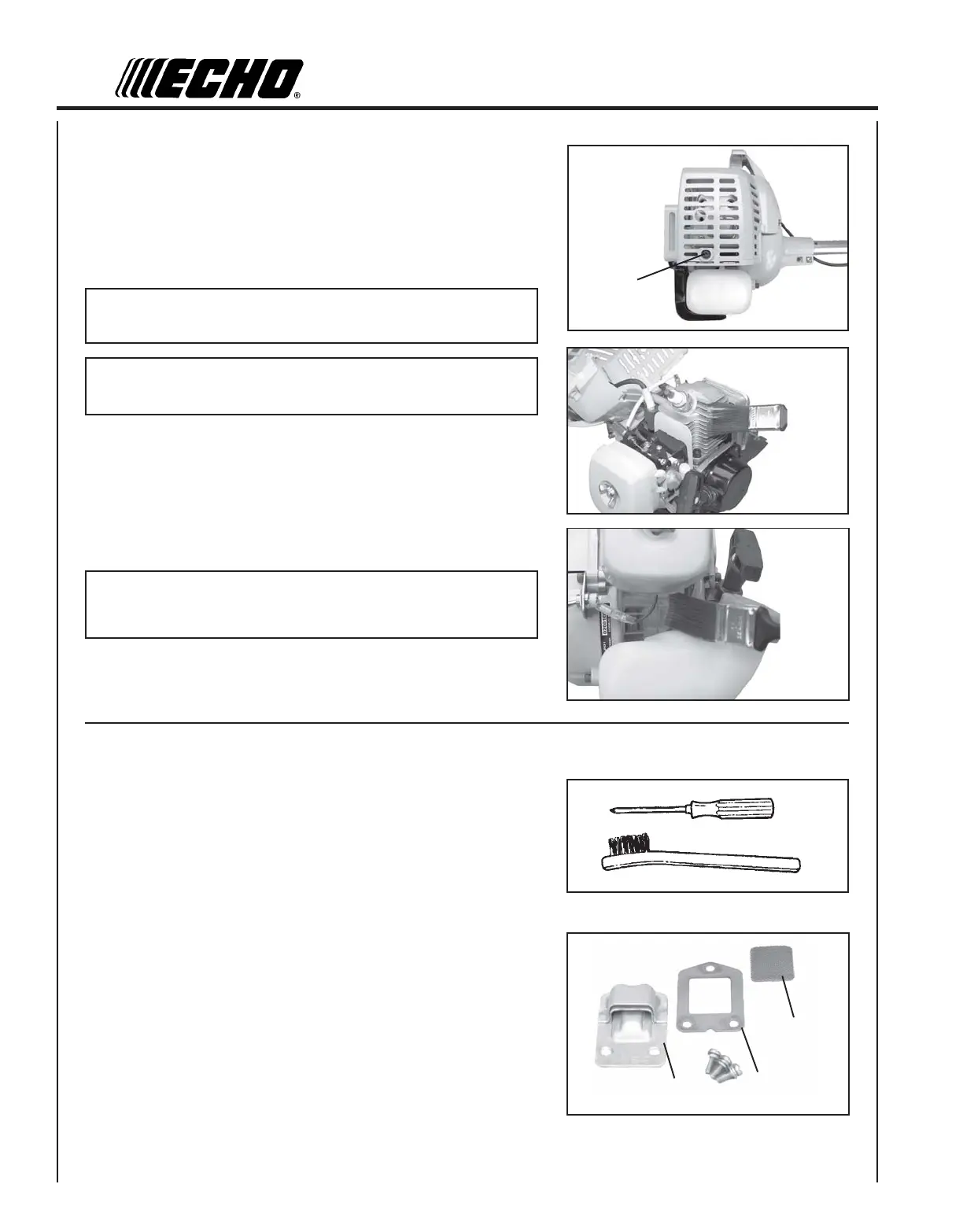

1. Remove spark plug lead from spark plug.
2. Remove muffler cover bolt (A).
3. Remove four screws that retain the engine cover. Two at the top of
the Recoil Starter, two on either side of the front. Lift the cover from
the engine and lay to the front of the engine.
NOTE
The spark plug lead and grommet remain in the engine cover.
IMPORTANT
DO NOT use a metal scraper to remove dirt from the cylinder fins.
4. Use the brush to remove dirt from the cylinder fins.
5. Remove grass and leaves from the grid between the recoil starter
and fuel tank.
6. Assemble components in reverse order.
NOTE
When installing the cover, be certain the tab of the deflector shield
is in the slot of the cover.
EXHAUST SYSTEM
Spark Arrestor Screen
Level 2.
Tools Required: Cross Head Screwdriver, Soft metal brush.
Parts Required: Screen P/N 14586240630, Gasket P/N 14586642031
1. Remove engine cover, see "Cooling System Cleaning" pages 17
and 18 for step by step instructions.
2. Remove screen cover (A) and gasket (B) from muffler body.
3. Clean carbon deposits from screen (C) and muffler components.
4. Replace screen if it is cracked, plugged or has holes burned
through.
A
B
C
A
