POWER PRUNER
TM
OPERATOR'S MANUAL
11
WARNING
Saw Chain is sharp! Always wear gloves when handling assembly,
otherwise serious personal injury may result.
1. Loosen the four (4) screws (D) and locator screw (E) on cutting
attachment.
2. Loosen center clamp knob (F), turning counter clockwise.
3. Pull upper tube (G) out of fiberglass lower tube 127-152 mm (5-6 in.),
then slide (G) back into fiberglass lower tube exposing inner drive
shaft (H). Align and join star shaped drive end of inner drive shaft
(H) with cutting attachment shaft (I).
4. Align ridges on upper tube (G) with seams in cutting attachment.
5. Slide together, aligning locator screw (E) in cutting attachment with
locating hole (J) in upper tube.
6. Tighten locator screw (E). Tighten four (4) cutting attachment
screws (D).
7. Extend upper tube to desired length. Tighten center clamp knob (F)
turning clockwise.
E
D

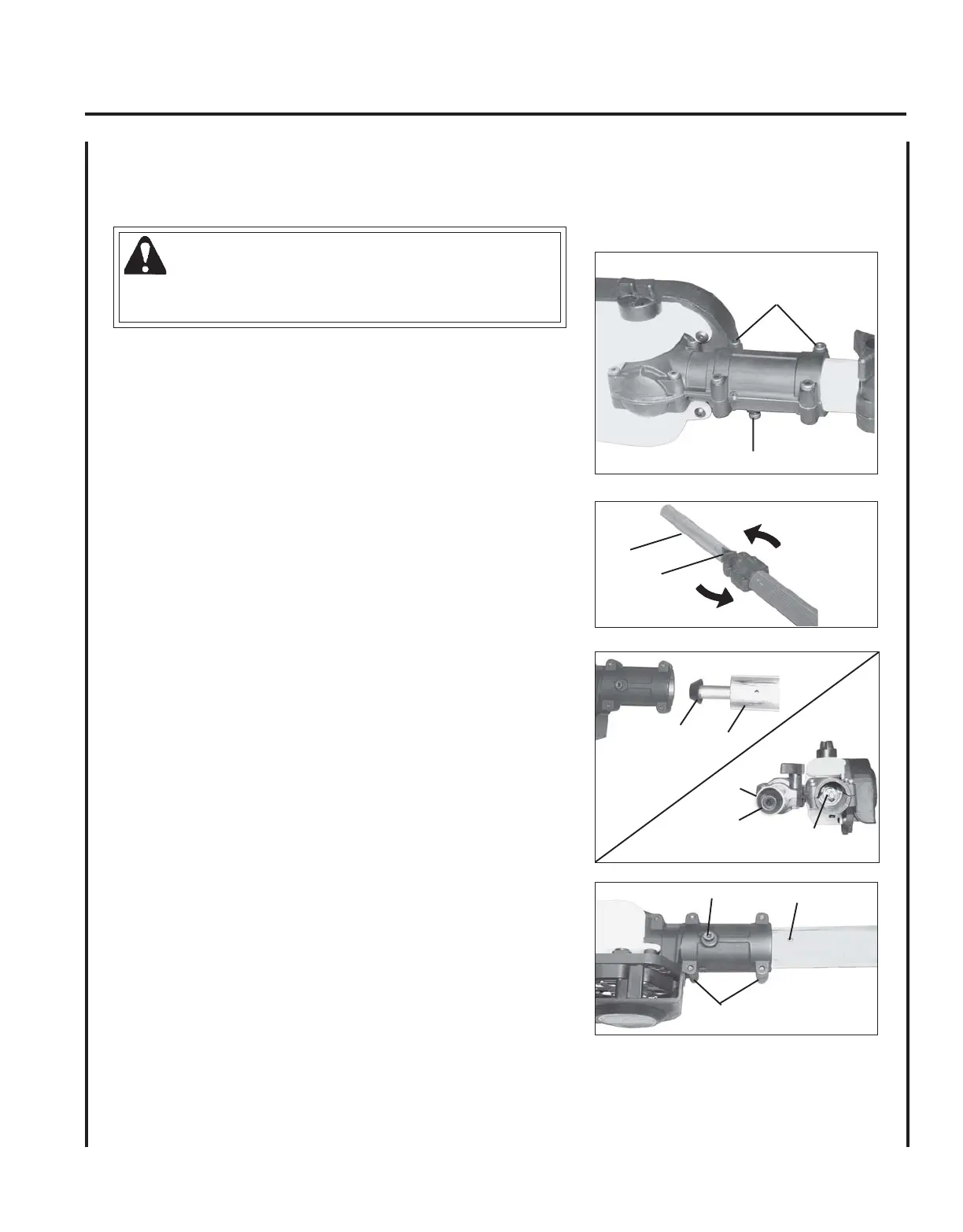

CUTTING ATTACHMENT TO DRIVE SHAFT INSTALLATION
E
D
F
G
H
G
H
I
J
G
