MAINTENANCE PAS-266

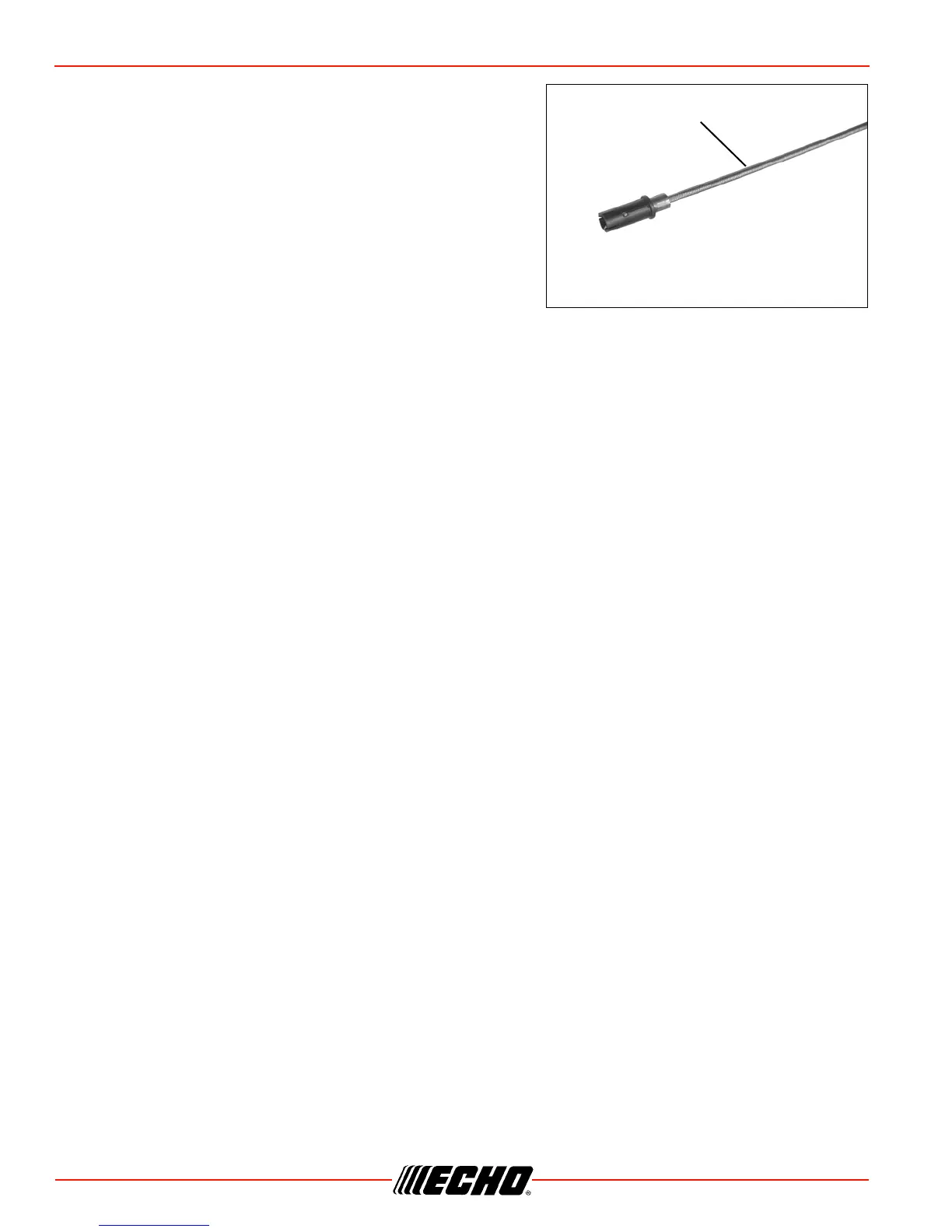

5. Remove upper flex cable (F), wipe clean, and apply a thin
coating of 1/2 oz. (15ml) of grease.
6. Install cable. Make sure that the flex cable fully engages into
the clutch square drive socket.
7. Slide coupler on upper drive shaft until fully seated, and
align set screw hole in coupling with hole in upper drive
shaft.
8. Install and tighten set screw (D), and tighten clamping screw
(C).
