12

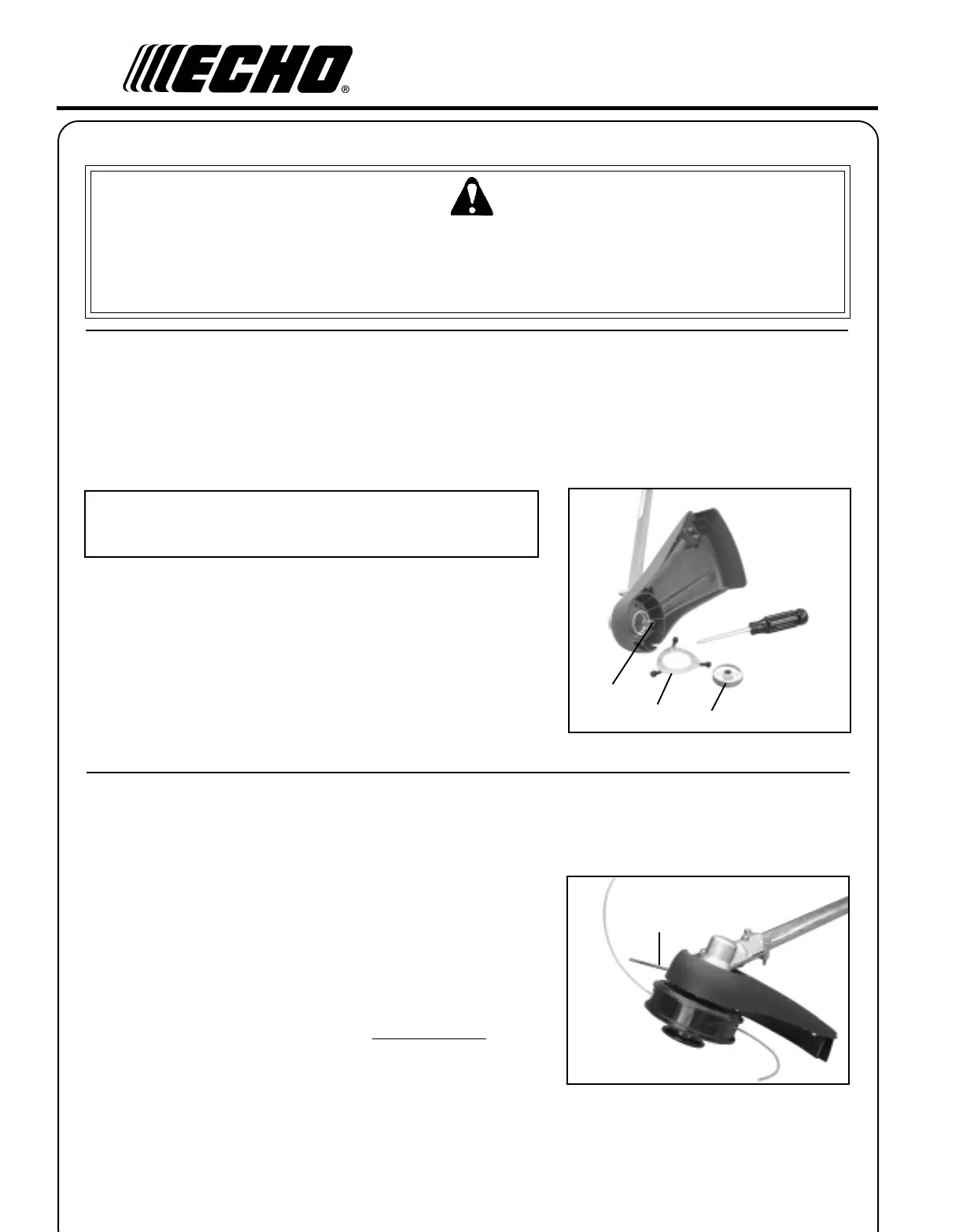

PLASTIC SHIELD INSTALLATION
(for Nylon Line Operation)
Tools Required: Screwdriver.
Parts Required: Plastic Shield, Shield Plate, three (3) 5mm x 15mm
screws.
NOTE
The plastic shield is for use with the Nylon Line Head only.
Install Metal Shield when using plastic or metal blades.
1. Remove plastic threaded shaft sleeve and adapter plate (C) from
PTO shaft (A).
2. Place the shield on the bottom of the bearing housing flange.
3. Place shield plate (B) on shield, align holes. Install three (3) screws
from bottom through plate and shield into gear case.
4. Assemble adapter plate (C) onto PTO shaft.
NYLON LINE HEAD INSTALLATION
Tools Required: Head Locking Tool
Parts Required: Nylon Line Head.
1. Be sure adapter plate (C) remains on PTO shaft.
2. Align locking hole in upper plate with notch in edge of gear
housing and insert head locking tool (D).
3. Thread line head onto shaft by turning it counter clockwise until
head is tight against adapter plate (C).
ASSEMBLY
WARNING DANGER
Use only ECHO approved attachments for these models. Serious injury may result from the use of non approved
attachment combinations. Read and comply with all safety instructions listed in this manual and attachment manual.
ECHO, INC. will not be responsible for the failure of cutting devices, attachments or accessories which have not
been tested and approved by ECHO for use with these units.
A
B
C
D
