GRASS TRIMMER/BRUSH CUTTER

OPERATOR'S MANUAL

NOTE

Model SRM-210U includes U-Handle, 8-tooth blade, and neces-

sary blade conversion parts. Blades must be selected for type of

cutting being performed. See page 16, "Blade Selection."

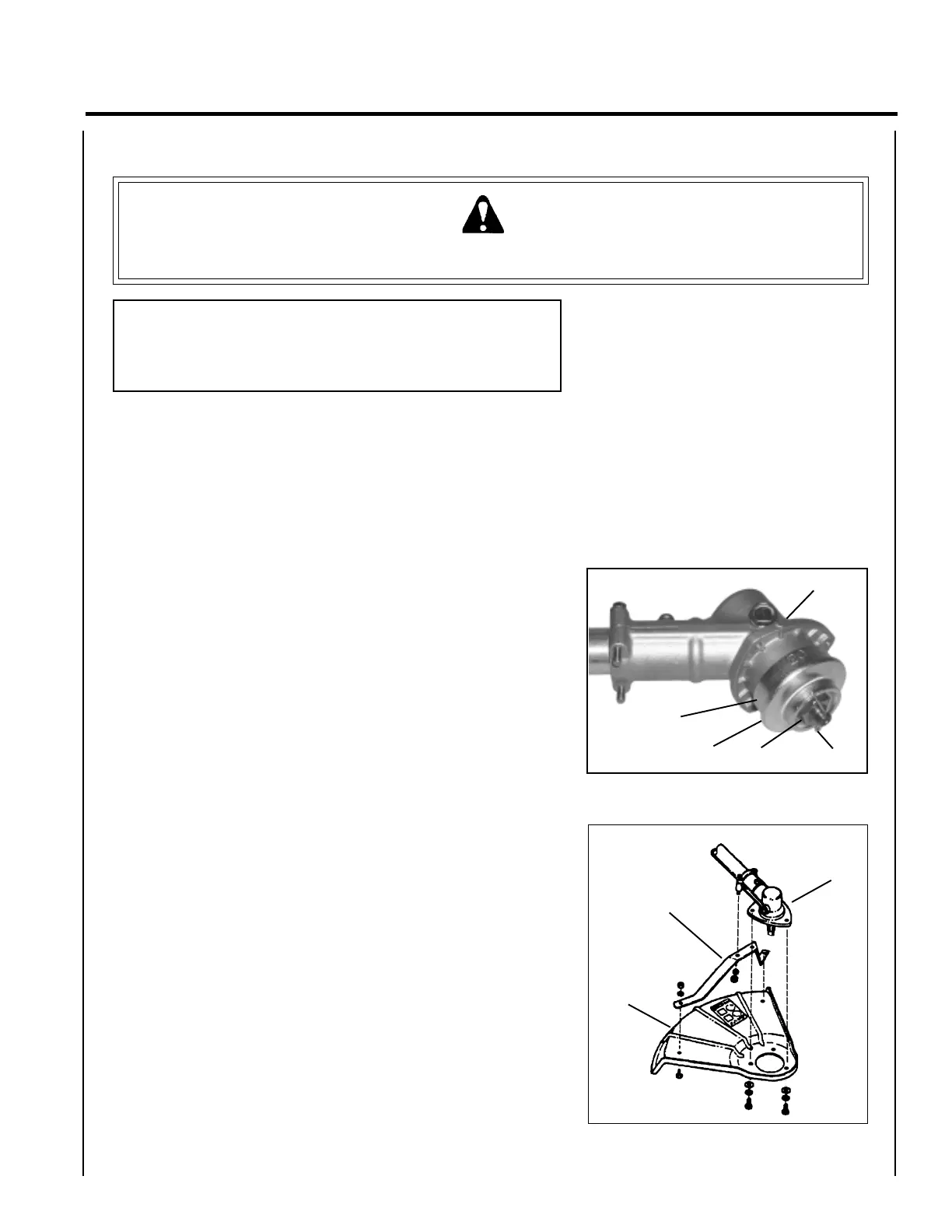

Install Metal Shield

Tools Required: 8 x 10 mm Open-end Wrench, Screwdriver, Scrench,

Locking Tool

Parts Required: Metal Shield, Shield Bracket,

3 - 5 x 15 mm screws w/captivated flat and lock-

washer, (metal shield to gear housing).

2 - 5 x 8 mm screws, 2 - 5 mm nuts, 2 - 5 mm lock-

washers, (bracket to shield).

2 - 5 mm nuts, 2 - 5 mm lockwashers

(bracket to gear housing)

1. If installed, remove nylon line head, upper plate and plastic shield,

and set upper plate aside for use with blade installation. Retain

plastic shield, shield plate, and plastic shield hardware for conver-

sion back to nylon line operation.

2. Align hole in upper plate (D) with notch in gear housing (G), and

insert locking tool to prevent splined shaft from turning. Arrow on

gear housing flange points to notch location.

3. Remove split pin (A), L.H. blade nut (B), lower plate (C), and upper

plate (D) from PTO shaft. Turn blade nut clockwise to remove.

4. Remove locking tool.

5. Loosely attach bracket (J) to shield (K) and attach shield to bottom

of gear housing (G) with hardware provided.

6. Tighten all shield hardware.

BLADE INSTALLATION

WARNING DANGER

You must install the U-Handle and all Blade Conversion parts shown in the following instructions before operat-

ing this unit with metal blades, otherwise serious injury may result.
