SRM-225U MAINTENANCE
X7722271407 31
© 4/2013 ECHO Inc.
Nylon Line Head Disassembly Instructions
Note: For normal use, Speed Feed
©
head disassembly is not
necessary. However, if circumstances require
disassembly, follow these instructions.

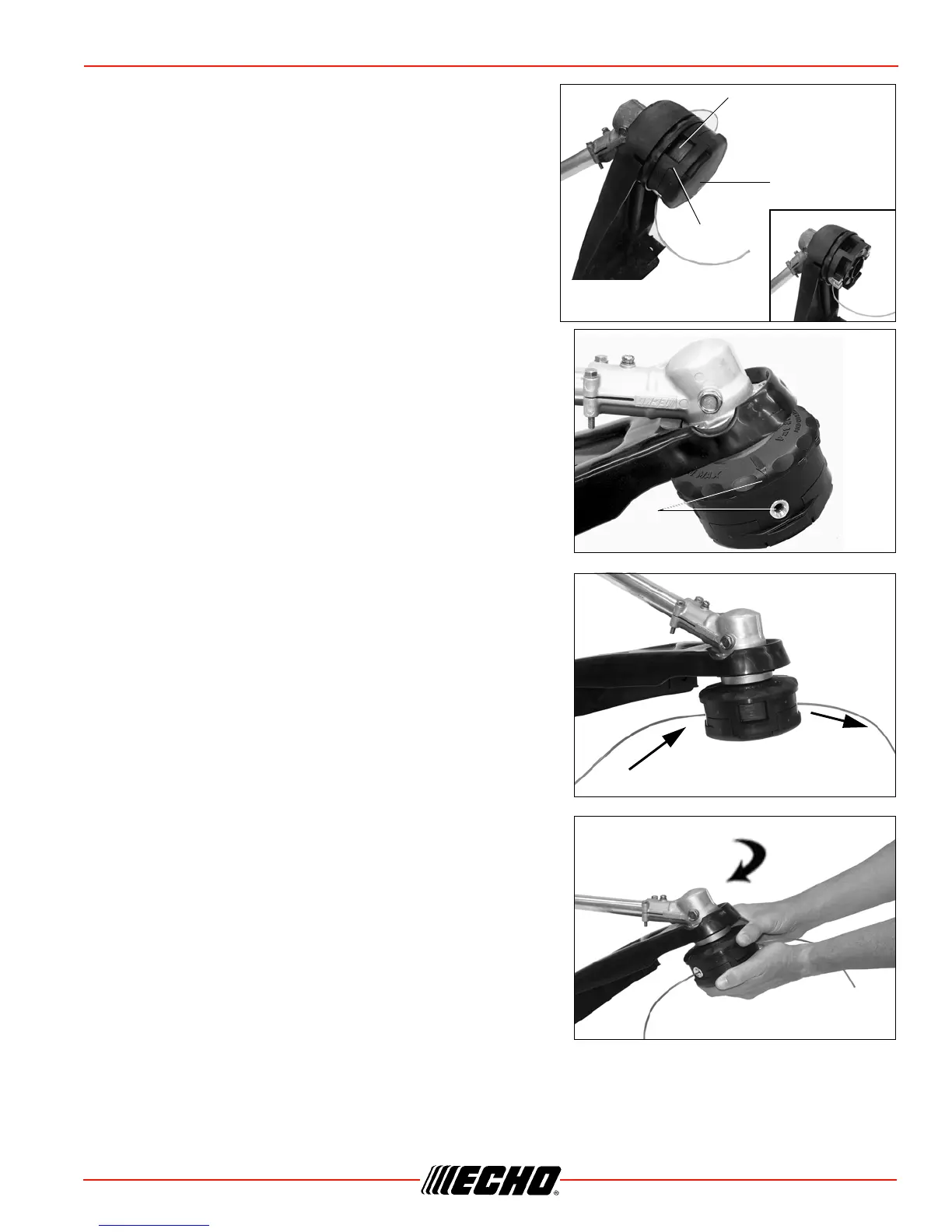

1. Press top of locking tabs (A) on both sides of Speed
Feed
©
head to release cover (B) from eyelet carrier(C).
2. Remove cover from eyelet carrier.
Nylon Line Replacement
1. Cut one piece of line to recommended length.
.080 (2.0 mm) dia. – 20’ (6 m)
.095 (2.4 mm) dia. – 20’ (6 m)
2. Align arrows on top of knob with openings in eyelets.
3. Insert one end of trimmer line into an eyelet, and push line
equal distance through trimmer head.
4. Hold trimmer head while turning knob clockwise to wind line
onto spool until about 5” (13 cm) of each line remains
exposed.
Trimmer head is now fully loaded and ready for operation.
