10
C

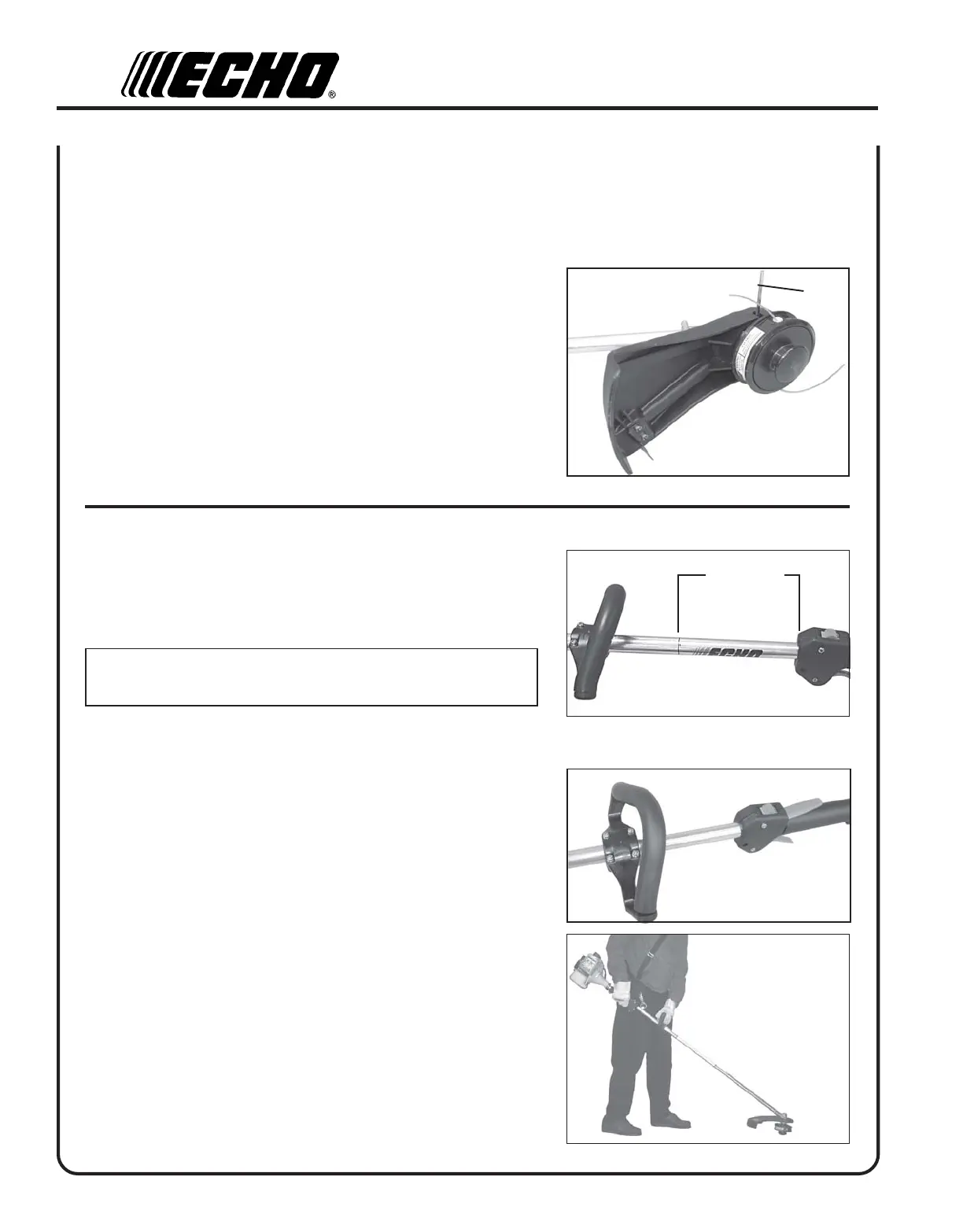

NYLON LINE HEAD INSTALLATION
(Use with Plastic Shield)
1. Be sure upper adaptor plate remains on PTO shaft.
2. Align locking hole in upper plate with notch in edge of gear
housing and insert head locking tool (C).
3. Thread line head onto shaft by turning it counter clockwise until
head is tight against upper plate.
4. Remove head locking tool.
MIN
SPACING
FRONT HANDLE ADJUSTMENT
NOTE
Label shows minimum spacing for front handle location.
1. Position front handle for comfortable operation and secure screws.

Echo SRM-230 - 10-05 Specifications

General

Engine Displacement	21.2 cc
Shaft Type	Straight
Engine Type	2-stroke
Power Output	0.8 hp
Cutting Swath	17 in
Starter System	i-30™ starter
Fuel Capacity	14.9 fl. oz (440 ml)
