GRASS TRIMMER/BRUSH CUTTER
OPERATOR'S MANUAL
11

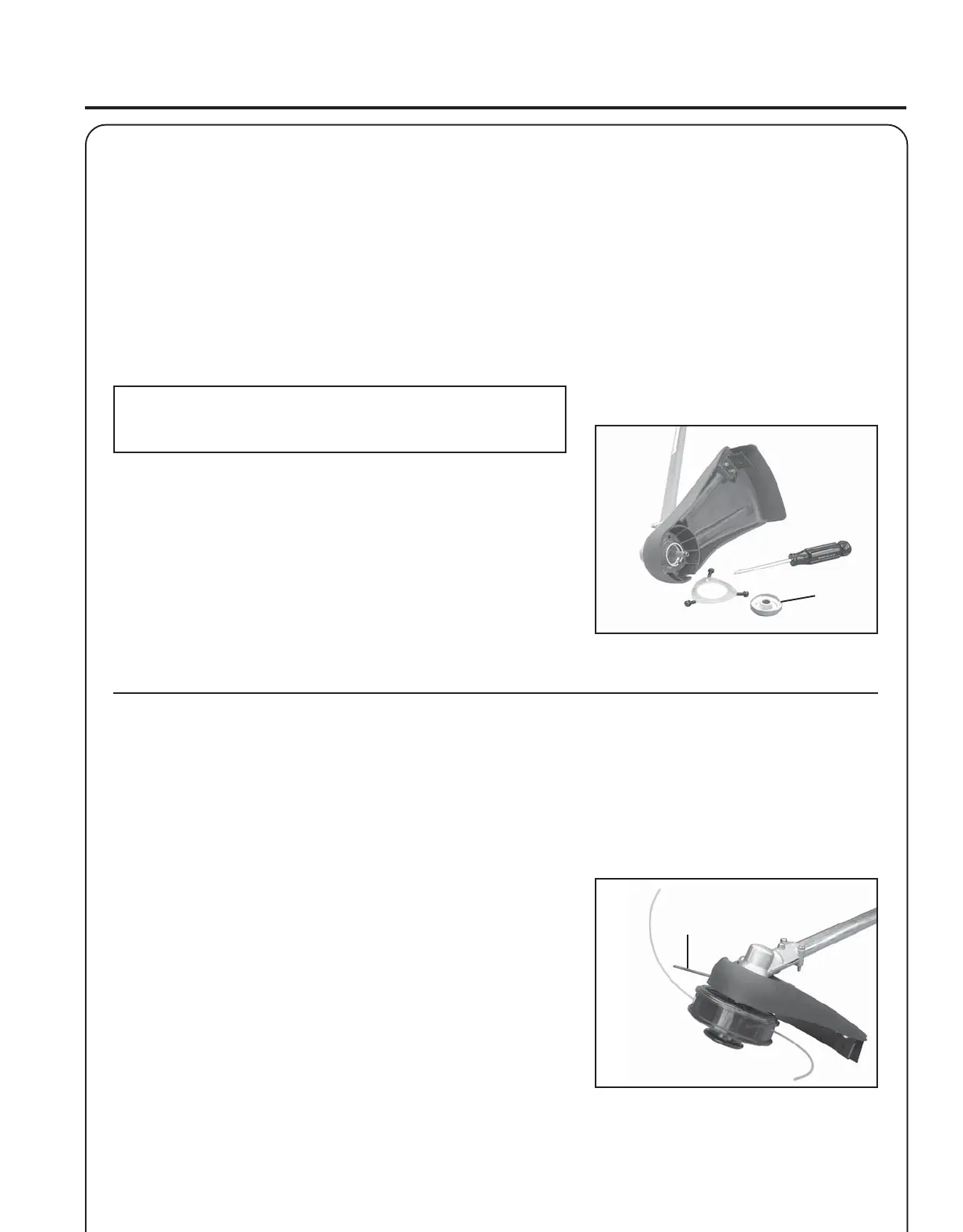

ASSEMBLY
PLASTIC
SHIELD INSTALLATION
(For Nylon Line Operation)
Tools Required: Screwdriver
Parts Required: Plastic Shield, Shield Plate, three (3) 5mm x 16mm
screws
NOTE
The plastic shield is for use with the Nylon Line Head only.
Install Metal Shield when using plastic or metal blades.
1. Remove vinyl protector from PTO shaft.
2. Place plastic shield on bottom of bearing housing flange.
3. Place shield plate on plastic shield, align holes. Install three (3)
screws from bottom through plate and shield into gear case.
4. Install adapter plate (A) onto PTO shaft.
NYLON LINE HEAD INSTALLATION
(Use with Plastic Shield)
Tools Required: Head Locking Tool
Parts Required: Nylon Line Head
1. Be sure upper adaptor plate remains on PTO shaft.
2. Align locking hole in upper plate with notch in edge of gear
housing and insert head locking tool (B).
3. Thread line head onto shaft by turning it counter clockwise until
head is tight against upper plate.
4. Remove head locking tool.
A
B
