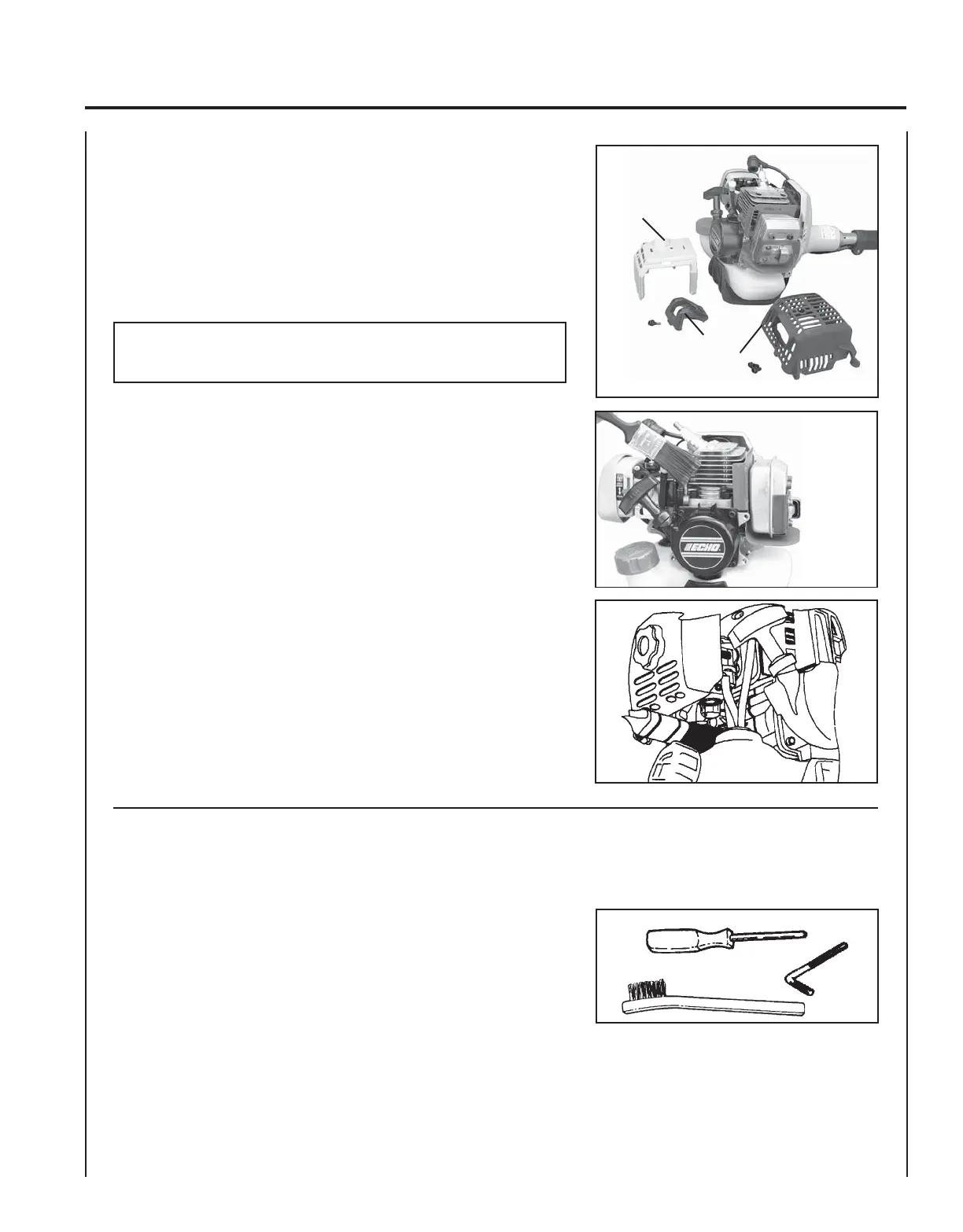

1. Remove spark plug lead.
2. Remove two (2) muffler cover screws and muffler cover (A).
3. Remove screw and top guard (B).
4. Remove engine cover (C).
IMPORTANT
DO NOT use a metal scraper to remove dirt from the cylinder fins.
5. Use brush to remove dirt from the cylinder fins.
6. Remove grass and leaves from the grid between the recoil starter
and fuel tank.
7. Assemble components in reverse order.
EXHAUST SYSTEM
Spark Arrestor Screen
Level 2.
Tools Required: Cross Head Screwdriver, Soft Metal Brush,
4 mm Hex Wrench
Parts Required: Spark Arrestor Screen, P/N 14586240630
Gasket, P/N 14586642031
A
B
C

Echo SRM-230 - 11-03 SERIAL NUMBER 07001001-07002988 Specifications

General

Displacement	21.2 cc
Power Output	0.8 kW
Shaft Type	Straight
Starter System	Recoil
Engine Type	2-Stroke
