PROSWEEP ATTACHMENT
OPERATOR'S MANUAL
13
BRUSH REPLACEMENT
Level 1.
Tools Required: 8 mm Open End Wrench, Cross Head Screwdriver
Parts Required: Standard Brush Asy .028in. P/N 25020225661 QTY (2)
Optional Brush Asy .018in. P/N 99944200551 QTY (2)
Brushes that are broken off, deformed, or worn to within 25.4 mm (1 in.)
of the brush holder drum should be replaced for best sweeping effi-
ciency.

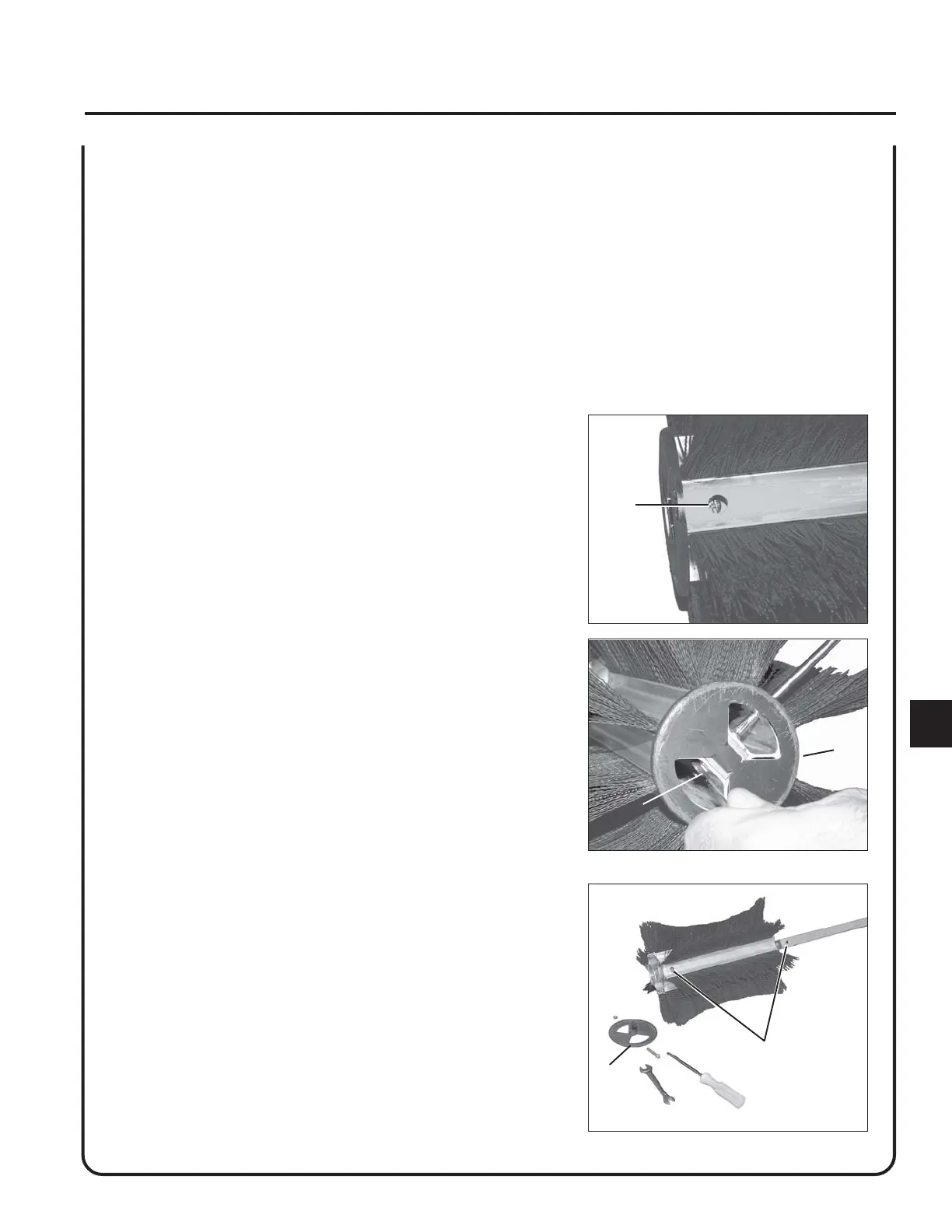

1. Locate brush holder access hole (A) near outer drum end.
2. Hold 8 mm nut (B) from turning with open end wrench inserted
through drum holder cap. Loosen and remove bolt and lock nut
with cross head screwdriver through holder access hole (A).
3. Remove drum cap (C). Slide brush holder drum off square axle shaft.
4. Install new brush holder drum, aligning hole (A) in drum axle with
axle shaft hole.
5. Install drum cap, aligning cap holes with axle shaft and brush
holder drum holes.
6. Install bolt and locknut. Tighten securely.
B
C
A
C
A
