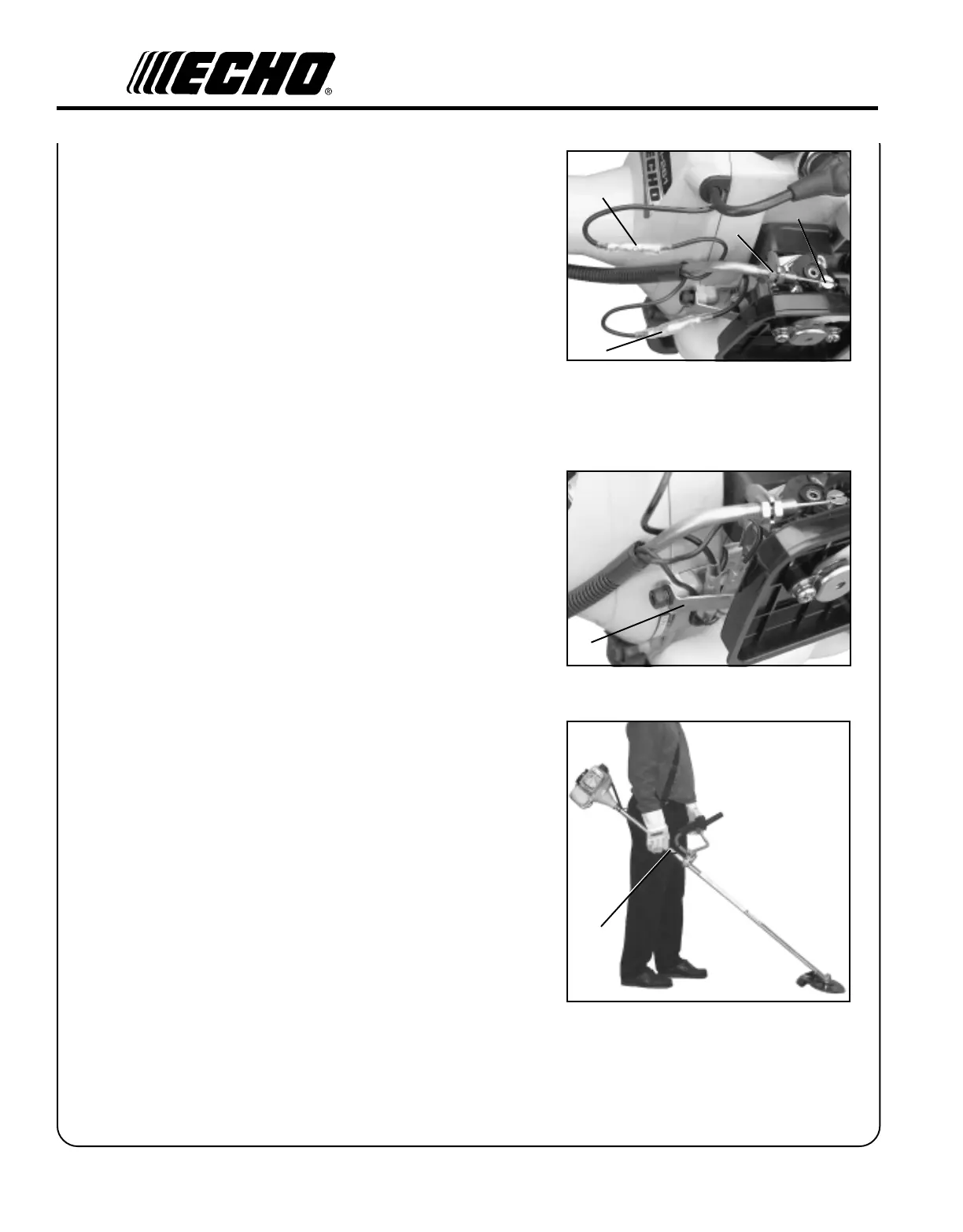

13. Place throttle linkage in slot in bracket. One nut on each side of
bracket. Finger tighten both nuts (D).
14. Attach inner cable to swivel (C). Check throttle for freedom of
movement and that wide open throttle / low idle extremes are
adjusted properly. If adjustment cannot be achieved with adjusting
nuts, consult with your Echo Dealer for correct adjustment
procedure.
15. Connect ignition leads (A) and (B).
16. Bundle and secure ignition leads against engine housing with clip
(L).
17. Install air filter and cover.
18. Balance unit.
a. Put on harness and attach unit to harness.
b. Slide harness clamp (M) up or down until unit balances with
cutting attachment approximately 2 - 3" from ground.
c. Tighten harness clamp screw.
A
B
C
D
L
