Echo SRM series User Manual

ENGLISH

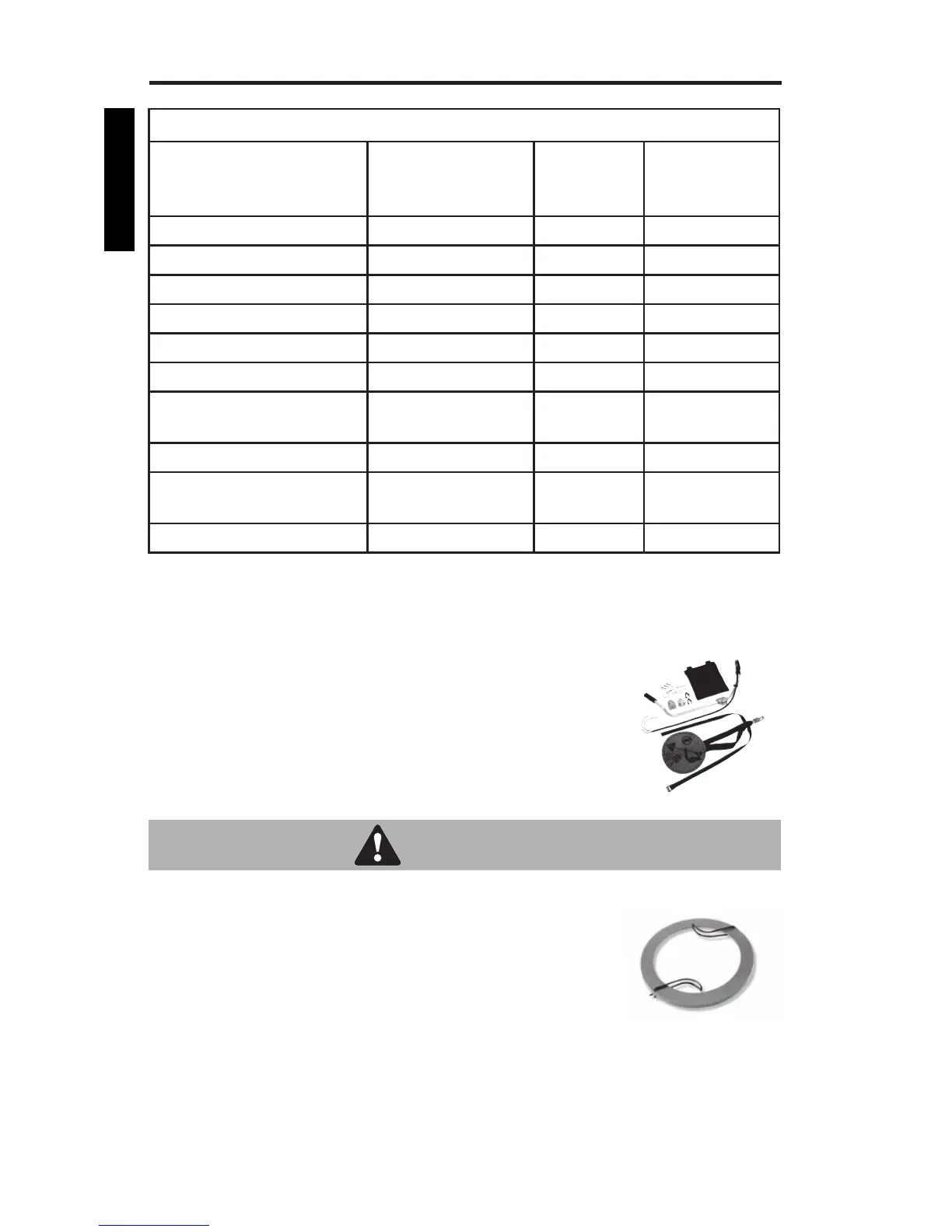

BARRIER BAR USE- PAS/SB ATTACHMENTS
PAS
ATTACHMENT
RECOMMENDED OPTIONAL
NOT
RECOM-
MENDED
Shaft Hedge Clipper X
Tiller- Cultivator X
Power Pruner X
Standard Line Trimmer X
Pro Sweep X
Pro Thatch X
2
Articulating Hedge
Clipper
X
Brushcutter
1
X
3
Rapid Loader Line
Trimmer
X
Pro Paddle X
1. See SRM/PAS/SB Blade Set-up Guide on Page 17 for blade use
requirements
2. Use J-Handle provided with Pro-Thatch attatchment as a barrier
3. Brushcutter requires U-Handle & Harness
SRM/PAS/SB Blade Conguration
If you change the cutting attachment on your SRM, PAS,
or SB unit from nylon line head to a blade, you must also
install all of the parts required for blade operation. These
parts vary by type of blade being used, and may include
replacing the front handle with a U-Handle (See the SRM/
PAS/SB Set-Up Guide, Page 17)
DANGER
A trimmer-brushcutter unit equipped with a metal blade can cause
serious injuries if handled improperly.
ALWAYS use extreme care when carrying or handling
the unit to avoid contact with the cutting edges of the
blade. ECHO Inc. recommends using the optional
plastic blade cover to protect yourself and others from
accidental blade contact.
SRM/PAS/SB Blade Set-Up Guide
Use this conguration table as a guide for setting up your
unit with a blade. See the assembly instructions in your
Operator’s Manual or Blade Conversion Kit for specic information.
Circular Blade
Cover
U-Handle/Blade Kit
16
ASSEMBLY

Echo SRM series Specifications

General

Type	String Trimmer
Engine Type	2-Stroke
Engine Displacement	21.2 cc
Fuel Tank Capacity	14.9 oz
Cutting Height Adjustment	N/A (fixed line length)
