10

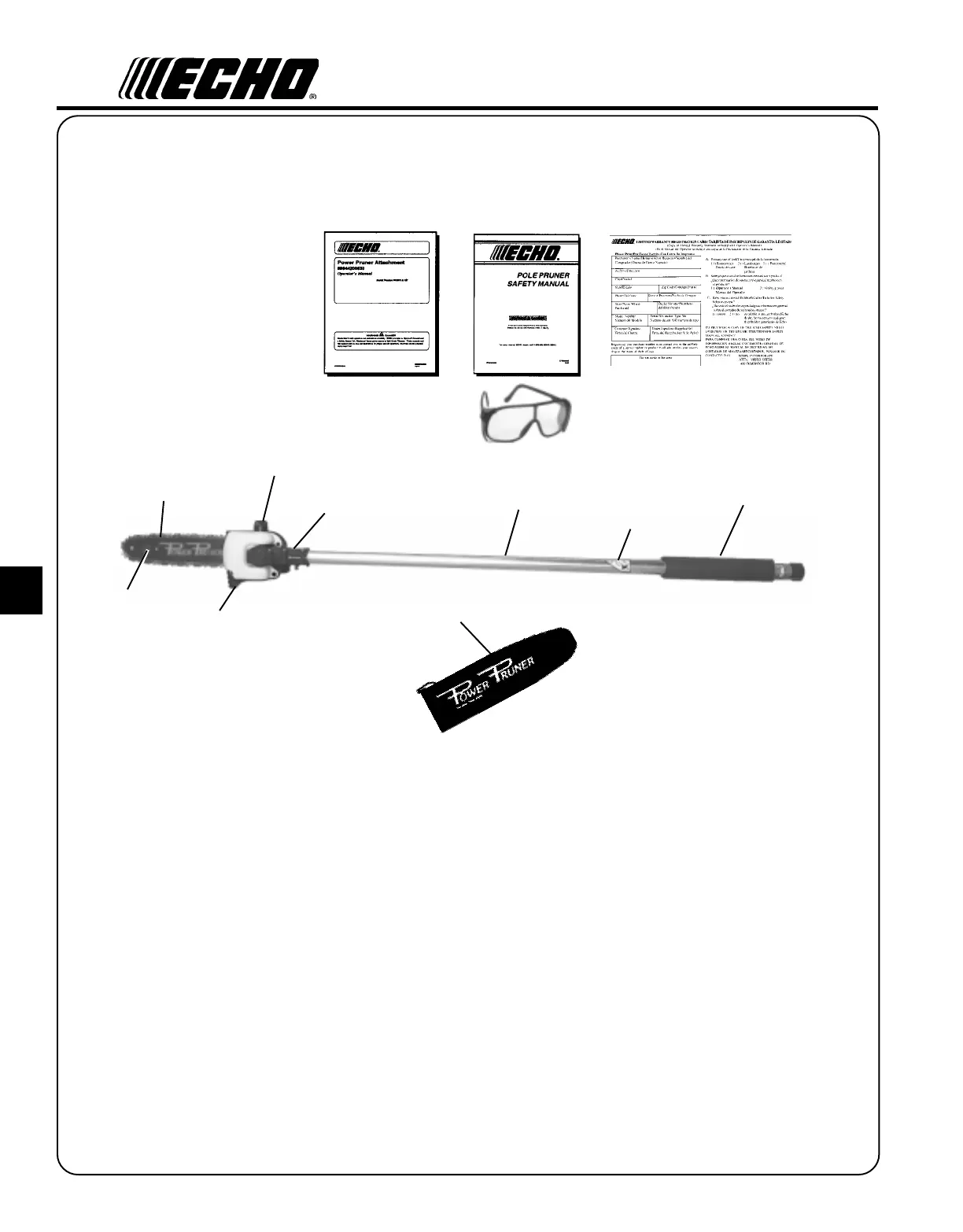

DESCRIPTION
The ECHO product you purchased has been factory pre-assembled for your convenience. After opening the carton,
check for damage. Immediately notify your retailer or ECHO Dealer of damaged or missing parts. Use the contents
list to check for missing parts.
CONTENTS
1 - Power Pruner
TM
Attachment
- Plastic Bag (co-pack)
- Operators Manual
- Safety Manual
- Warranty Registration Card
- Guide Bar Cover
- Safety Glasses
1. GRIP, FRONT - Cushioned grip for left hand.
2. SHAFT DECAL - (See Page 4)
3. LOWER DRIVE SHAFT ASSEMBLY - Contains a specially designed liner and the flexible drive shaft.
4. CUTTING ATTACHMENT - Sealed, gear ratio is 1.5:1 reduction.
5. AUTOMATIC OILER ASSEMBLY - Self oiling. Use high quality, low viscosity, non detergent bar and chain oil.
6. SAW CHAIN - 91 VS 9.53mm (3/8 inch) low profile Oregon
® saw chain. Runs approximately 609.6 m/min.
(2000 ft/min) at full throttle.
7. GUIDE BAR - 254 mm (10 inch) Bar
8. CUTTING SHOE - Used to capture and stabilize branch while cutting. Place cutting shoe against branch, accelerate
and lower saw chain into branch.
9. GUIDE BAR COVER - Used to cover guide bar and saw chain during transport and storage. Remove guide bar cover
before using unit.
1
2
4
6
7
5
3
8
9
