Echo WT-1610 - Parallel Trimming Adjustment

8 WHEELED TRIMMER
OPERATION
The Wheeled Trimmer can be adjusted to mow with an o󰀨set. This allows the machine to trim in hard to reach places.
Parallel trimming is adjustable on this model to the left 2". The trimmer body pivots on the axle. To adjust the parallel
trimming setting:
1. Loosen the T-handle located on the back of the trimmer, below the engine (Figure 4.1).
2. Hold the handle bar/axle assembly and move the body assembly. The pivot point is directly below the center of the
engine.
3. Tighten the T-handle loosened in step 1.
4. When nished using the parallel trimming feature, loosen the T-handle and move the body assembly to the original
position.
5. Tighten the T-handle and resume regular trimming or mowing.
T-Handle
Pivot Point

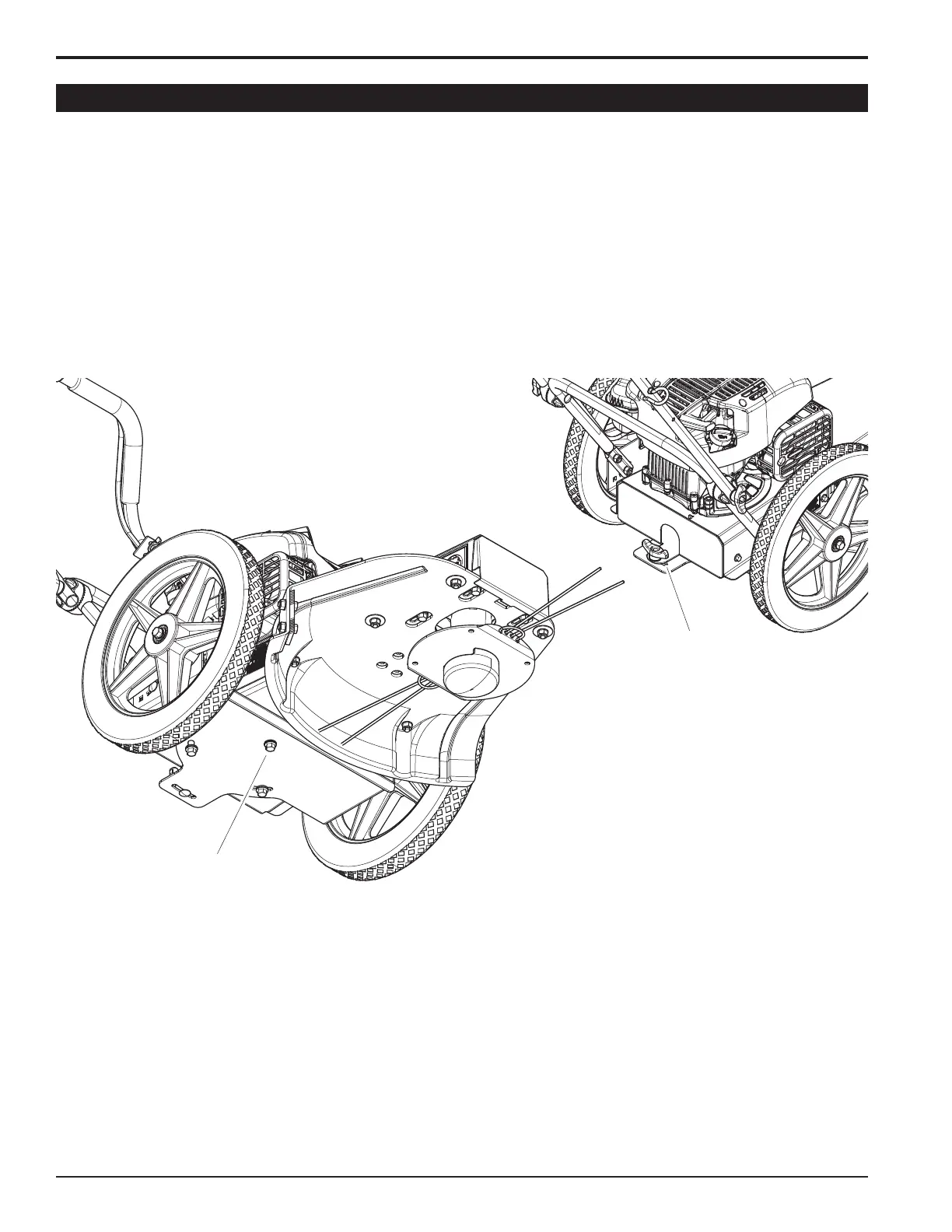

Figure 4.1, Adjusting the Trimmer
4.4 PARALLEL TRIMMING FOR PUSH TRIMMERS
