11WHEELED TRIMMER
ENGLISH
SERVICE & MAINTENANCE
WARNING
BEFORE INSPECTING OR SERVICING ANY PART OF THIS MACHINE, SHUT OFF POWER SOURCE, DISCONNECT
SPARK PLUG WIRE FROM SPARK PLUG AND MAKE SURE ALL MOVING PARTS HAVE COME TO A COMPLETE STOP.
7. Remove block of wood. Close trimmer body and
install two screws (3).
8. Move spindle hub forward to apply belt tension.
Tighten four bolts (2).
9. Replace front cover.
1
2
3

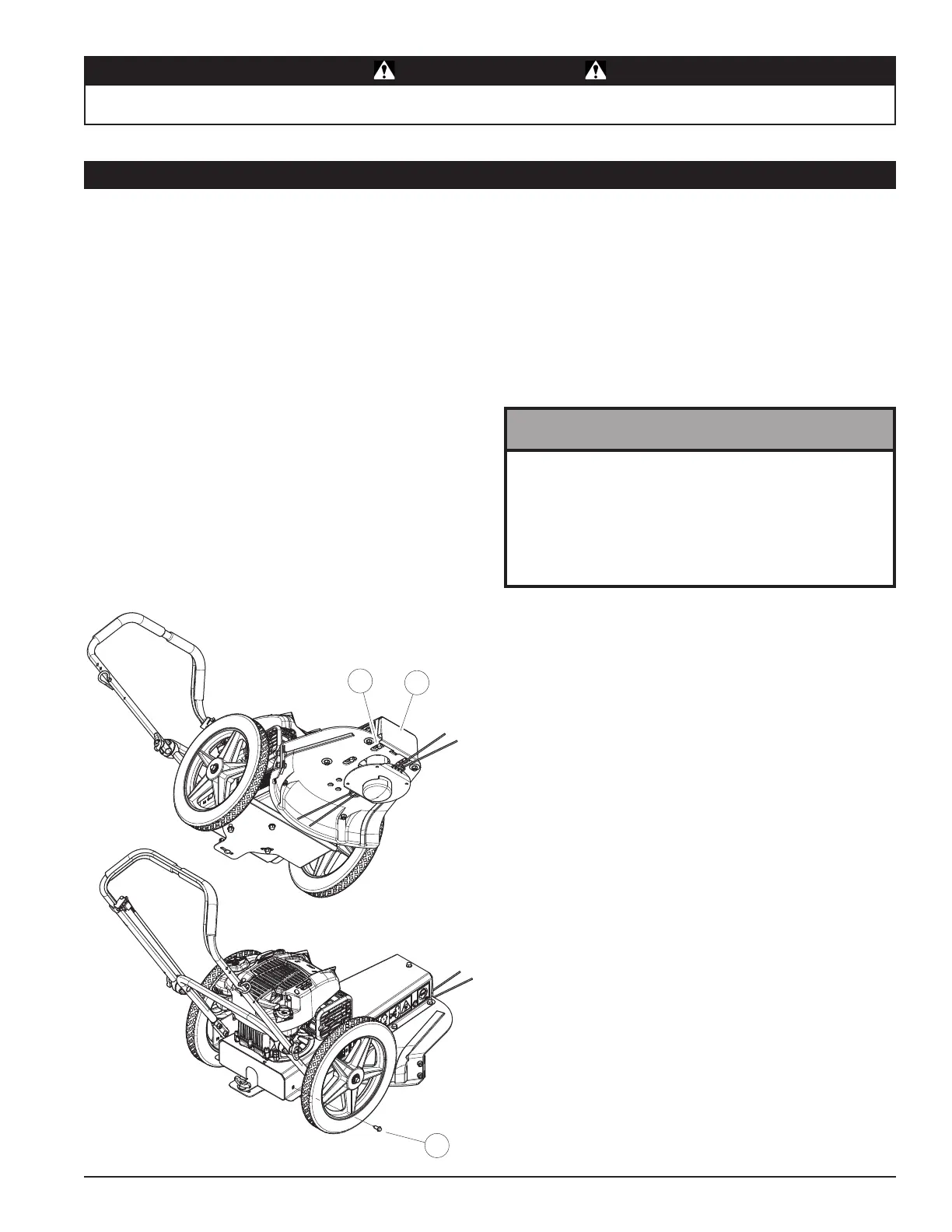

5.5 DRIVE BELT CHECKING, TENSIONING, AND REPLACEMENT
Check the condition of the drive belt annually or after 20
hours of operation, whichever comes rst. If the belt is
cracked, frayed, or worn, replace it by following these
steps:
1. Shut o the engine. Disconnect the spark plug wire.
2. Remove the front cover (1).
3. Loosen the four bolts (2) fastening the spindle hub to
the trimmer bottom frame. This will allow the spindle
hub with the attached trimmer pulley to move freely.
4. Remove the two screws (3) on the sides of the body
at the back of the machine. Push up on the back of
the engine and down on the handle bar. The body will
pivot near the front of the engine, opening the back,
and exposing the belt. Place a small block of wood in
the opening to keep from closing.
5. Remove worn or broken belt.
6. Install new belt from the front to the back. Feed belt
above the front trimmer pulley and below the rear
pulley.
● A belt that is too tight will damage bearings/spindle
shaft/belt.
● A belt that is too loose will slip and cause premature
failure.
● The engine should be placed under load while in
thick grass, if not the belt may be slipping.
NOTE
To Next Page
