6. FUNCTION LIST
1. Power on switch, 0/I
2. Automatic power off configuration, AUTO STANDBY
3. LED indicator, AUTO STANDBY
4. High-pass filter switch, HPF
5. Mono-stereo switch, 1+2
6. Signal input RCA connector, 1 2
7. Input Screwable terminal strip
8. Signal present indicator, SP
9. Channel volume control, VOL
10. Clip indicator, CLIP
11. Output terminals
12. Screwable terminal for remote control
13. Mains socket
14. Input Screwable terminal, INPUTS
15. Line output Screwable terminal, OUTPUTS

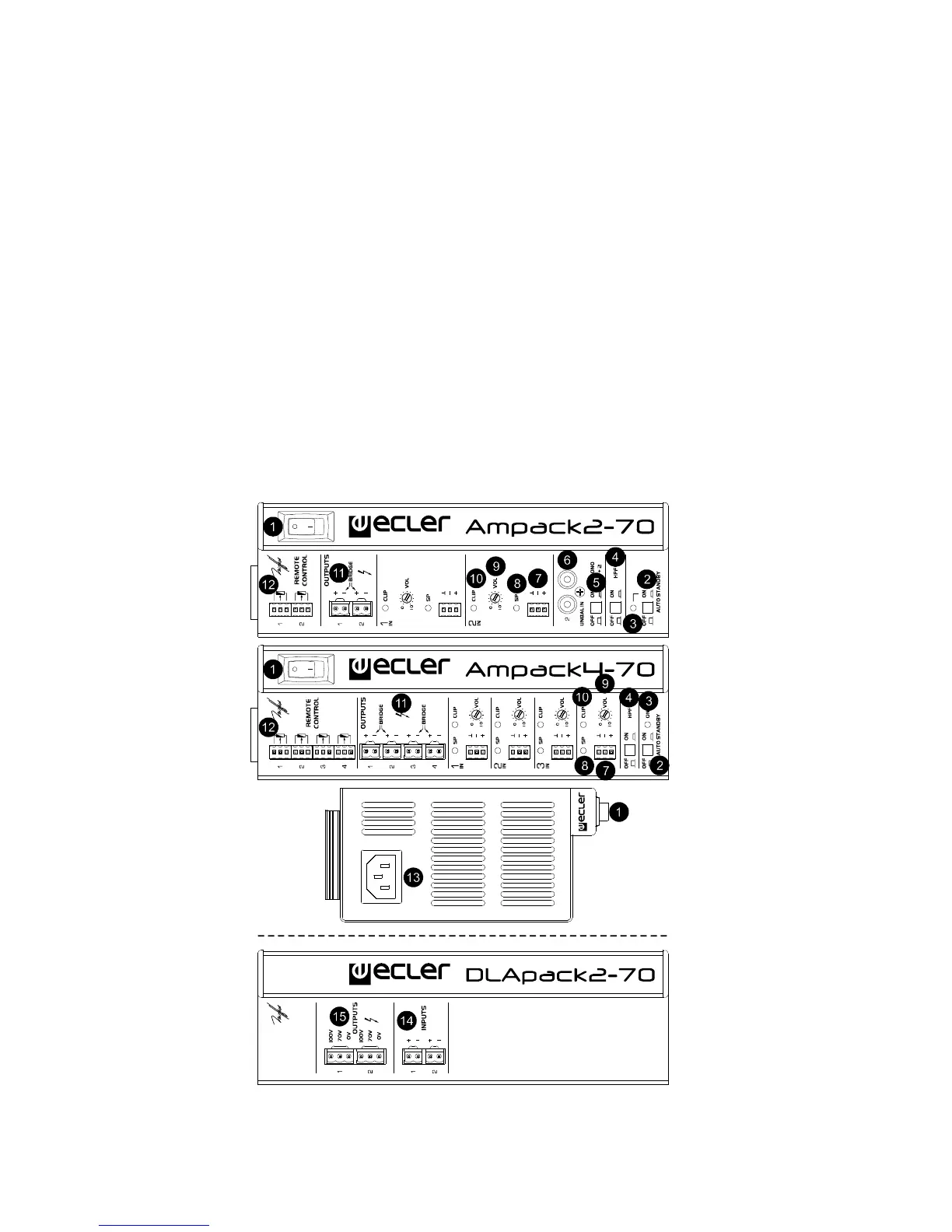

7. FUNCTION DIAGRAM
