E.R.%:
Adjusts the Early Reflections, the time for the first reflected sounds to reach a listener's ears: the greater the
spacing of the early reflections, the bigger the virtual room sounds.
F.R.%:
The time between the reception of the direct signal by the listener and start of the Reverb portion of the effect is
called Predelay. The F.R.% control adjusts the fast reflection pre-delay generator: the faster is the pre-delay
reflection, the smaller sounds the room.
Phase:
The Phase switch reverses the phase of the reverb signal output and adds a bright sparkle to the overall sound.

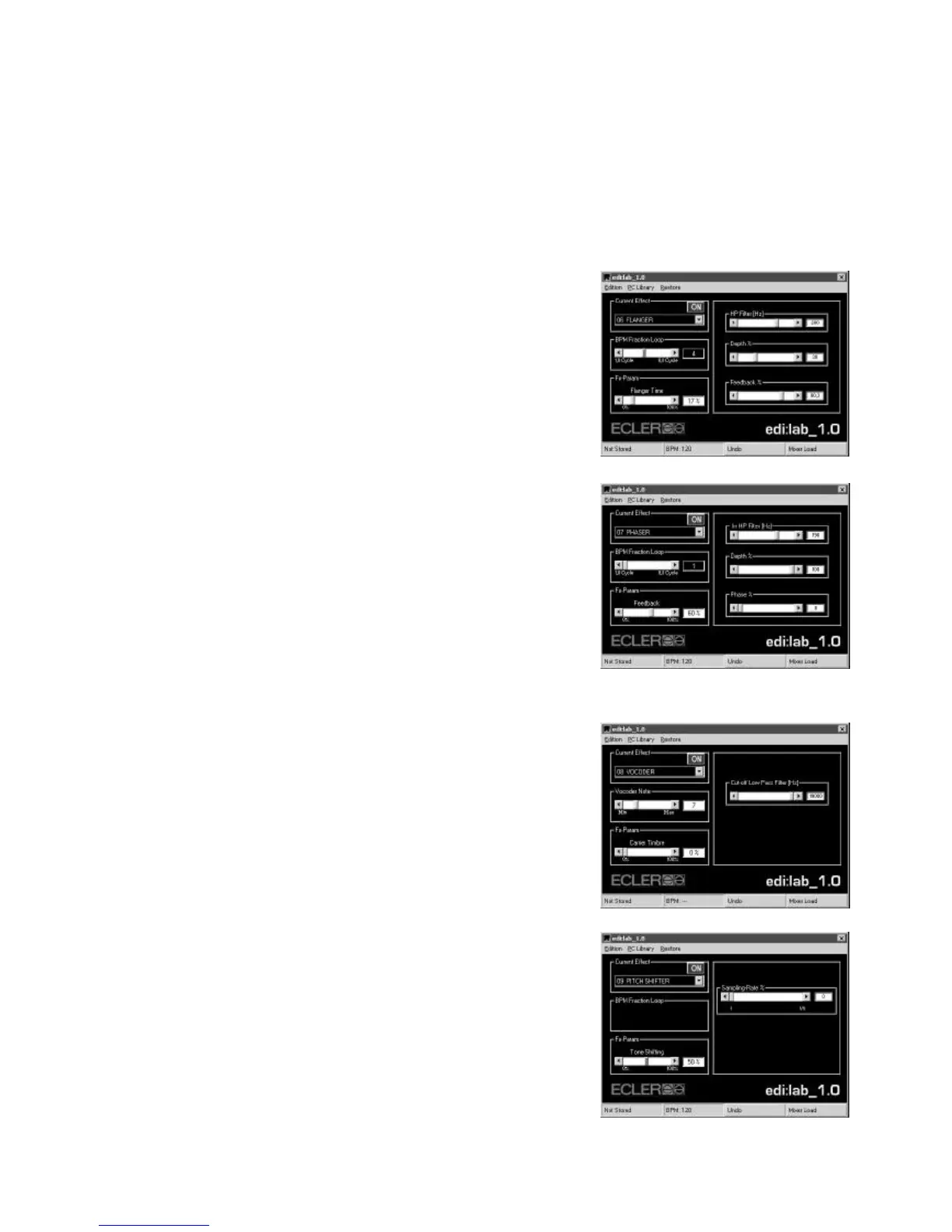

FLANGER (06)
HP Filter:
You can finely adjust an input High Pass filter in order to avoid possible
“Bass Rumble” effect on large P.A. systems.
Depth %:
Controls the “sweep'' or maximum delay swing of the variable short delay
(Flanger).
Feedback %:
Controls the flanged delay feedback %.
PHASER (07)
In HP Filter:
You can finely adjust an input High Pass filter in order to avoid possible
“Bass Rumble” effect on large P.A. systems.
Depth %:
The phaser effect shifts the audio signal out of phase following an
oscillation movement. The Depth % adjusts the depth of this oscillation
(L.F.O.).
Phase %:
This control adjusts the rate of phase variation (100%= phase variation of
±180º).
VOCODER (08)
Cut-off Low Pass Filter:
Adjusts the carrier input Low Pass filter cut-off frequency.
PITCH SHIFTER (09)
Sampling Rate %:
You can lower the Picth Shifter sampling ratio and transform the input
signal into a distorted “lo-fi” signal.
