Eclipse Bi-Flame v1.8, Instruction Manual 826, 05/03
44

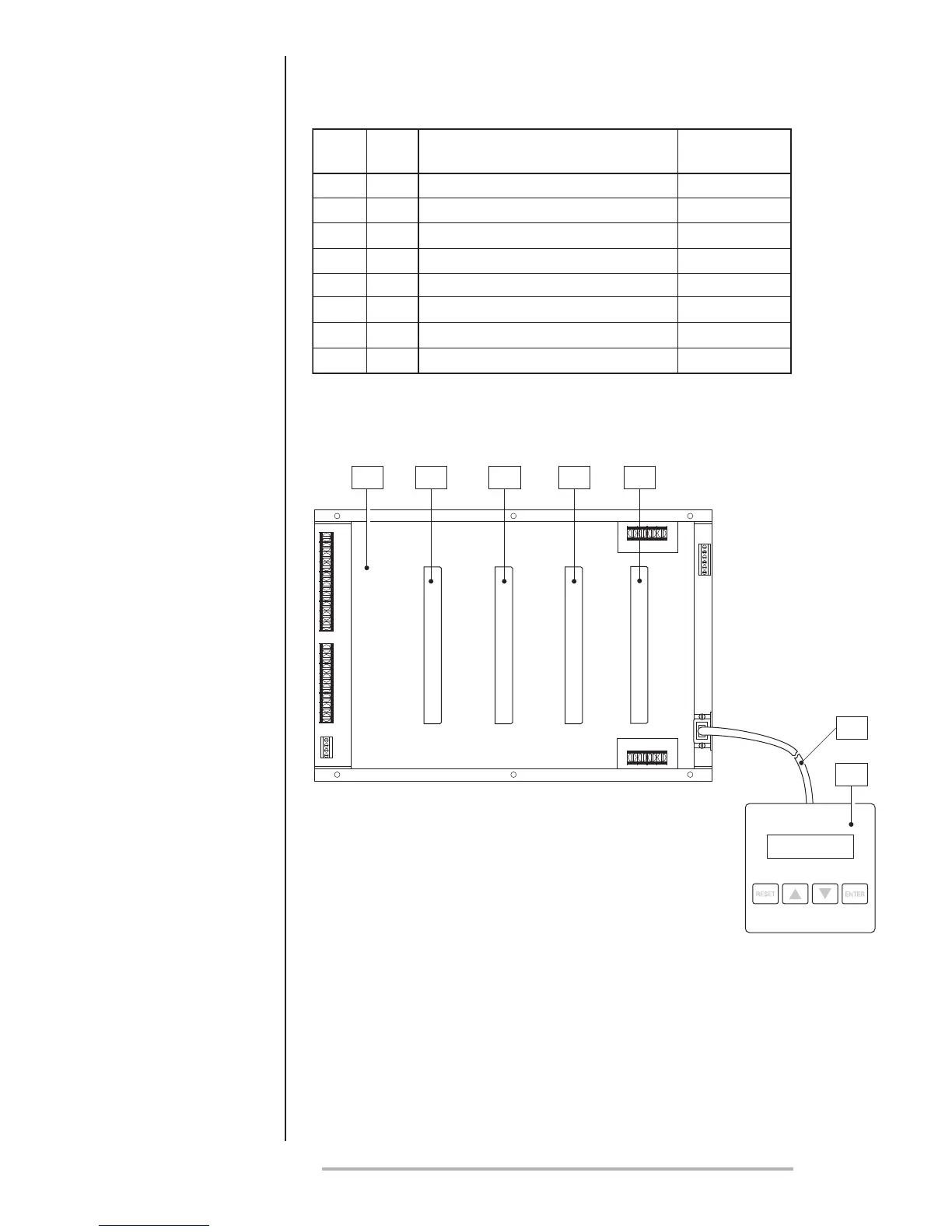

ILLUSTRATED PARTS
LIST
1
2 3 4
7
6
View shown with cover removed.
Pos.
No.
Qty. Description
Eclipse
Part Number
Mother Board (6500M)
Relay module circuit board
Logic module circuit board
Power module circuit board
Sensor circuit board
183 cm (6ft) cable for remote display
305 cm (10ft) cable for remote display
Remote display with keypad
1
2
3
4
5
6
6
7
1
1
1
1
1
1
1
1
20315
22494
22495
22496
20314
15426
15426-1
15422
Downtimes due to a failure can be kept to a minimum by stocking
recommended spares.
5
