Eclipse Combustion 6500 - Dimensions; Main Chassis

Eclipse Bi-Flame v1.8, Instruction Manual 826, 05/03
9

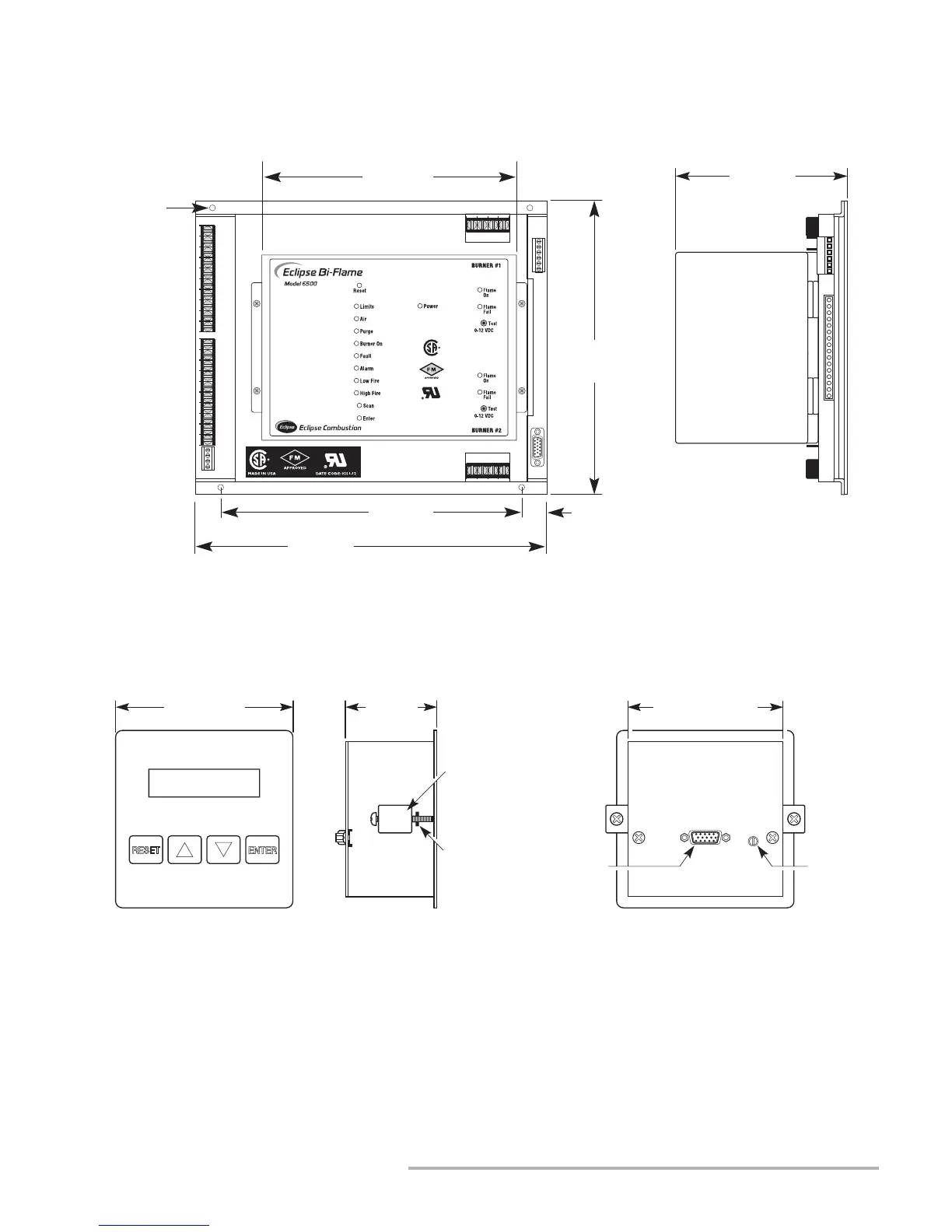

DIMENSIONS
Mounting
Holes (4)
5 mm
(3/16") Dia.
237 mm
(9-5/16")
270 mm
(10-5/8")
229 mm
(9")
21 mm
(13/16")
183 mm
(7-3/16")
140 mm
(5-1/2")
Remote Display (Shown with remote keypad and reset)
15-pin
Port
Terminal
Contrast
Adjustment
Slot
54 mm
(2-1/8")
102 mm
(4") Square
89 mm
(3-1/2") Square
Mounting
Bracket &
Screw (2)
Mounting
Bracket
Slot (4)
Main Chassis
