Eclipse Bi-Flame v1.8, Instruction Manual 826, 05/03
7
The Eclipse Combustion Bi-Flame Burner Monitoring System
controls the start-up sequence and monitors the flame of two
individual gas, oil, or combination gas/oil burners connected to a
common valve train. Its dynamic on-board testing checks for
faulty relays, proof of valve closure, high and low fire switch
interlocks, and shorted air switch.
The microcomputer based system features a plug-in modular
design so any of the circuit board modules attached to the
motherboard can be replaced when power is removed. Its DIP
switches allow sequence and timing functions, as well as system
configuration. It is also capable of modulation (high and low fire
purging) and monitoring up to four auxiliary inputs, history
logging, and interfacing to valve leakage detection devices. It is UL
recognized, FM approved and CSA certified.

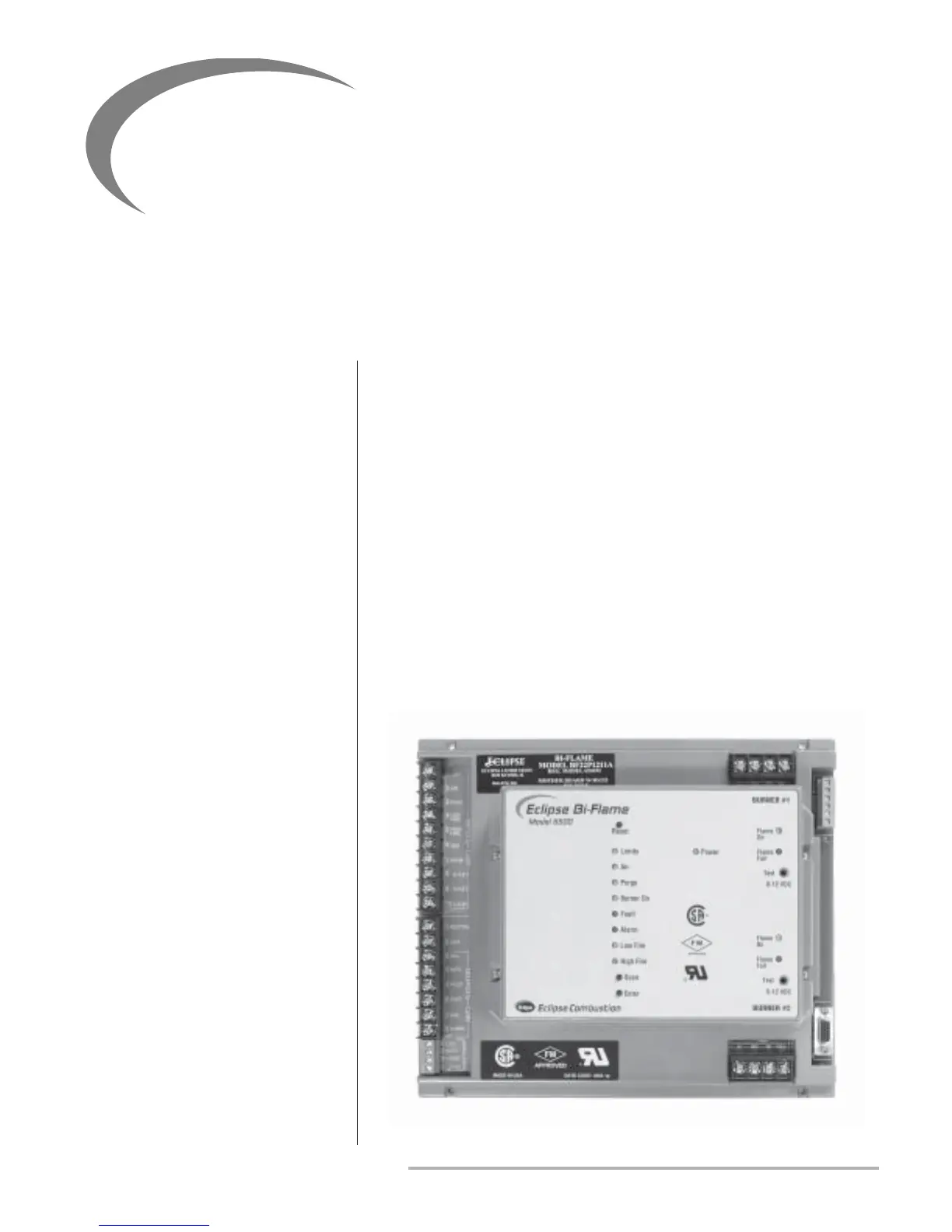

Figure 1.1
Bi-Flame Burner Monitoring System
