Eclipse CD3000 Installation Manual

-
9
-
Español Français Italiano
Nederlands
SvenskaEnglish

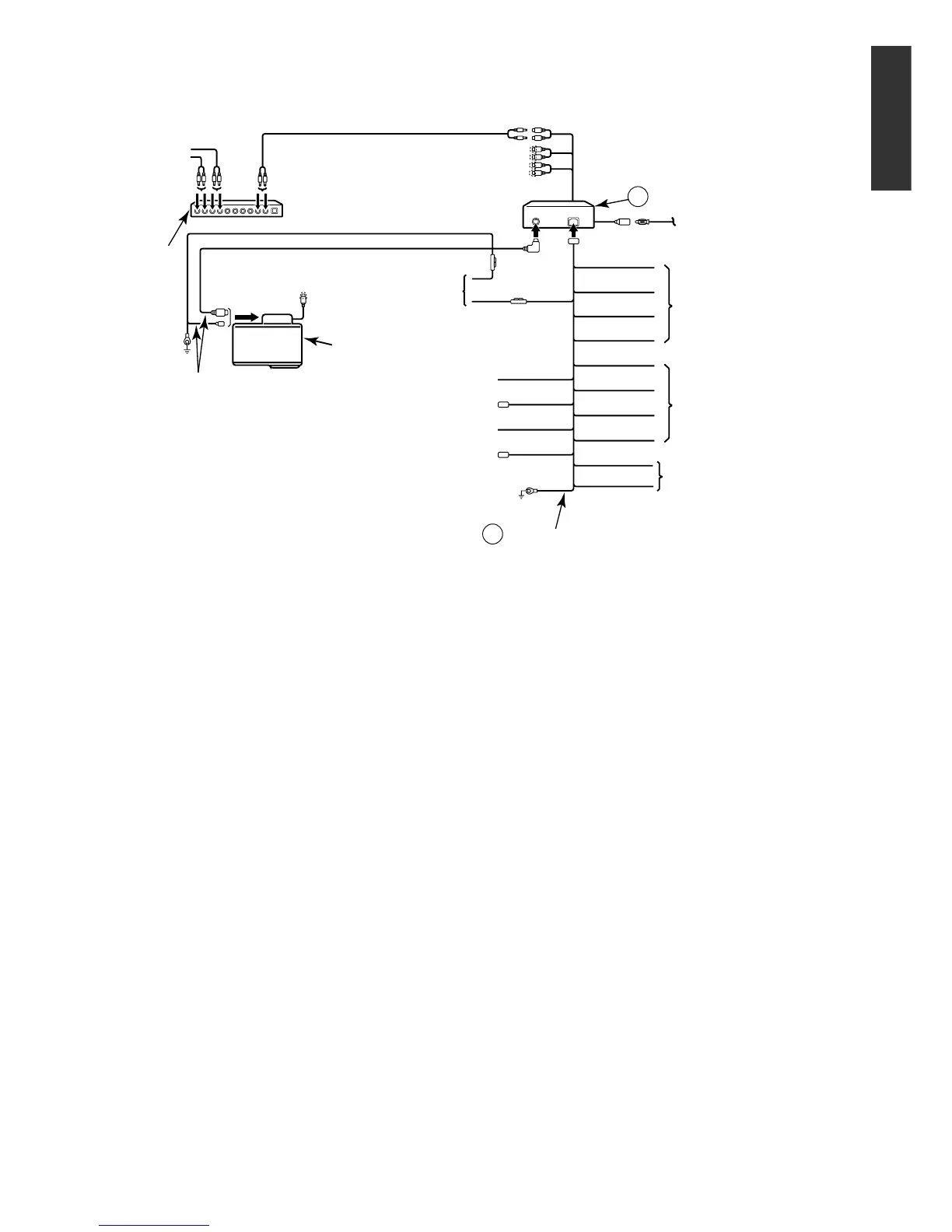

2) CD3000 + CH3083 + 21010 + Power Amplifer
21010
(sold
separately)
TO SIGNAL INPUT
OF EXTERNAL
POWER
AMPLIFIER
TO GROUND
TO ACC (Power Supply)
Red
TO HEAD LIGHT SWITCH (Illumination (+) )
Orange/White
TO POWER ANTENNA RELAY (Supply)
Blue
Blue/White
Yellow
Black
16P
ANTENNA PLUG
MAIN UNIT
1
INTERCONNECTING WIRES
(Power and speaker connector)
2
TO STEERING REMOTE CONTROL
White
White/Black
Gray
Gray/Black
Green
Green/Black
Purple
Purple/Black
Brown
Brown/Black
NO CONNECTION (Do not remove cap)
CH3083
(sold separately)
INTERCONNECTING WIRES
(supplied with CH3083)
13P
2P
NO CONNECTION
(Do not remove cap)
TO BATTERY+12V
(Permanent Supply)
13P
NO CONNECTION (Do not remove cap)
Yellow
NON-FADER
INSULATE EACH WIRE WITH NONE
CONDUCTING TAPE SUCH AS
PLASTIC TAPE OR ANOTHER
INSULATING METHOD
INSULATE EACH WIRE WITH NONE
CONDUCTING TAPE SUCH AS
PLASTIC TAPE OR ANOTHER
INSULATING METHOD
TO TURN-ON WIRE OF EXTERNAL EQUIPMENT (Supply)
TO GROUND
