8
-
System connection e
System connection e
xample
xample
••
Never cut the insulation on the power wire or use it to power any other equipment. If the rated current
capacity of the power wire is exceeded, fire and electric shocks may result.
••
The wires should be secured with tape or a similar securing method to prevent any obstructions while
driving. If they get wound or entangled around components such as the steering wheel, shifting lever,
or brake pedal, accidents may result.
••
If removing the end of the wire to connect to another wire, be sure to wrap PVC tape or a similar wire
insulating method around the connection to insulate it. If the connection is not insulated, fire or
accidents may result.
••
Install and connect all of the peripheral equipment before connecting them to the main unit.
••
Do not remove any of the protective caps (RCA, etc.) unless in use.
••
Be sure to wrap the connection wires with tape (PVC tape) to insulate them.
••
Adjust the external amplifier’s input level.
Tip
English Español Français Italiano
Nederlands
SvenskaEnglish

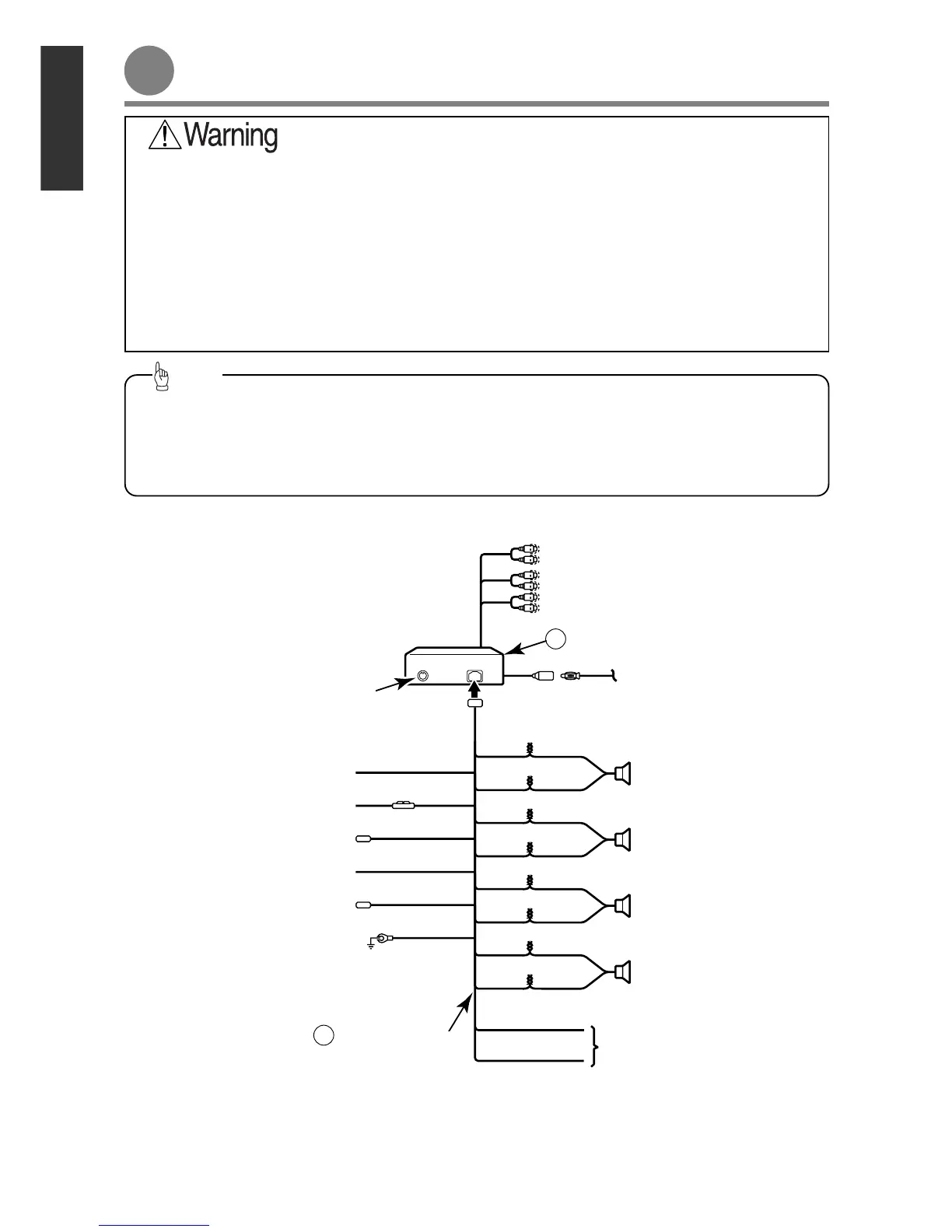

1) CD3000 Main unit, used alone
REAR
SPEAKERS
FRONT
SPEAKERS
TO GROUND
TO ACC (Power Supply)
Red
TO HEAD LIGHT SWITCH (Illumination (+) )
Orange/White
TO POWER ANTENNA RELAY (Supply)
Blue
TO TURN-ON WIRE OF EXTERNAL EQUIPMENT (Supply)
Blue/White
TO BATTERY+12V (Permanent Supply)
Yellow
Black
16P
ANTENNA PLUG
MAIN UNIT
1
NO CONNECTION (Do not remove cap)
TO STEERING REMOTE CONTROL
White
White/Black
Gray
Gray/Black
Green
Green/Black
Purple
Purple/Black
Brown
Brown/Black
NO CONNECTION (Do not remove cap)
NO CONNECTION (Do not remove cap)
To Next Page
