Main unit connections
Front line-out terminals
Connect to the RCA connector of an external amplifier.
Rear line-out terminals
Connect to the RCA connector of an external amplifier.
Line-out terminals (Non fader)
This is used for non fader output. It can be used as a sub-woofer terminal if a separate amplifier with
a low bass filter is connected.
E-LAN terminal (13P)
Connect to the E-LAN terminal of the CD changer, etc.
A
B
C
D
Vehicle component adapter wires
Vehicle harness
From main unit
-

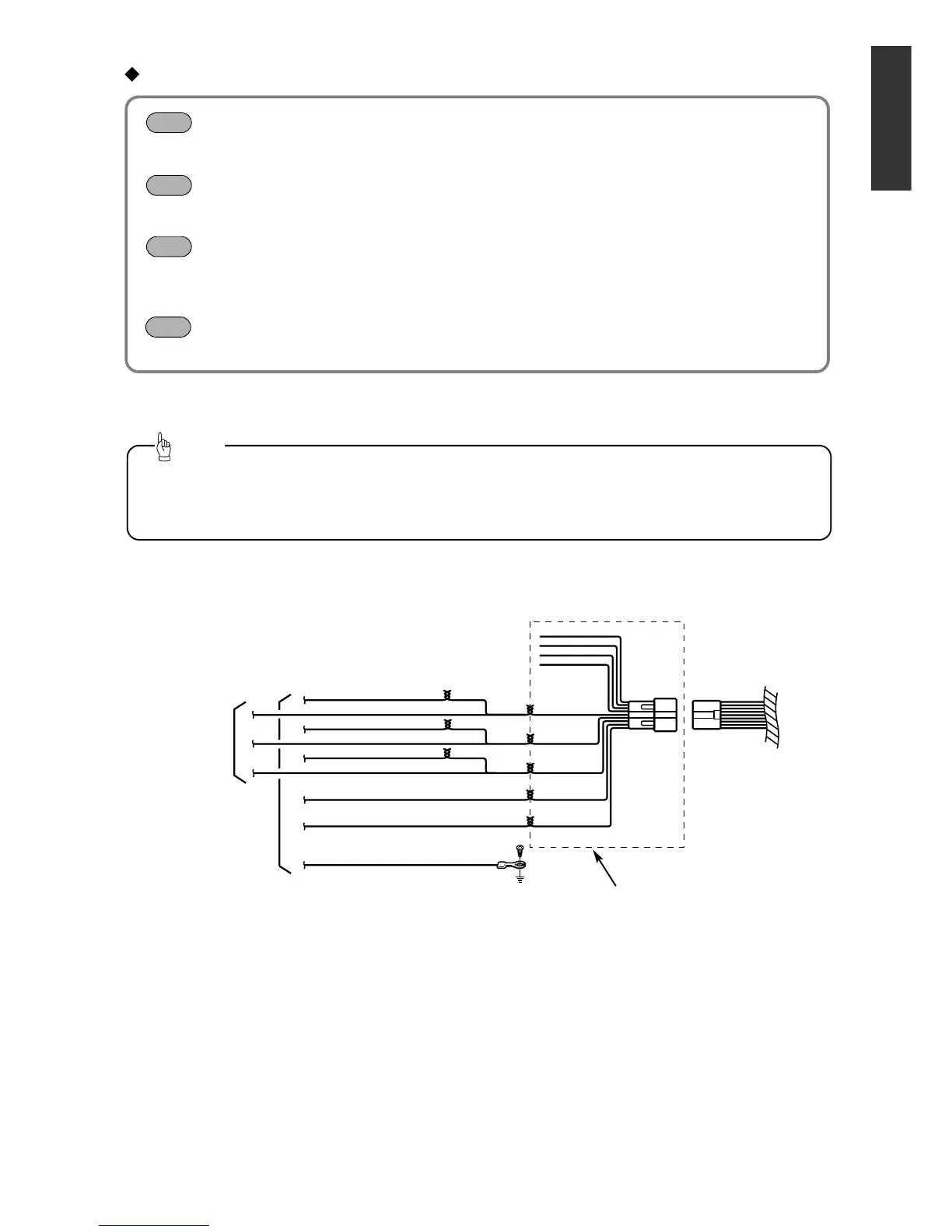

Example of using vehicle adapter wires
-
-
Vehicle connections
-
••
You will need to purchase the necessary vehicle component adapter wire for the vehicle so that the
power supplies can be utilized. (Contact the dealer for further details.)
••
Be sure to wrap the connection wires with electrical tape or another insulation method to insulate them.
