61

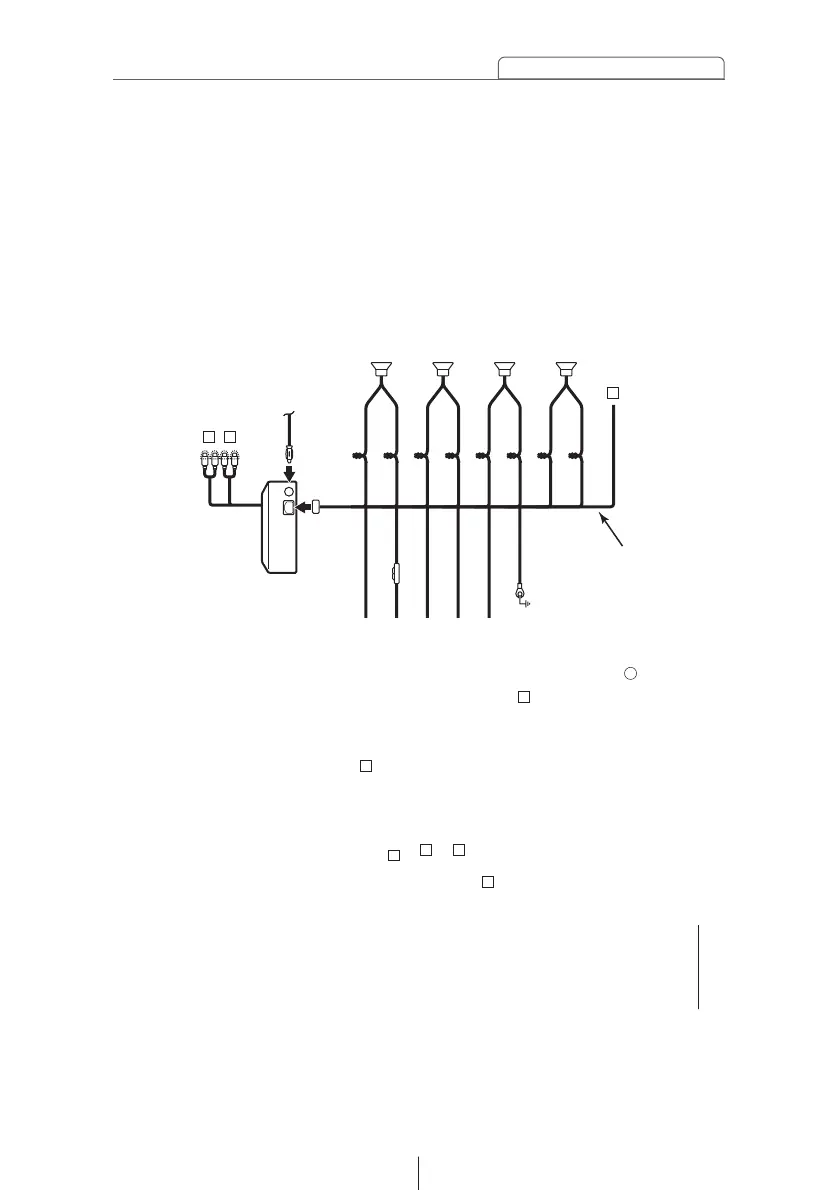

Mounting instruction
ANTENNA PLUG
CD3404
TO BA
TTERY + 12V (Permanent Supply)
INTERCONNECTING CABLE
2
16P
Y
ellow
Blue
Orange/White
Blue/White
Black
Red
TO GROUND
3
CELLULAR PHONE
10
FRONT
8
REAR
7
12
TO POWER ANTENNA RELA
Y (Supply)
TO HEADLIGHT SWITCH (Illumination)
TO TURN-ON LEAD OF EACH UNIT (Supply)
TO ACC (Power Supply)
White
(+)
(–)
(+)
(+)
(+)
(–)
(–)
(–)
White/Black
Gray
Gray/Black
Green
Green/Black
Purple
Purple/Black
Pink
1
4
5
6
1) CD3404 Receiver
, used alone
Caution
Never connect the power supply to the speaker leads, otherwise it cause damage to the main unit.
60
62
Table of Contents
Default Chapter
7
Table of Contents
7
Operating Precautions
10
Notes on Operation
10
About Compact Discs
11
About Cleaning a CD
13
Names of Controls and Parts
14
ESN Security Operating Procedure
15
About ESN
15
How to Operate the ESN (Key CD) Security
16
How to Program the Key CD
16
How to Cancel the Key CD
17
How to Change the Key CD
18
How to Resume Normal Operation (ESN Security Lock Out)
18
What Happens if an Incorrect CD Is Inserted
19
How to Turn the Security Indicator On/Off
20
How to Read the Electronic Serial Number
20
Basic Operation
21
Turning the Power on and off
21
Listening to a CD
22
Listening to the Tuner
23
Adjusting Audio Volume
23
Switching Audio Control Modes
24
VOL (VOLUME) Mode
24
BASS Mode
24
TREB (TREBLE) Mode
24
BAL (BALANCE) Mode
25
FAD (FADER) Mode
25
Enabling the Loudness Control
25
Making Changes with Function Mode
26
Disabling the Guide Tone Feature (for Button Operation)
26
Setting the Time
27
How to Operate the CD Player
28
Listening to Cds
28
Advancing to the Next Track or Returning to the Beginning of the Track Being Played
29
Fast Forward/Rewind
29
Playing the Beginning of Tracks (SCAN)
29
Repeating the same Track (REPEAT)
30
Playing Tracks in Random Order (RANDOM)
30
Ejecting the Disc
31
Switching the Display
31
How to Operate the Tuner
32
Tuning to a Station
32
Entering Stations into Memory Automatically (the Automatic Preset Mode: ASM)
33
Manually Setting Stations into Memory
34
Preset Station Scan
35
Switching the Display
35
Changing the Reception Sensitivity for Automatic Scanning
36
Changing the Radio Band Location
36
FM Reception Characteristics
37
FM Reception Differs from am
37
Fading out
37
Reception Area of FM Broadcasts
38
Multipath
38
How to Use an Optional Card Remote Control
39
Precautions in Use of the Remote Control
39
Cleaning the Remote Control
39
Turning the Power On/Off
40
Adjusting the Audio Volume
40
Cutting the Volume Instantly (Muting)
40
Switching Playback Modes
41
How to Play the Tuner
41
Selecting the FM/AM Band
41
Selecting a Station (Manually or Automatically)
42
Selecting Preset Stations
42
How to Play Cds
42
Swithcing Disc Mode
42
Advancing to the Next Track or Returning to the Beginning of the Track Being Played
43
Replacing the Battery
44
How to Use an Optional NOB Remote Control
45
Turning the Power On/Off
45
Adjusting the Audio Volume
45
Cutting the Volume Instantly (Muting)
45
Switching Playback Modes
46
How to Play the Tuner
46
Selecting the FM/AM Band
46
Selecting a Station (Manually or Automatically)
47
Selecting Preset Stations
47
How to Play Cds
47
Swithcing Disc Mode
47
Advancing to the Next Track or Returning to the Beginning of the Track Being Played
48
Replacing the Battery
49
If You Have a Question
51
Displayed Information (for Troubleshooting)
52
Specifications
55
Before Installation
56
Components
56
Installation Angle
56
Mounting Instruction
57
Mounting the Main Unit
57
Names of Lead Wires and Destinations
59
System
60
How to Contact Customer Service
64
