Yearly Checklist
1
5
1
c
1
1. Leak test the safety shut-off valves for tightness of closure.
2. Test the pr essure switch settings by checking the switch
mov ements against pressure settings and comparing these
with the actual impulse pressure.
3. Visually check igniter cable and connectors.
4. Inspect impulse piping for leaks.
5. Be sure the following components are not damaged or
distorted:
 the burner nozzle.
 the igniter.
 the flame sensors.
 the combustion tube or block.
The nozzle can be inspected without removing the burner
fr om the chamber wall or entering the chamber. Perform the
following:
a. Shut the burner off and manually close the main gas
shut off cocks.
b. Allow the chamber temperature to cool down to 250°F
(121°C).
c. Disconnect the gas piping at a union or the gas inlet
flange 1 pro vided on the burner.
d. Remove the four bolts 2 .
c
Caution:
Do not attempt to remove rearcover by removing the inner
circle bolts 5 . Internal burner parts will be damaged.
e. Remove the rear cover 3 from the burner housing 4 .
f. To reassemble, follow this sequence in the reverse
order.
n
Note:
The combustor can be inspected only by removing the burner
from the chamber wall or entering the chamber.

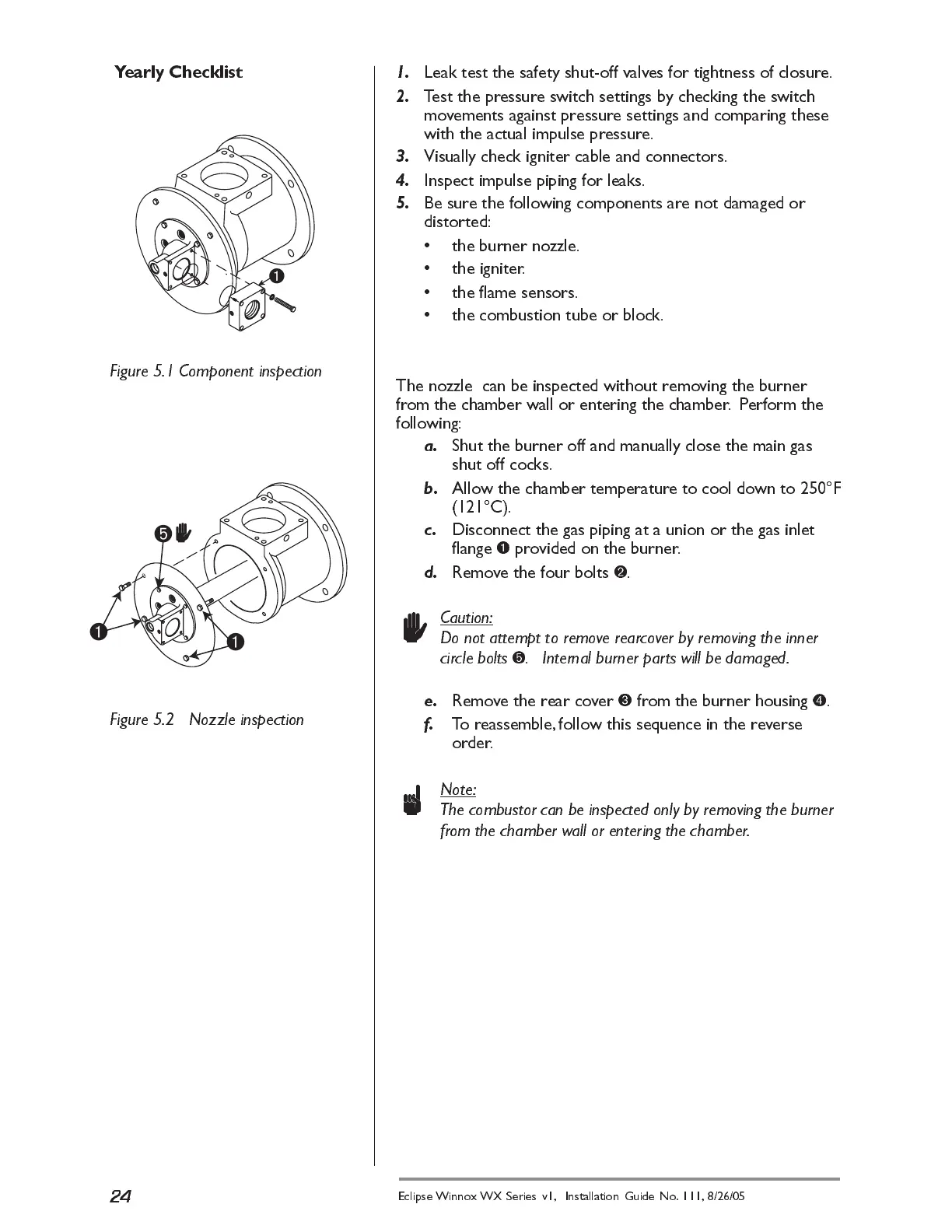

Figure 5.1 Component inspection
Figure 5.2 Nozzle inspection
