Ecoflam Blu 350.1 - Page 15

pag.15
LBR10 KROMSCHRÖDER VCS
IT
EN
FR
ES

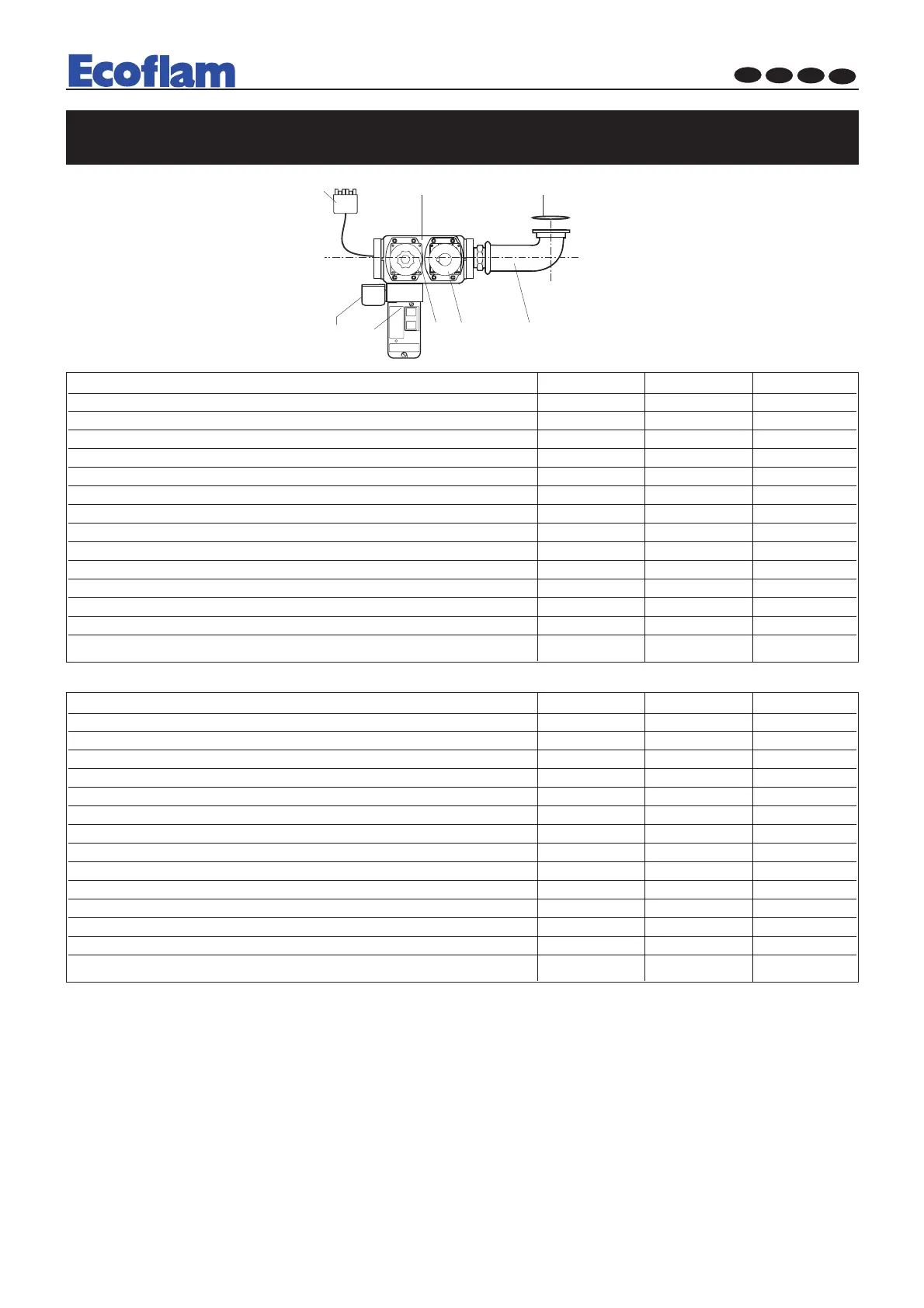

COMPONENTI RAMPA GAS / GAS TRAIN PARTS
PIECES DU RAMPE DU GAZ / COMPONENTES VÁLVULA DE GAS
N° Descrizione GRRG011 GRRG012 GRRG013
1 - TUBO RAMPA GAS BFV01011/2 BFV01011/2 BFV01011/2
2 - PRESSOSTATO GAS KROMSCH.DG 40/VC Q128/1 --
3 - VALVOLA GAS KROMSCH.VCS 125R/LW V1997/1 - -
KROMSCH.VCS 240R/LW - V1997/2 -
KROMSCH.VCS 350R/LW - - V1997/3
4 - BOBINA VALVOLA GAS KROMSCH.VCS 125R/W V243/01 - -
KROMSCH.VCS 240R/W - V243/02 -
KROMSCH.VCS 350R/W - - V243/03
5 - BOBINA VALVOLA GAS KROMSCH.VCS 125L/W V243/01 - -
KROMSCH.VCS 240L/W - V243/02 -
KROMSCH.VCS 350R/W - - V243/03
6 - KIT CONTROLLO DI TENUTA Dungs VPS 504 KITVPSVCS KITVPSVCS KITVPSVCS
7 - PRESA WIELAND 6 poli E226/1 E226/1 E226/1
8 - GUARNIZIONE Y601/44 Y601/44 Y601/44
5
6
4
2
1
7
8
3
N° Description GRRG011 GRRG012 GRRG013
1 - GAS TRAIN PIPE BFV01011/2 BFV01011/2 BFV01011/2
2 - GAS PRESSURE SWITCH KROMSCH.DG 40/VC Q128/1 --
3 - GAS VALVE KROMSCH.VCS 125R/LW V1997/1 - -
KROMSCH.VCS 240R/LW - V1997/2 -
KROMSCH.VCS 350R/LW - - V1997/3
4 - COIL KROMSCH.VCS 125R/W V243/01 - -
KROMSCH.VCS 240R/W - V243/02 -
KROMSCH.VCS 350R/W - - V243/03
5 - COIL KROMSCH.VCS 125L/W V243/01 - -
KROMSCH.VCS 240L/W - V243/02 -
KROMSCH.VCS 350R/W - - V243/03
6 - KIT LEAKAGE CONTROL Dungs VPS 504 KITVPSVCS KITVPSVCS KITVPSVCS
7 - SOCKET WIELAND 6 pin E226/1 E226/1 E226/1
8 - GASKET Y601/44 Y601/44 Y601/44
