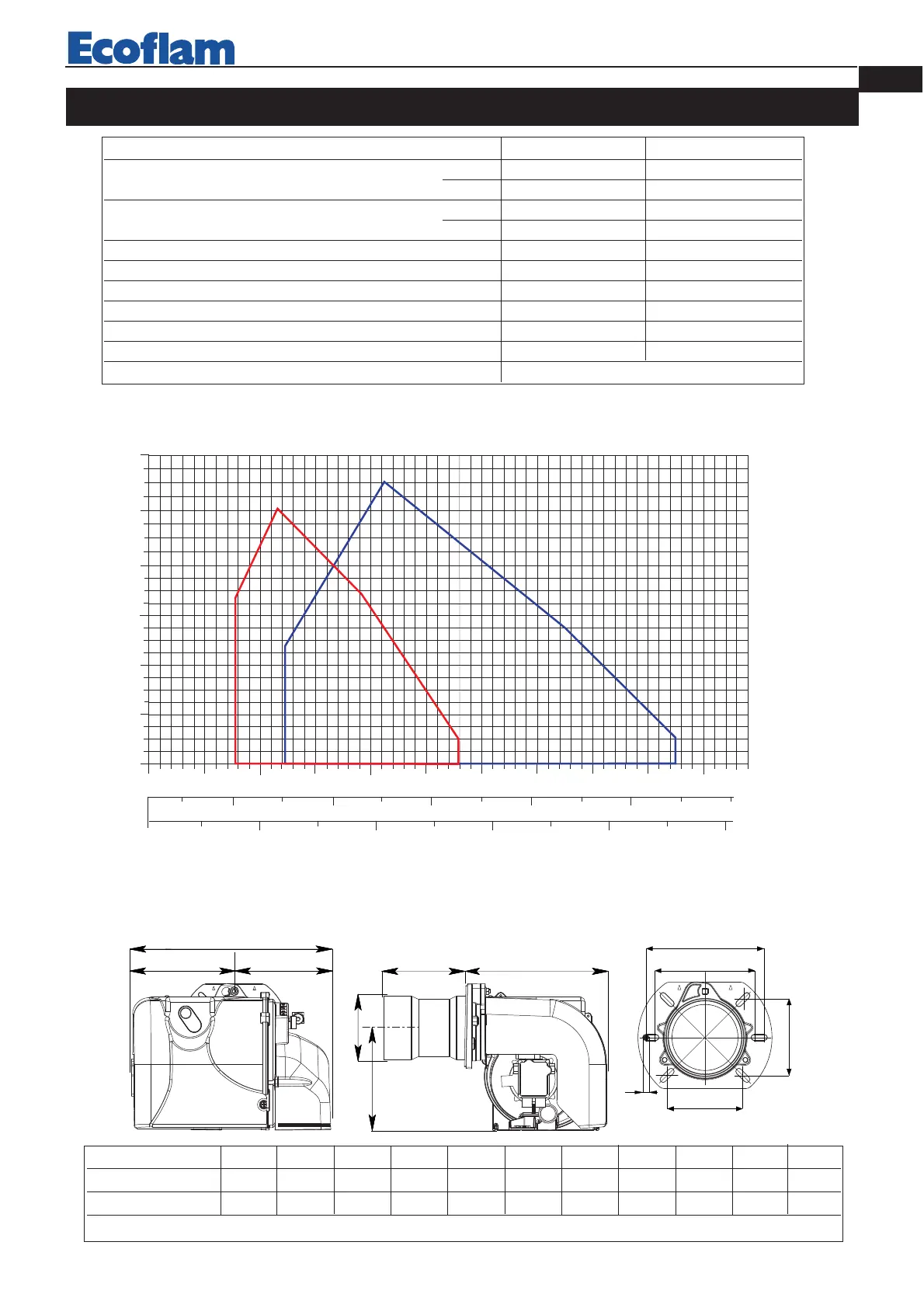

Ecoflam MAX P 15 - Working Fields; Overall Dimensions

TECHNICAL DATA
OVERALL DIMENSIONS
MODELS MAX P15/P15 AB MAX P25/P25 AB
Thermal power max. kcal/h 163.800 259.080
kW 190 300
Thermal power min. kcal/h 66.300 87.720
kW 77 102
Max. flow rate light oil kg/h 16 25,4
Min. flow rate light oil kg/h 6,5 8,6
Feeding power 50 (60) Hz V 230 230
Motor W 130 200
Rpm Nº 2.800 (3.400) 2.800 (3.400)
Control box LANDIS LOA 24 LOA 24
Fuel: light oil kcal/kg 10.200 max. visc 1,5°E a 20°C
25 100 125
150
175
200 225 250
50 75
0
1
2
3
4
100 150 200 250 300
10 15 20 255
mbar
kcal/h
x 1000
kg/h
kW
275
5
6
MAX P 25
MAX P 25 AB
50
MAX P 15
MAX P 15 AB
WORKING FIELDS
PRESSURE IN THE COMBUSTION CHAMBER
BURNER OUTPUT
7
420010355103 Max P15-25 / P15-25 AB
EN
E
D-D1
F
G
BC
A
I
L
M
153
185
MODELS
ABCDD1EFG ILM
MAX P15/P15 AB 392 202 190 160 260 276 107 201 120-131 120-131 M 8
MAX P25/P25 AB 392 202 190 160 260 276 125 201 120-131 120-131 M 8
D = short head D1 = long head
