Ecolab Chameleon PLUS BW3 - Layout Floor Booster BF3 - BF4 - BF8

8
Fig. 7
110001499
Fig. 8 110001500

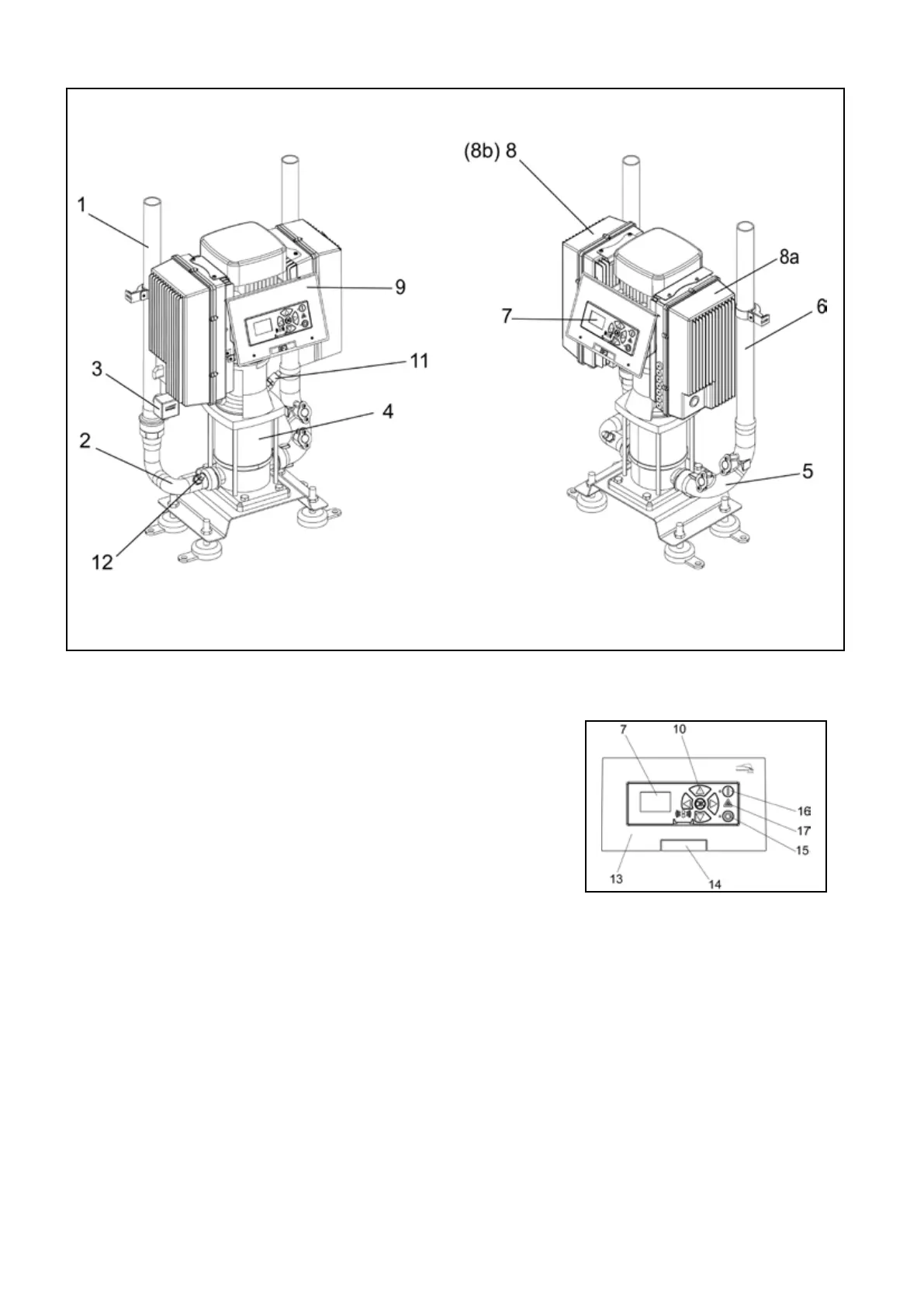

1.5 Advanced Booster BF3 - BF4 - BF8
(Fig. 6).
1. Water inlet
2. Manifold inlet
3. Trigger sensor, ow sensor
4. Pump
5. Manifold outlet
6. Outlet pipe
7. Display
8. El- box ( BF3 - BF4)
8a. Inverter box
8b. Filter box (only used on BF8 and bigger)
9. Operations panel
10. Navigation buttoms
11. Pressur sensor (Outlet)
12. Pressur sensor (Inlet)
13. Label
14. Name Label
15. • O Pushbutton.Stop
16. • I Pushbutton.Start
17. • Δ Lamp. Alight by error
