Ecolab Chameleon PLUS BW3 - Operation Diagrams Floor Booster BF3 - BF4 - BF8

9
0627269

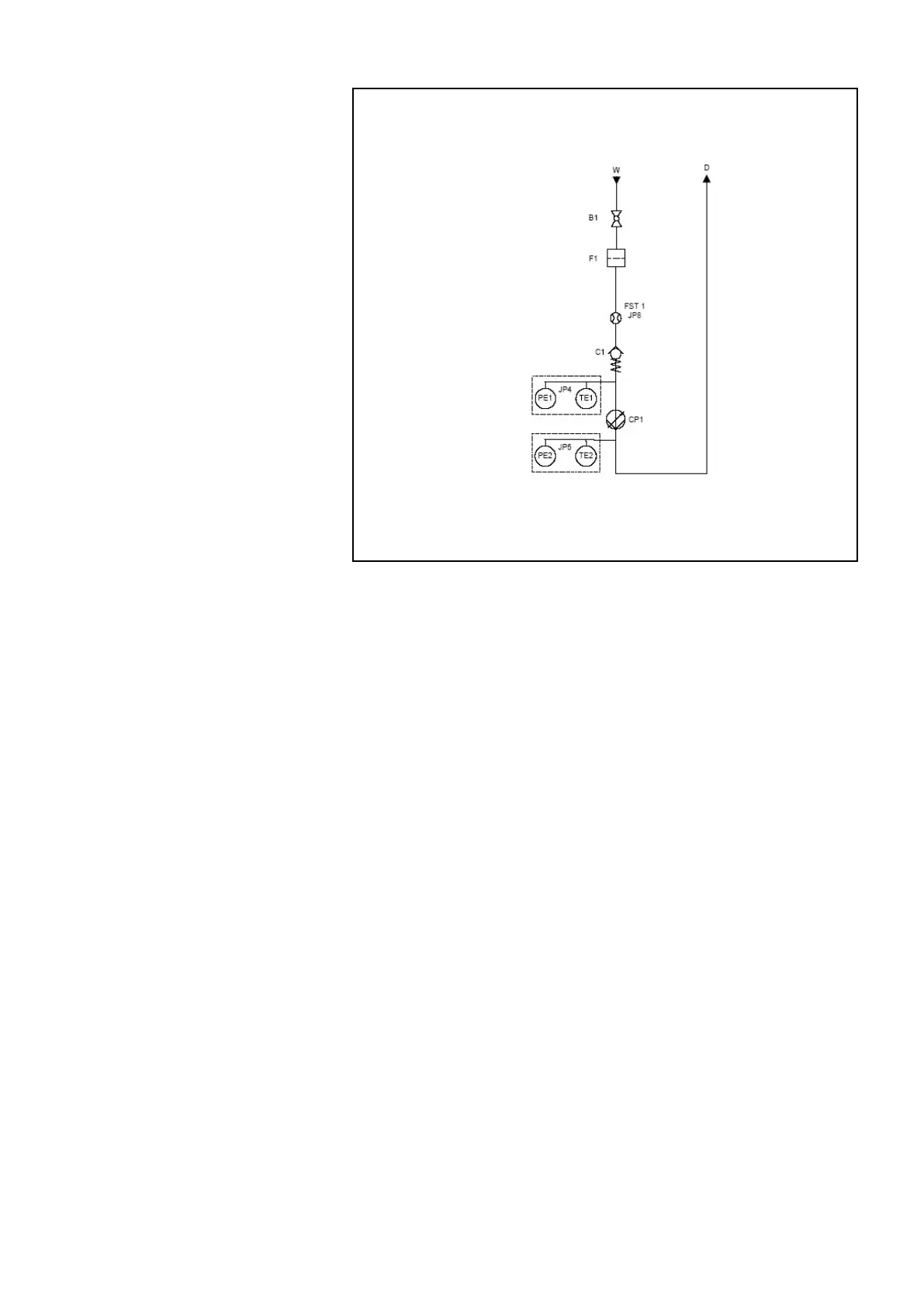

1.6 Operating Diagrams acc.
ISO14617
Advanced Booster BF3 - BF4 - BF8
B. Ball valve.
F. Filter.
FST. Flowsensor and -trigger.
C. Check valve.
PE. Pressure sensor.
TE. Temperature sensor.
CP. Centrifugal pump.
D. Outlet.
W. Water inlet.
SN : Socket no.
