8. Product Bottle Installation/Removal
a. Open the dispenser cover
b. Remove the protective cap from the end of the pump on the bottle.
c. Invert the bottle and insert the bottle flat against the back of the dispenser with
the label facing forward. The collar on the pump is inserted into the pump
holder on the dispenser.
d. Close the cover
e. Place a hand under the dispenser and activate the dispenser multiple times
until the pump is primed and product is dispensed into the hand.
f. When the product package is empty, follow step 2 to open the cover. Once the
cover is open grasp the sides of the bottle and pull straight out.

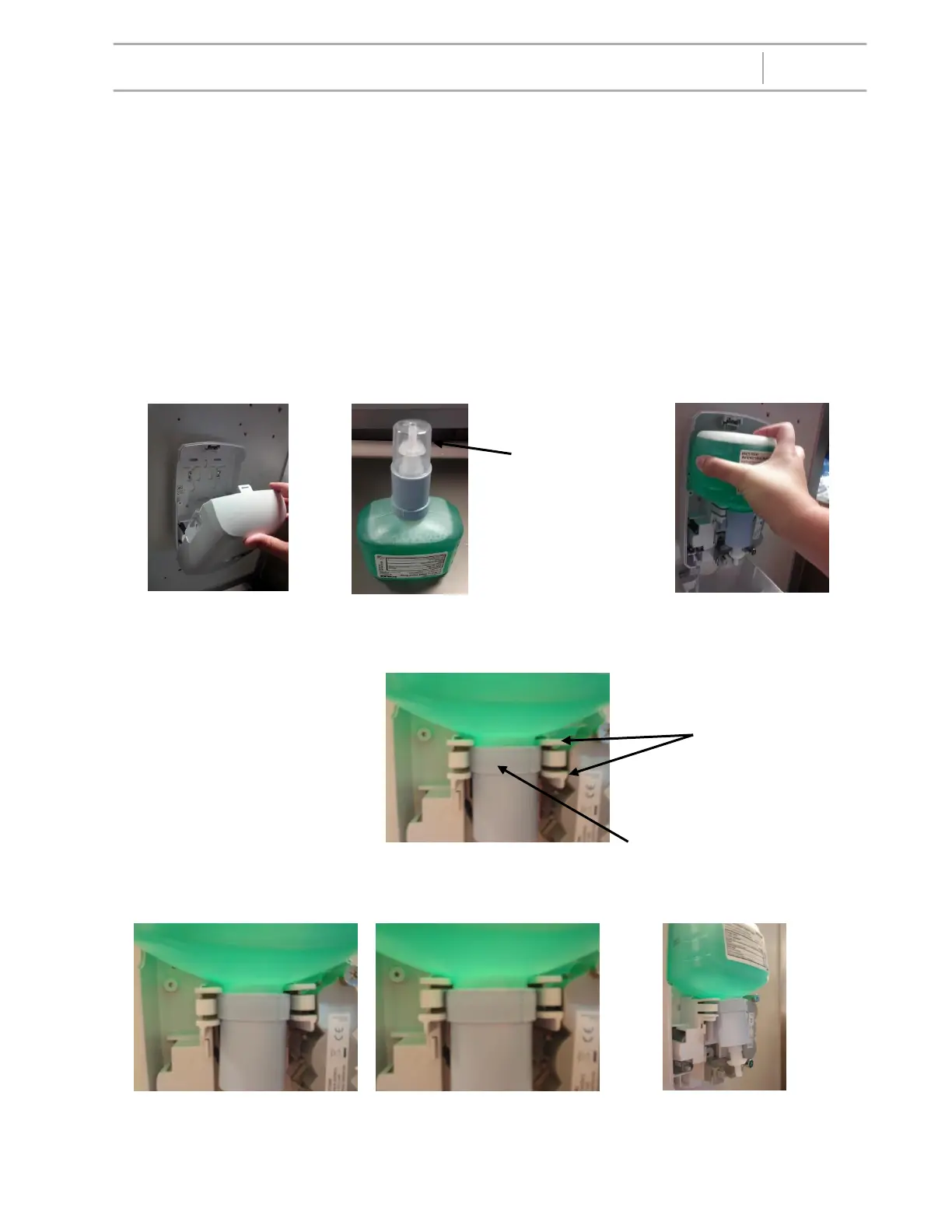

CORRECT POSITION
WRONG WRONG WRONG
PROPER DOCKING- PUMP
COLLAR IS BETWEEN UPPER AND
LOWER FLANGES
RIGHT SIDE OF PUMP
COLLAR IS TOO LOW
PUMP COLLAR IS TOO LOW-
BELOW LOWER FLANGE
PUMP IS NOT PUSHED BACK
FAR ENOUGH
PUMP COLLAR
UPPER AND
LOWER FLANGES
(ON BOTH SIDES)
REMOVE
PROTECTIVE CAP
