Folding the bike

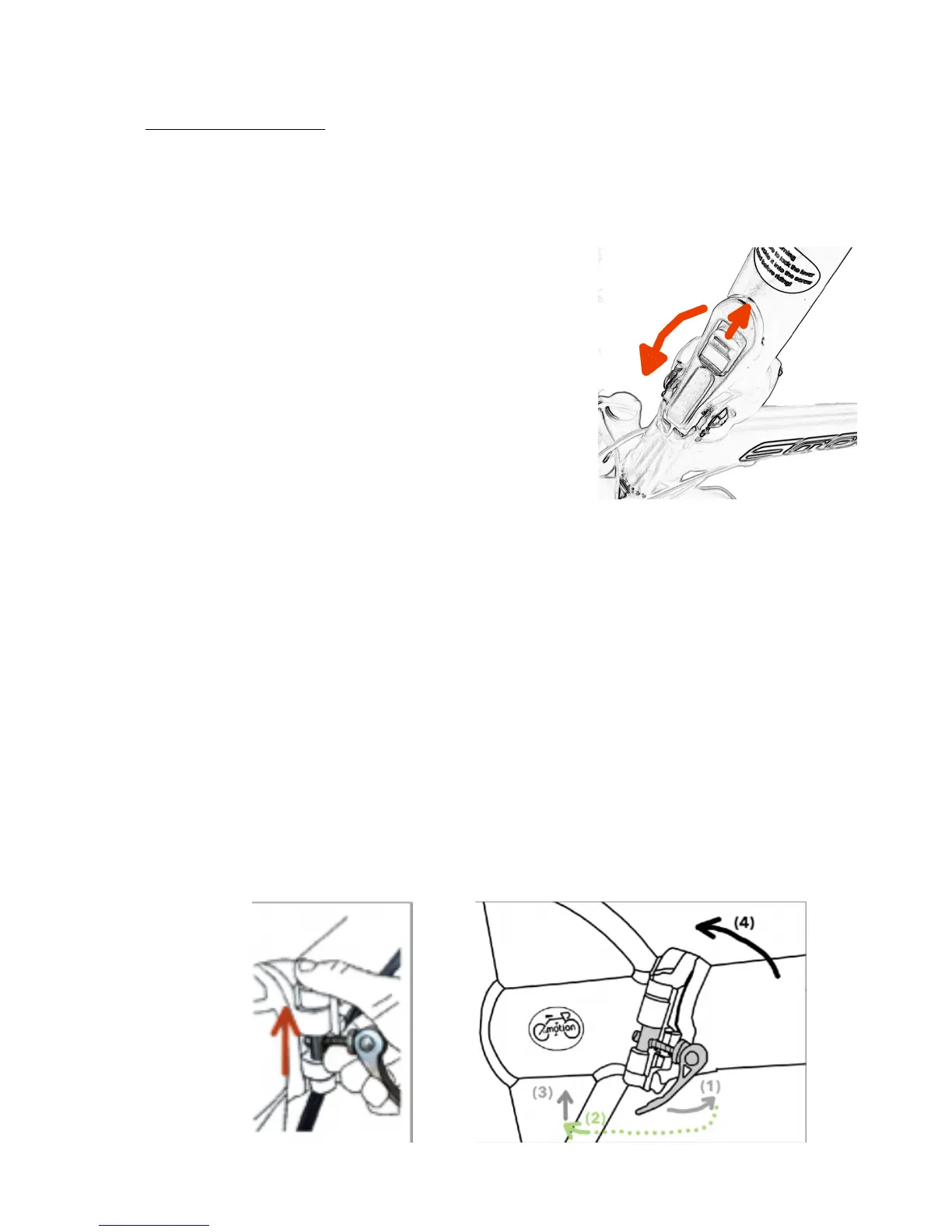

Folding the handlebar:
(1) Lower the handlebar to its lower position and lock it.!
(2) Pull-up the folding mechanism lock.!
(3)Fold down the mechanism's lever.!
(4) Fold down the handlebar itself.
Raising the handlebar:!
(1) Straighten the handlebar. !
(2) Lock the folding lever by locking it into!
the stem. !
Folding the frame:
(1) Unlock the folding mechanism lever. !
(2) Open the lever towards the rear side of the bicycle.!
(3) Lift up the lever until a click is heard (double lock
mechanism).!
(4) Folding up the bike frame
Return the frame to a riding position:!
!
(3) Lift up the folding mechanism lever.!
(4) Return the frame to its unfolded position!
(2) Close back the lever. !
(1) Lock the lever to its place.
