4.9.2 PCU-D – Proportional Control Unit Direct Current

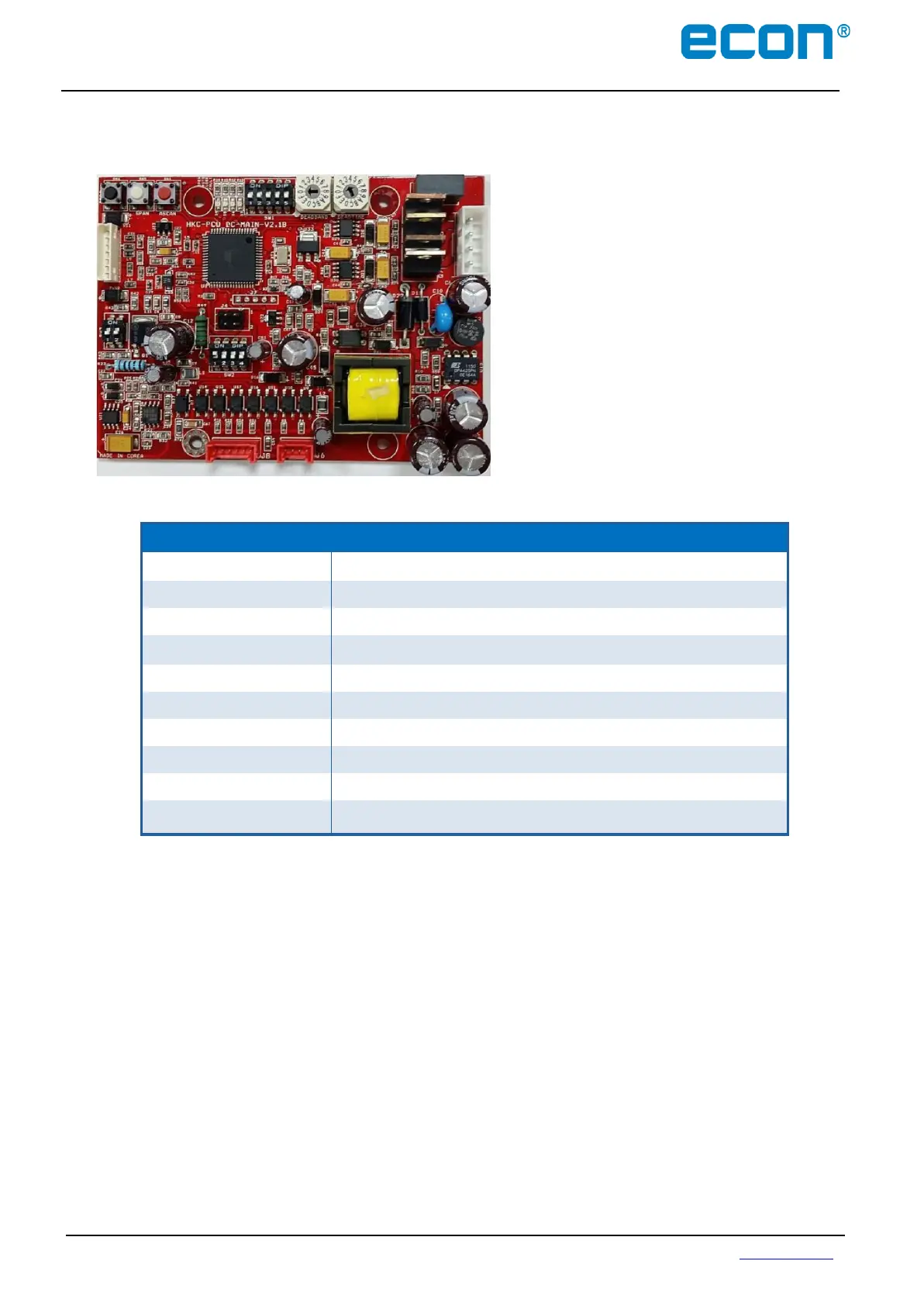

PCU-D High Performance Controller, using a
10 bit A/D converter and 8 bit microprocessor
technology
PCU-D Features
Model
PCU-D
Power
24V DC Voltage ± 15%, Max. 36V DC
Input Signal
4~20mA DC, 1~5V DC, 2~10V DC, 0~5V DC, 0~10V DC
Input Impedance
250Ω
Output Signal
4~20mA DC, 1~5V DC, 2~10V DC, 0~5V DC, 0~10V DC
Output Impedance
250Ω Max
Deadtime Adjustment
0.05 ~ 7.5 seconds
Deadband Adjustment
0.0625~1mA (0.0625mA + step no. x 0.0625mA, 15 steps total)
Ambient Temperature
-25°C (-13°F) up to +80°C (176°F)
Ambient Humidity
90% RH Max (non-condensation)
The factory settings of the PCU card are normally set according to the customer requirements at the
time of order. However, we strongly recommend that input power, signal input selection and DIP switches
are to be verified prior to the actuator start up.
Settings the PCU functions are shown in paragraph 4.9.3 and 4.9.4.

Econ ELA100 Specifications

General

Brand	Econ
Model	ELA100
Category	Controller
Language	English
