Note
The analyzer must be in Command mode before
the Data Acquire mode can be used. If the program
was last used in Remote Terminal mode, the
analyzer may still be in Remote mode. See section
4.6.2.2 for further details.
Note
Data Acquire mode only retrieves data already
logged by the analyzer. To remotely instruct the
analyzer to log data, use the Remote Terminal
mode.
4.6.1.2 Viewing the Acquired Data
If the communication was successful, a table of data similar to the below will be
displayed:

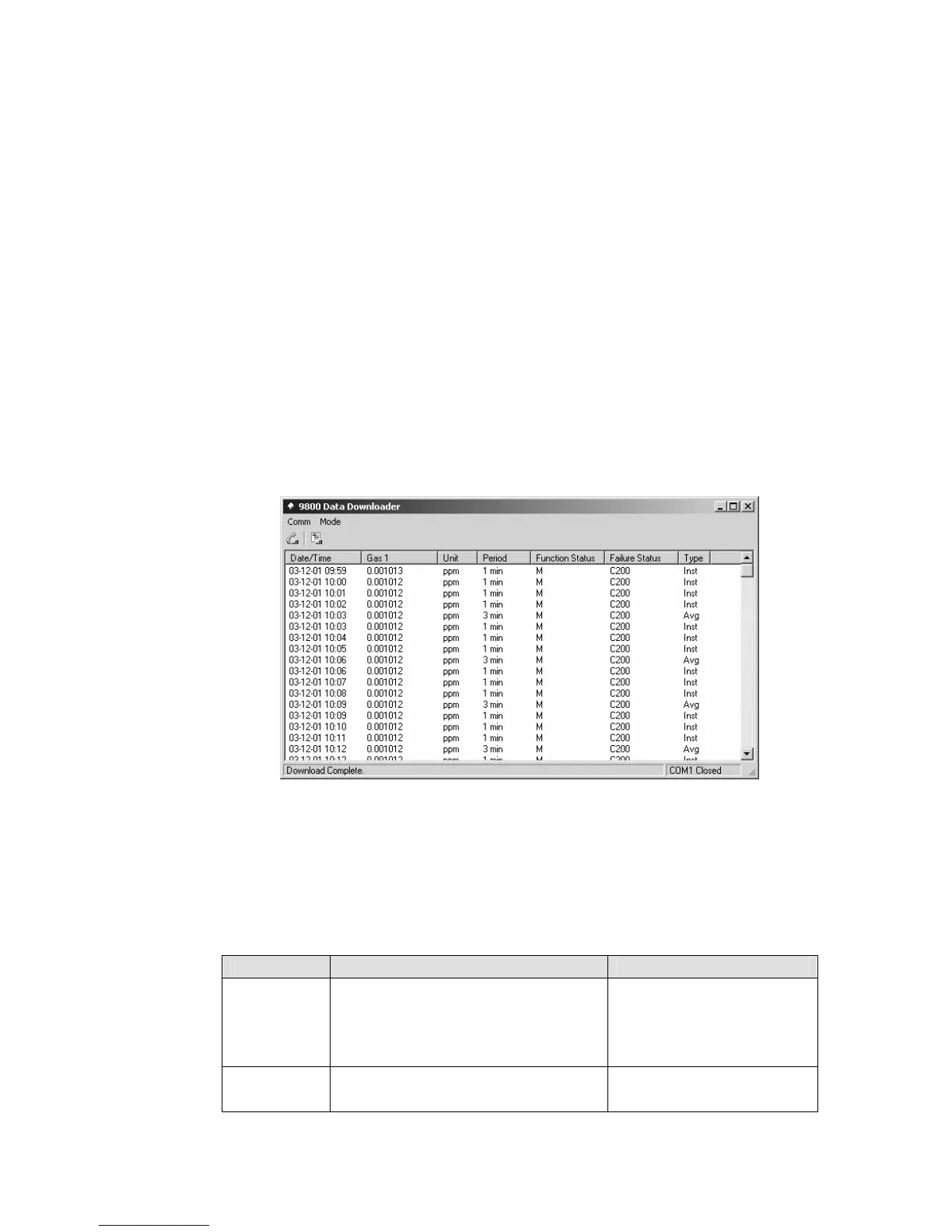

Figure 4-5. Acquired Data completion screenshot
The same data is displayed in the output text file, as set on the Output tab of the
Settings dialog box, with the fields delimited by commas. A description of each
field follows below.
Field On-screen In text file
Date/Time
The date/time, in the format
selected in the Output tab of the
Settings dialog box, when the data
in that row were recorded.
As for on-screen
(Data)
Up to three channels of analyzer
data, with column headings as set
As for on-screen
