UAV engine EFI installation manual-DLE120-V1.4
Copy right ECOTRONS LLC http://www.ecotrons.com
We use the "Perf-SW", performance switch, wire to connect the ALM input. Most of EFI
has this “Perf-SW” switch, you need tap the linear output of wideband controller to the
wires of performance switch.

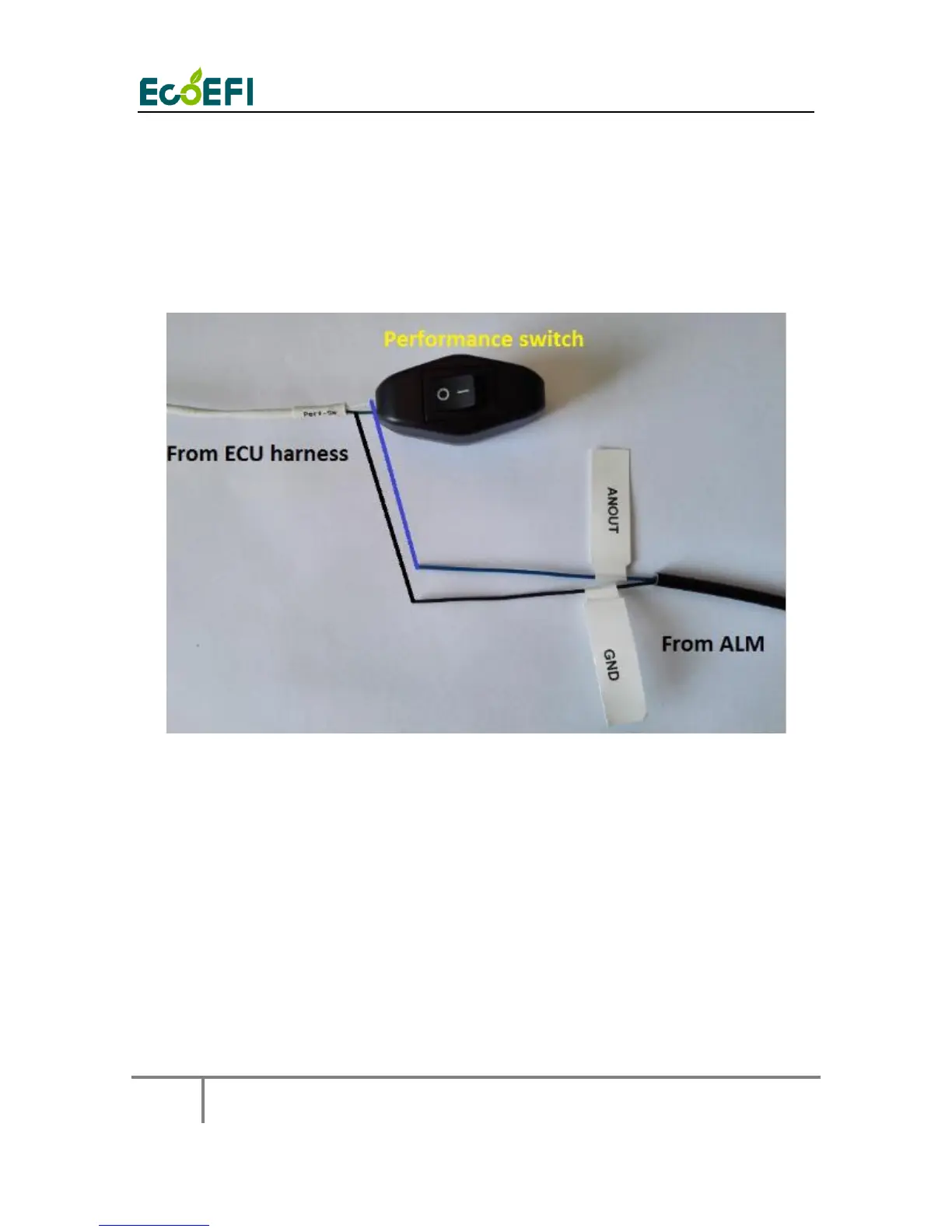

Please connect it by using following pictures.
Connection
Connect the ANOUT to the white wire of performance switch
Connect the GND to the green wire of performance switch.
Warning: You need set the performance switch be “O” side, if not; it will not
read the real-time lambda correctly
