UAV engine EFI installation manual-DLE120-V1.4
Copy right ECOTRONS LLC http://www.ecotrons.com
Chapter 1 EFI installation

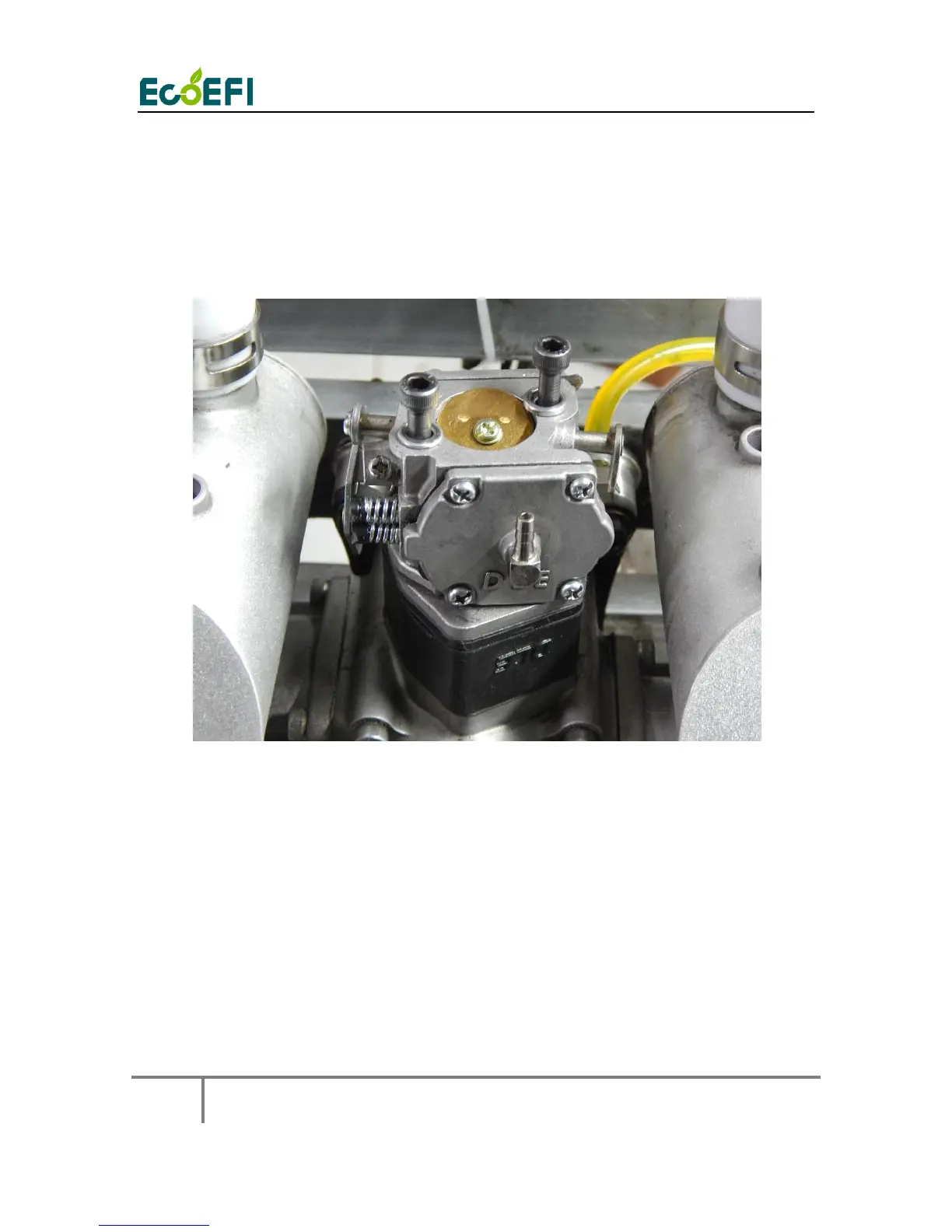

1.1 Remove the stock carburetor and install the
throttle body
Note: the stock DLE 120 carburetor is about 22mm diameter outlet. The Ecotrons throttle
body is also 22mm diameter. So it is a bolt-on replacement.
Note: Ecotrons Small throttle body is designed to replace the stock carburetor and has
the same or similar spacing as the carburetor, so that you can bolt on the throttle body.
Ecotrons throttle body is designed to mount the Futaba servo motor easily. So the
complete throttle body / servo is compact and light.
Ecotrons Small throttle body is designed to mount Ecotrons’ small engine injectors. It
comes with the injector fittings and thread-on fuel lines. The injector flow rates: 30g/min,
38, 60, 80, 128, 190, 248g/min etc.
