UAV engine EFI installation manual-DLE120-V1.4
7
Copy right ECOTRONS LLC http://www.ecotrons.com

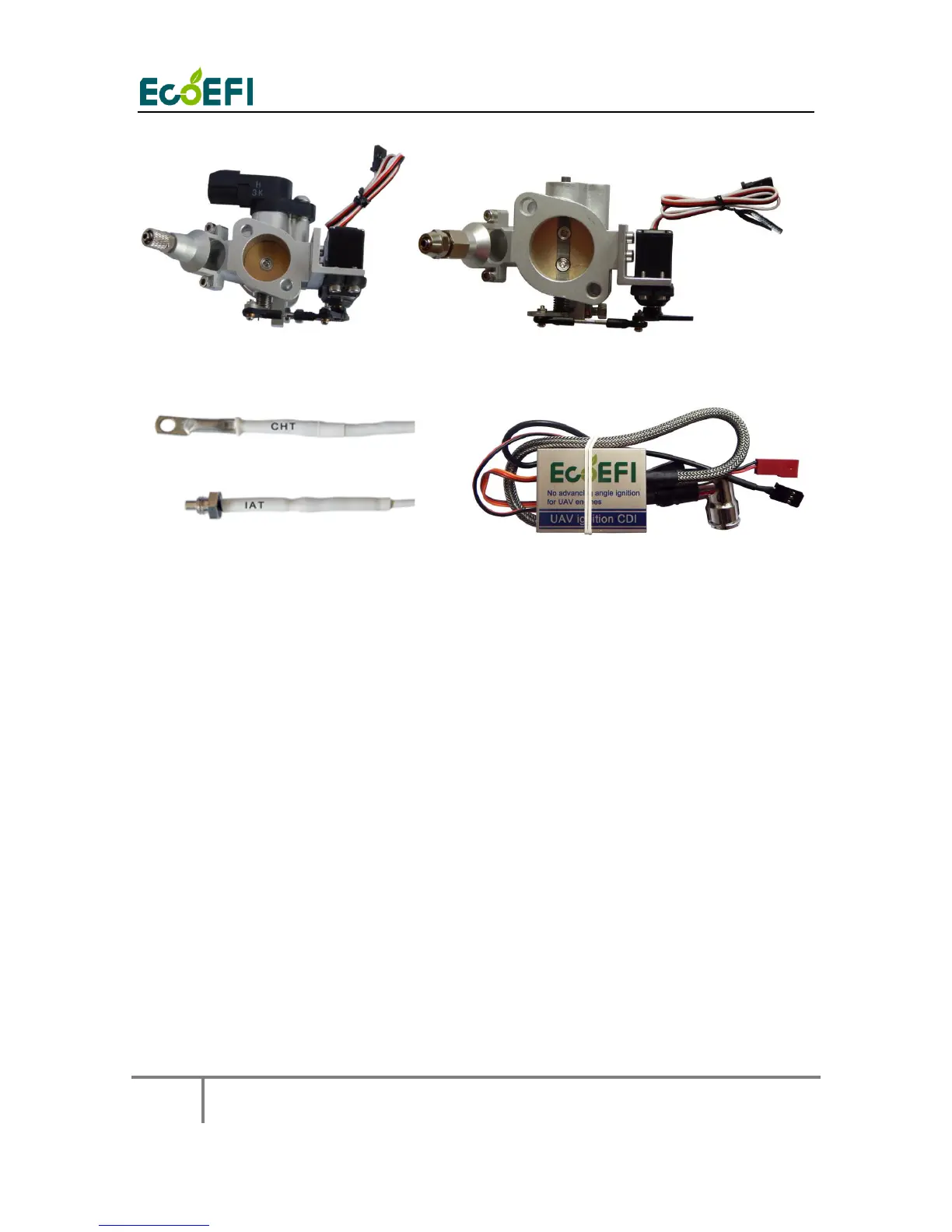

Throttle body with TPS and Servo motor Throttle body with Servo motor
Engine temperature and intake air temperature Ecotrons CDI Unit
