UAV engine EFI installation manual-DLE120-V1.4
Copy right ECOTRONS LLC http://www.ecotrons.com
And we also have 14mm, 18mm, 22mm, 28mm throttle body for UAV engines, so we can
provide the UAV EFI kit for different engines with different displacement.
Some engines, you can use the throttle body to replace the carburetor completely, and
for some engines, you need make the adapter to bolt on the throttle body.
Note: Some custom system comes with the throttle position sensor, so if you want to use
the throttle position sensor, you also need to install the TPS sensor on the throttle body.

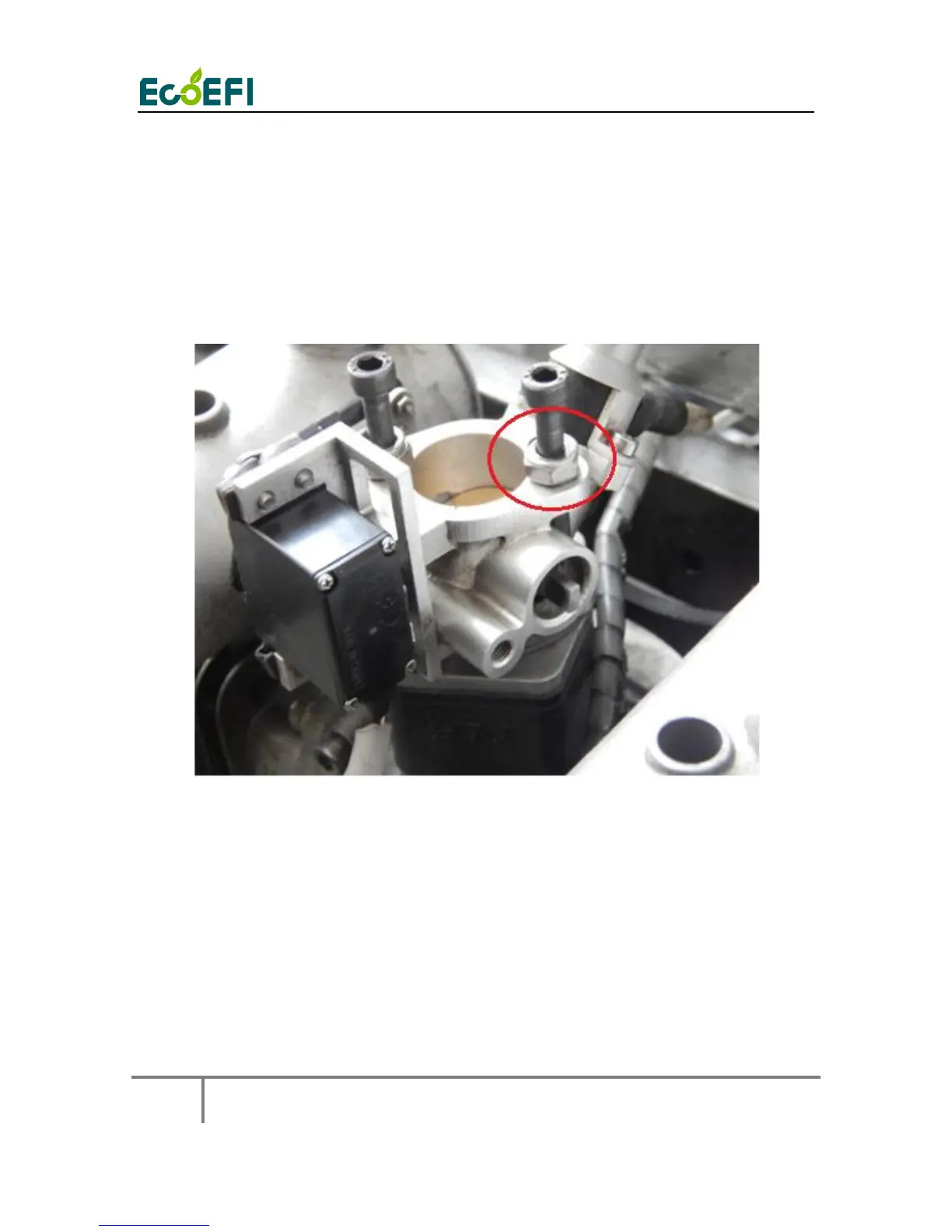

Note：Because the stock blot is too long, so you cannot use them to bolt on the throttle
body directly. You may need to add a suitable washer/ nut, as shown in this picture.
Or cut the stock blot short.
