EcoWater EEC 1502R40 - Dimensions

OUTLET
INLET
39"
18"
DIA.
SIDE VIEW FRONT VIEW
INLET - OUTLET
D
C
A
B
4
ECOWATER
S Y S T E M S

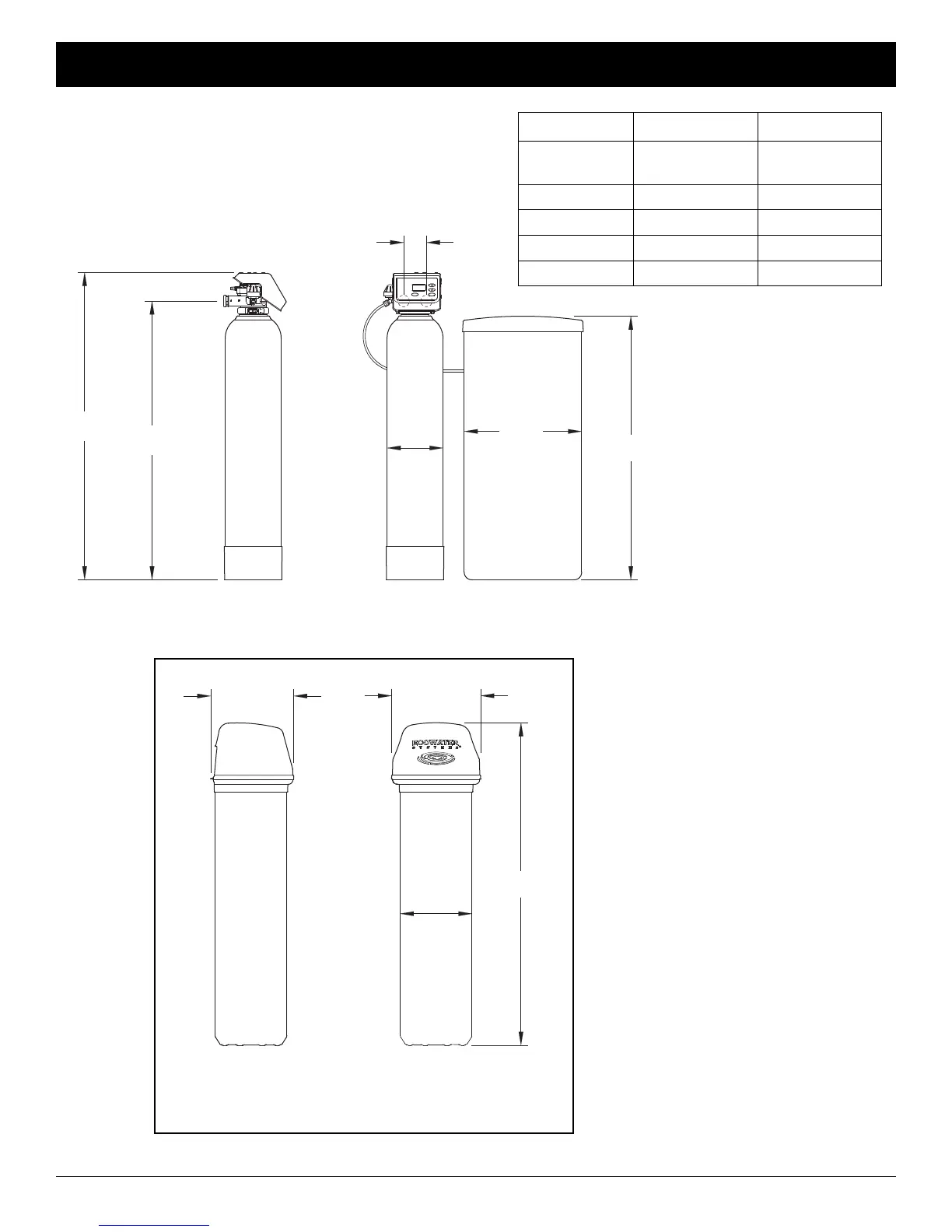

Dimensions
EEC 1502R25 EEC 1502R40
Nominal Resin
Tank Size
8” dia. x 40” tall 9” dia. x 40” tall
A 45-1/2” 47”
B 41-3/8” 41-3/4”
C 3-3/8” 3-3/4”
D 8-1/4” dia. 9-1/4” dia.
FIG. 1
39”
FRONT VIEWSIDE VIEW
C
D
DIMENSIONS
18”
DIA.
INLETOUTLET
INLET - OUTLET
A
B
10-5/8"
DIA.
48"
13-1/4"
12-3/8"
FRONT VIEW
SIDE VIEW
SHROUD KIT - Not Included
48”
FRONT VIEWSIDE VIEW
10-5/8”
DIA.
12-3/8” 13-1/4”
