EcoWater EEC 1502R40 - Typical Installation Illustrations

6
ECOWATER
S Y S T E M S

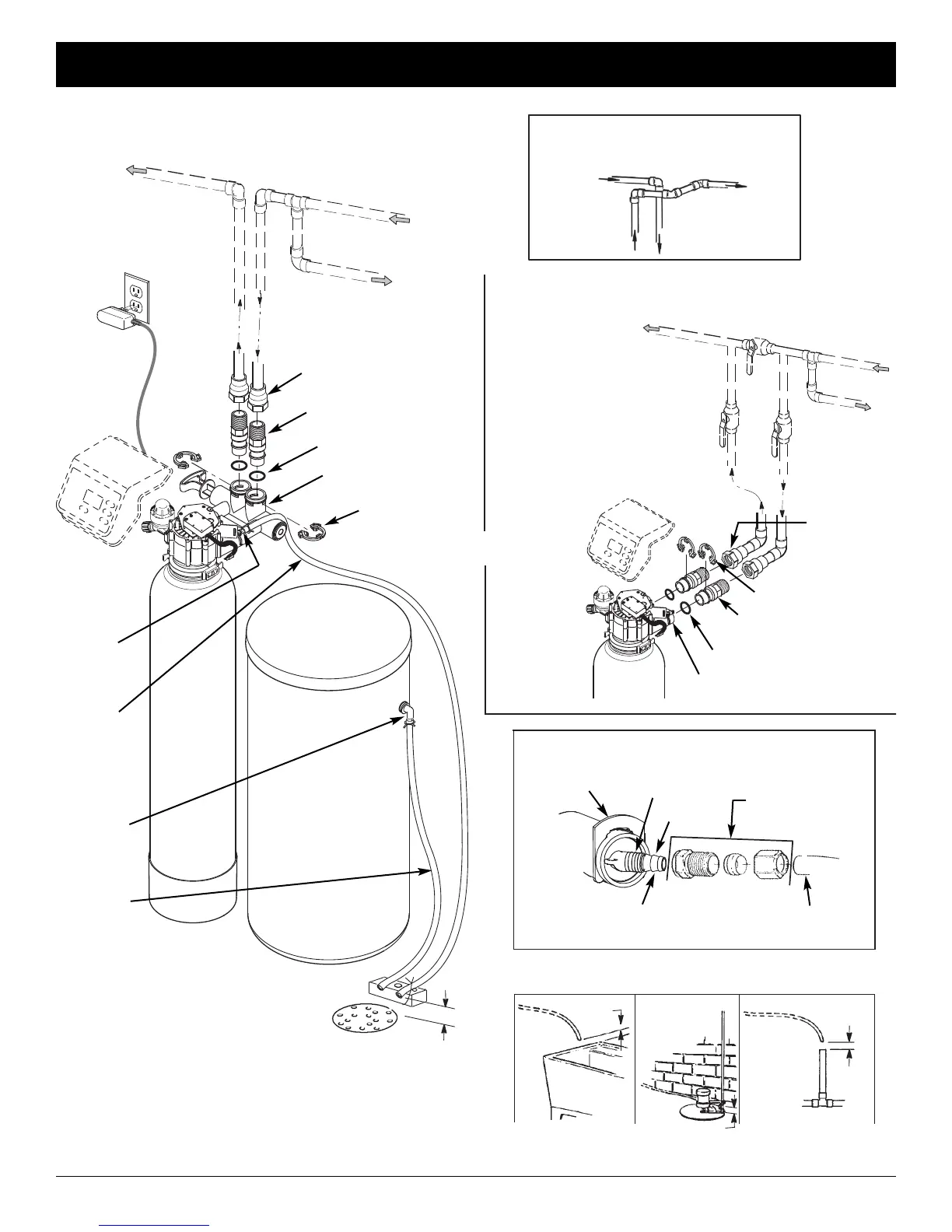

Typical Installation Illustrations
Soft Water
OUT
INSTALLATION USING ECOWATER BYPASS VALVE
MAIN WATER PIPE
Hard Water
IN
FIG. 4
INSTALLATION USING 3-VALVE BYPASS
MAIN WATER PIPE
BYPASS
Valve
OUTLET
Valve
INLET
Valve
For soft water SERVICE:
-Open the inlet and outlet
valves
For hard water BYPASS:
-Close the inlet and outlet
valves
-Open the bypass valve
CROSS-OVER
Use if water supply flows from the left.
Include single or 3-valve bypass.
HARD
WATER
TO SOFTENER
INLET
SOFT
WATER
FROM SOFTENER
OUTLET
Hard Water
to Outside
Faucets
120V,
60 Hz
Outlet
* Included with softener - Pipe
and fittings supplied by installer.
1” NPT
Adaptor (2)
not included
1” NPT Installation
Adaptor (2)*
EcoWater
Bypass Valve
Clip (4)*
O-Ring Seal (2)*
1” NPT
Adaptor (2)
not included
Clip (2)*
O-Ring Seal (2)*
1” NPT Installation
Adaptor (2)*
Valve INLET
1-1/2”
Air Gap
1-1/2”
Air Gap
1-1/2” Air Gap
LAUNDRY
TUB
SUMP
STAND
PIPE
To standpipe, sump, laundry tub or other suitable drain.
CONNECTING A RIGID VALVE DRAIN TUBE
Compression Fitting.
1/4 NPT x 1/2” O.D.
Tube (not included)
Clip
Barbs
1/4 NPT Threads
1/2” Outside Dia. Copper
Tube (not included)
Cut barbs from drain fitting (pull
clip to remove fitting from valve)
Valve
Drain
Elbow
1-1/2”
Air Gap
FLOOR
DRAIN
Overflow
Drain
Elbow
Brine Tank
Overflow
Hose*
Secure Valve Drain Hose
in place over Floor Drain
Valve
Drain
Hose
*Do not connect the water
softener valve drain hose to
the brine tank overflow hose.
